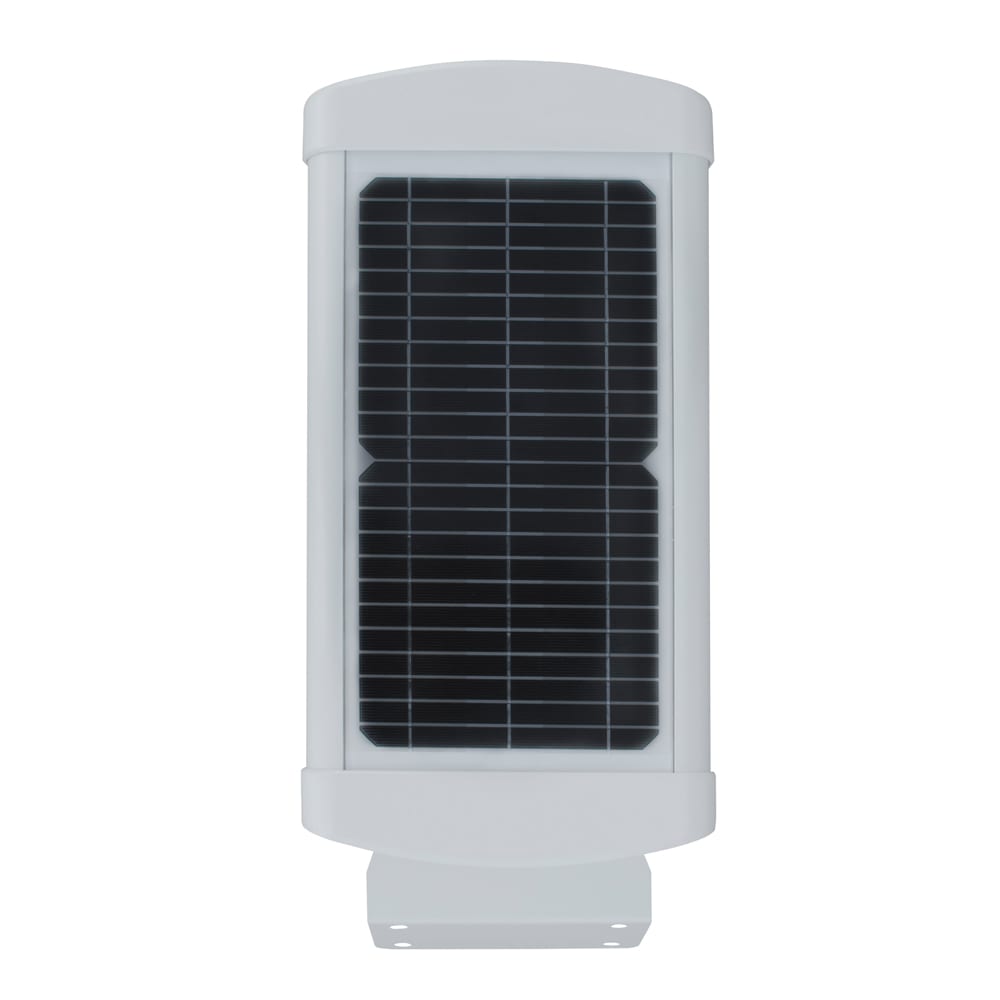

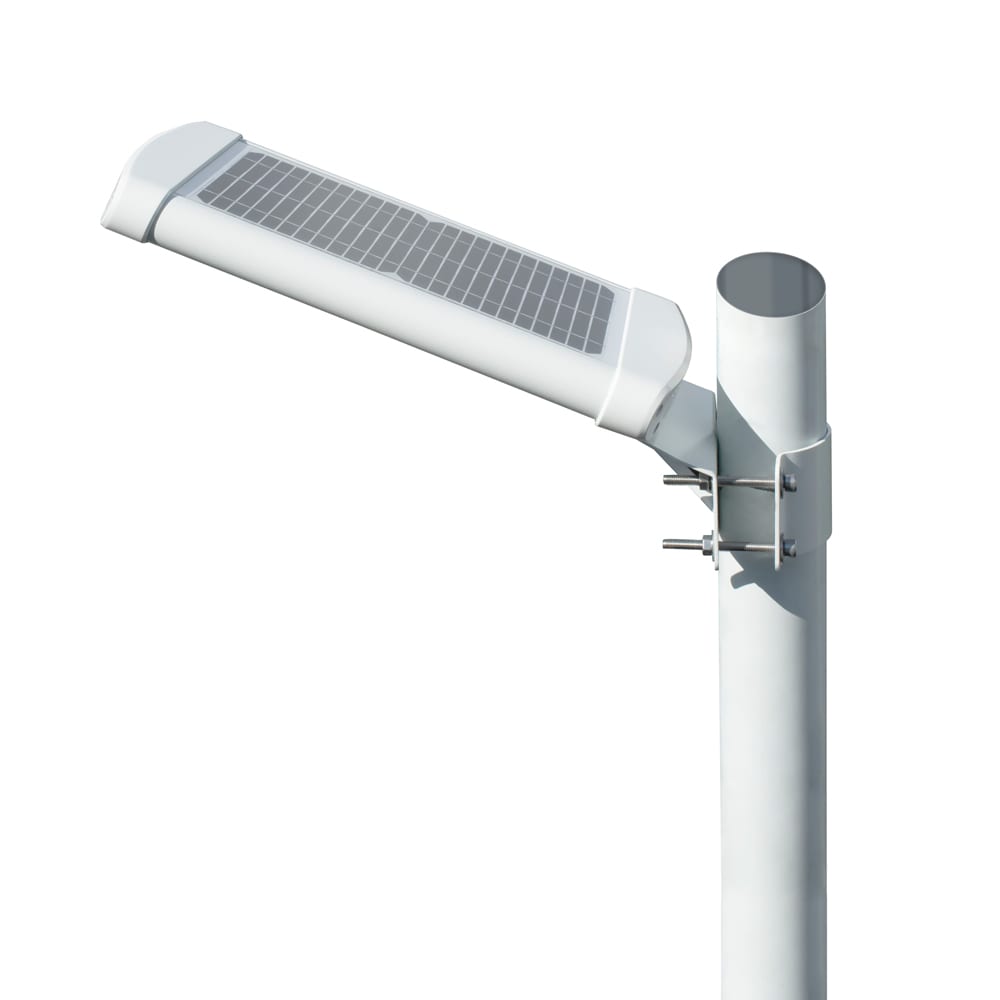

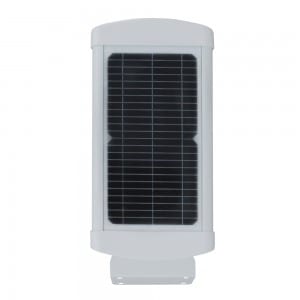

10W All in one solar LED Street Light

Short Description:

  • Power: 10W
  • High efficacy 110-120lm/w
  • Brief Description: 10W all in one Solar LED Street Light
  • Type: Street lights, Garden lights
  • Mounting Height: 3-4 meters
  • Net Weight: 4.4 kg
  • LED Lumen: 1000-1500LM
  • Applications: gardens, streets, roads, community, parks, parking etc..
  • LED Lifespan: >50000H
  • Warranty: 5years

  • Shipping Port: Shenzhen
  • Description: All in one solar LED Street Light
  • Model: LL-ASSL4-10W
  • Product Detail

    Product Tags


    1. Original design of all in one solar led street light.

    2. Powered by solar energy.
    3. Artistic appearance, smart APP control, easy installation.
    4. Constantly absorb solar energy in daylight and convert to electricity.
    5. Intelligent controller can precisely control charge, discharge and preserve   electricity into lithium battery.
    6. With functions of time control, light control, PIR infrared sensing and smart phone APP control all in one.
    7. LED Lifespan: >50000H
    8. Warranty: 5years


    Model NO.  LL-ASSL4-10W
    LED Chipset  3030 LED
    Chipset Q'ty  30PCS
    Light Efficiency  110-120LM/W±10LM
    Lumen  1000-1500LM
    Color Temperature  3000K-6500K
    CRI >70
    LED Lifespan 50000H
    Electrical characteristic Rated Power 10W
    Solar Panel Power 18V/15W
    Lithium Battery 12V 53.3WH
    Charge Time 6-8H
    Discharging Time > 36H
    Working Temparature  -30℃~+60℃
    Switch Threshold 15LUX
    Max sensing Distance ≦12M
    Mechanical Specification Light body size 730*225*50mm
    Net Weight 4.4 kg
    Mounting Height 3-4 M
    Pole Installation Distance 5-10 M
    Packing Information Q'ty/carton 1 set / carton
    Carton Size 555*300*115mm
    Gross Weight 5.3 kg

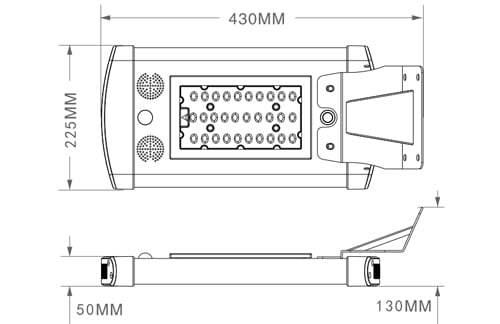

    all in one solar street light size

    Unit: mm

    All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.

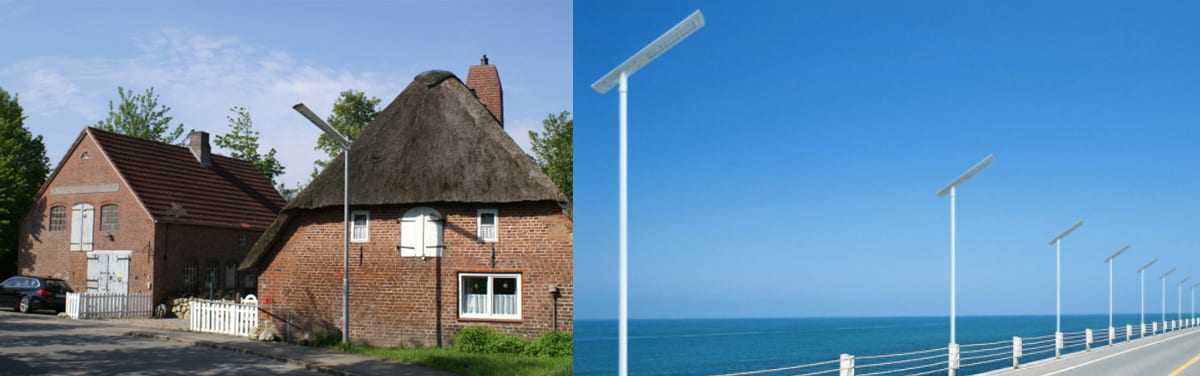

    Solar led street light application
