120W all in one solar led street light

Short Description:

  • High efficacy 130LM/W.

  • Brief Description: 120W all in one Solar LED Street Light.
  • Type: Street lights, Garden lights.
  • Mounting Height: 9-12 meters.
  • Net Weight: 23.8KG.
  • LED Lumen: 15600-18000LM.
  • Applications: gardens, streets, roads, community, parks, parking etc.
  • LED Lifespan: >50000H.
  • Warranty: 5years.


  • Shipping Port: Shenzhen
  • Description: Led Solar Street Lamp
  • Model: LL-ASSL5-120W
  • Product Detail

    Product Tags

    Features:

    1. Original design of all in one solar led street light.
    2. Powered by solar energy, eco-friendly and no electricity charges.
    3. DC12V power supply system, more safe than commercial electricity.
    4. All components including solar panel, batter packing and controller are entirely produced and test by our own workshop, which make quality control better.
    5. Choosing raw materials from major brand supplier, such as Philips chipset.
    6. Artistic appearance, easy installation.
    7. With detachable battery storeroom, easier to replace battery or controller. There is no need to disassemble the fixture.
    8. Warranty: 5years.

    Specification:

    Model NO.  LL-ASSL5-120W
    LED Chipset  PHILIPS 5050
    Chipset Q'ty  126PCS
    Light Efficiency  130LM/W±10LM
    Lumen  15600-18000LM
    Color Temperature  2800K-6500K
    CRI >70
    LED Lifespan 50000H
    Electrical characteristic Rated Power 120W
    Solar Panel Power 18V/105W
    Lithium Battery 11.1V/ 808WH
    Charge Time 7 Hours with good sunshine.
    Discharging Time 3-10 rainy days, 12hours per night.
    Or you can set a fixed lighting time.
    Working Temparature  -25℃~+65℃
    Switch Threshold 15LUX
    Max sensing Distance ≦12M
    Mechanical Specification Light body size 1965*360*270mm
    Net Weight 23.8 kg
    Mounting Height 9-12M
    Pole Installation Distance 27-33M
    Packing Information Q'ty/carton 2 sets / carton
    Carton Size 1005*435*400mm(2PCS)
    Gross Weight 51.5kg

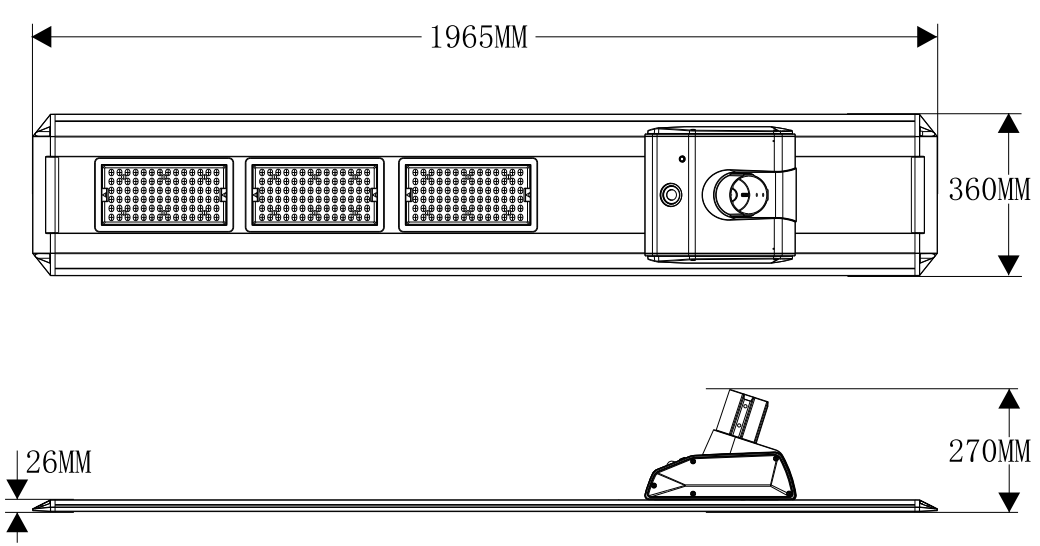

     Size:

    120W

    Unit: mm

    Application:

    All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.

    6W Solar Street Lighting application
