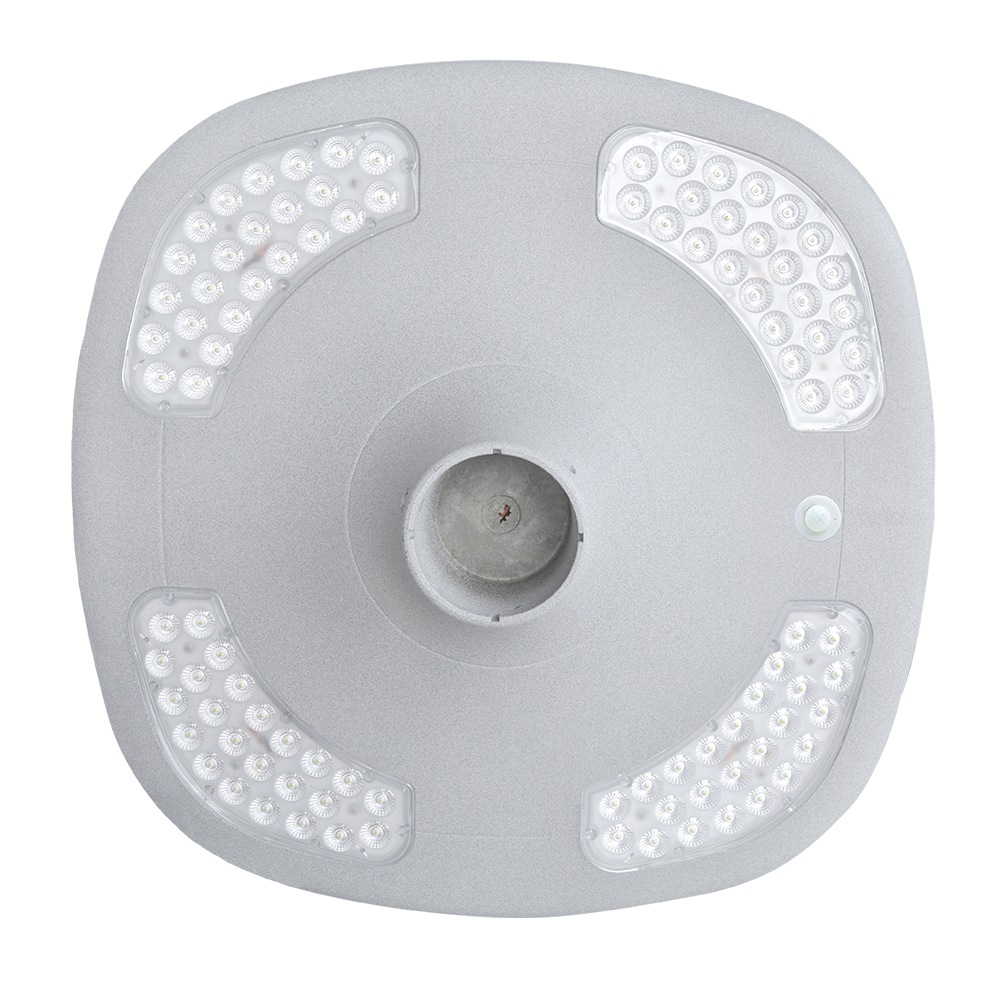

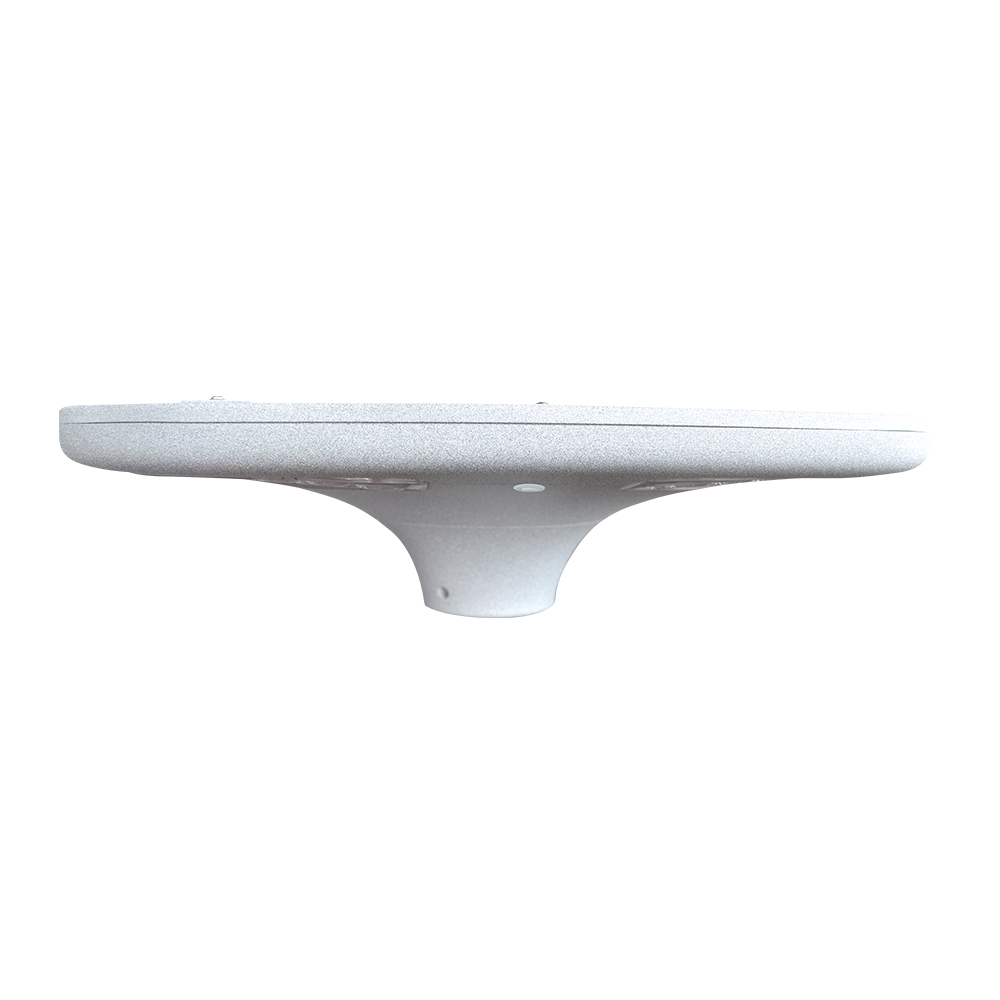

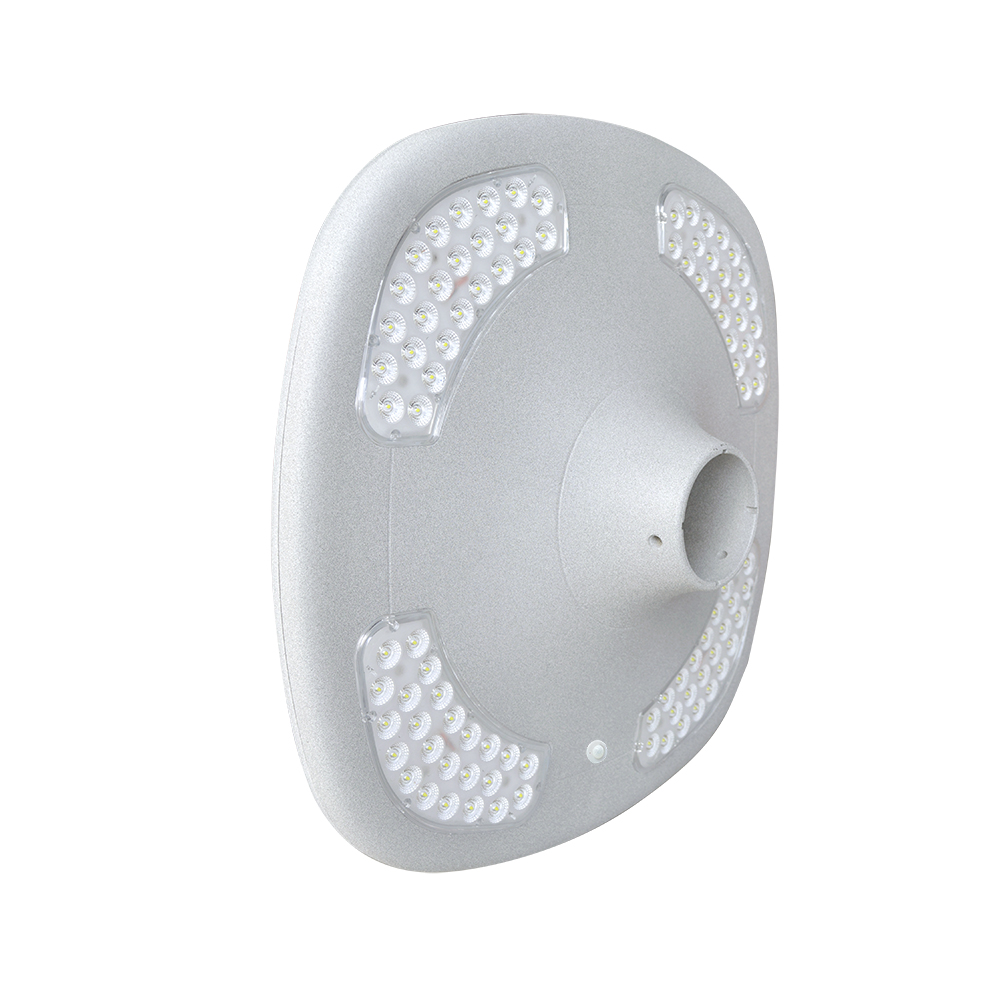

30W UFO all in one solar LED Garden Street Light

Short Description:

  • Raw material: Aluminum + Steel glass
  • High efficacy: 130-150lm/w.
  • Brief Description: 30W UFO all in one solar LED Garden Street Light
  • Type: Street lights, Garden lights
  • Mounting Height: 3-5 meters
  • Net Weight: 4.8 kg
  • LED Lumen: 3900-4500LM
  • Applications: gardens, streets, roads, community, parks, parking etc..
  • LED Lifespan: >50000H
  • Warranty: 5years

  • Shipping Port: Shenzhen
  • Description: 30W UFO all in one solar LED Garden Street Light
  • Model: LL-ASSG-30W-01
  • Product Detail

    Product Tags


    The integrated solar street lamp integrates solar panel, LED light source, lithium battery, charge and discharge controller, infrared sensor and die-cast aluminum lamp shell as a whole, combining photoelectric conversion, constant current control, MPPT controller, infrared human sensing, mobile phone Bluetooth APP intelligent control and other practical control technologies. The overall structure is simple and elegant, easy to install and maintain, wide range of application.


    Model NO.  LL-ASSG-30W-01
    LED Chipset SMD3030
    Chipset Q'ty 96 PCS
    Light Efficiency 130-150LM/W±10LM
    Lumen 3900-4500LM
    Color Temperature 2800K-6500K
    CRI >70
    LED Lifespan 50000H
    Electrical characteristic Rated Power 30W

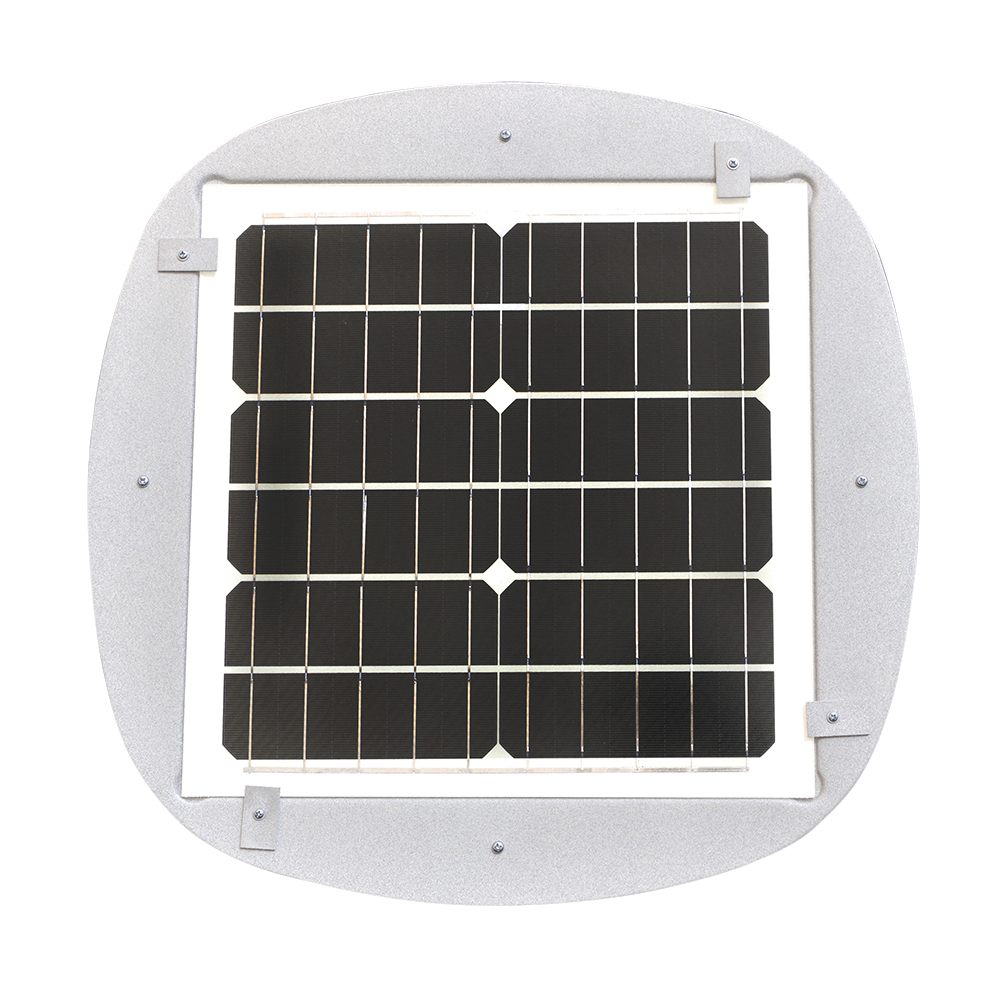

    Solar Panel Power 20W/mono
    Lithium Battery 10.4AH/7.4V
    Charge Time 6-8 H
    Discharging Time > 36H
    Working Temperature -25℃~+65℃
    Switch Threshold 15LUX
    Max sensing Distance ≦12M
    Mechanical Specification Light body size 485*485*125mm
    Net Weight 4.8 kg
    Mounting Height 3-5 M
    Pole Installation Distance 9-15m for one-side road lighting; 20-30m for both-side road lighting
    Packing Information Q'ty/carton 1 set / carton
    Carton Size 520*520*160mm
    Gross Weight 6.1 kg



    Unit: mm


    All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.
