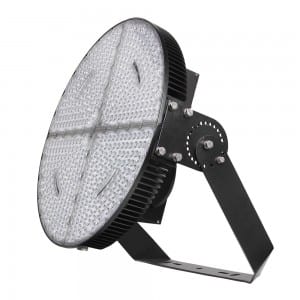

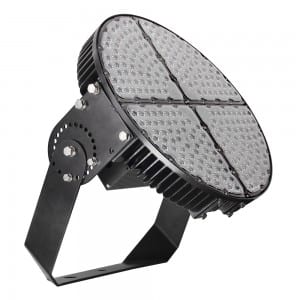

1000W Stadium Lighting Flood Light 1000w Led Light For Football Court for Football Field Basketball Court Baseball Field Arena Lighting Replacing 2000W HPS

Short Description:

  • Philips chipset

  • Meanwell driver
  • 10KV surge protector
  • Heavy duty die-cast aluminum housing
  • IP65 rated for wet locations
  • Fully sealed to be dirt and bug proof
  • High quality tempered glass optics
  • 5 years warranty.


  • Shipping Port: Shenzhen
  • Description: Stadium Flood Light
  • Model: LL-PX1000
  • Product Detail

    Product Tags

    LED-STADIUM-LIGHT-500W

    Description:

    Lowcled Lighting is powerful LED high mast light is designed to replace high power traditional lighting products, such as Metal Halide, High Pressure Sodium light, High Intensity Discharge Lamp, etc., available in 400W, 600W, 500W, 800W, 1000W, 1200W, 1600W, replacing MH/HPS/HID from 600W to 4000W. The light output is up to 150lm/w, more energy-saving than ever.

    The compact design makes shipping and installation much easier. And excellent thermal management with cold-forging heat sink and unique heat dissipation structure makes it much better cooling system than other competitives, enables longer lifespan, almost free of maintenance.

    LED-stadium-light-Certifications

    Features:

    1. Lowcled stadium light is perfect for all kind of sports stadiums. The superior light output, reduced energy usage and possibility the use the existing infrastructure make a perfect match with many sport club’s policies.
    2. This 1000 Watt LED sports light is ideal when you need to light up large areas. It easily replaces 2000 Watt metal halide lights.
    3. High Protection Level up to IP67: Light engines and driver compartment are sealed to protect LEDs, electrical components, and terminal block against dust and moisture, increasing reliability and extending lifespan.
    4. High Impact Resistance: Meets IK08 mechanics impact protection code.
    5. Anti 17-level Wind Power: Fixture’s Low profile and pin structure effectively reduce wind load, plus light weight and high mechanics strength, the fixture has strong ability of anti-wind.
    6. High Vibration Resistance: Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.
    7. Surge Suppression Protection: Optional 20KV SPD for adding an additional layer of protection for the light.
    8. 50,000 houe.rs lifetime

    Specification:

    Model LL-PX1000
    Power 1000W
    Input Voltage 100-277VAC
    Input Current 4.85*4
    Frequency 50/60Hz
    Power Factor ≥0.9
    Total Harmonic Distortion <20%
    Color Temperature 3000-6500K
    Luminous Flux 150000lm
    Luminous Efficacy 150 lm/w
    CRI >70
    Beam Angle 25°
    LED Quantity 480
    Light Transmittance 0.92
    IP Level IP65
    Operating Temperature -40~40℃
    Preservation Temperature -40~90℃
    Lifespan 50,000h
    Net Weight 32.2 kg
    Gross Weight 34.3 kg
    Carton Size 855*675*260mm

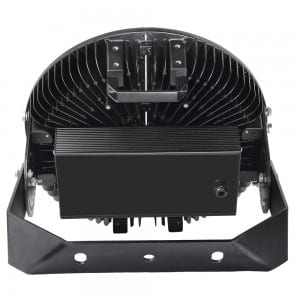

    Extraordinary Thermal Management

    The professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs.

    Advantage of our pin heatsink: Incoming air from any direction moves approximately straight forward through the pins, bringing away heat quickly. Comparing to other typical radiant-fin heatsink, incoming air is deflected and slowed down by the radiant fins, moving heat slowly.

    High-Mast-Light-Heat-dissipation



    Size:

    Stadium Lighting 1000W SIZE

    Unit: mm

    Application:

    Stadium Flood Light is widely used at factory, tunnel, underground mine, school, hospital, parking lot, warehouse, square, supermarket, courtyard and so on.

    stadium flood light application
