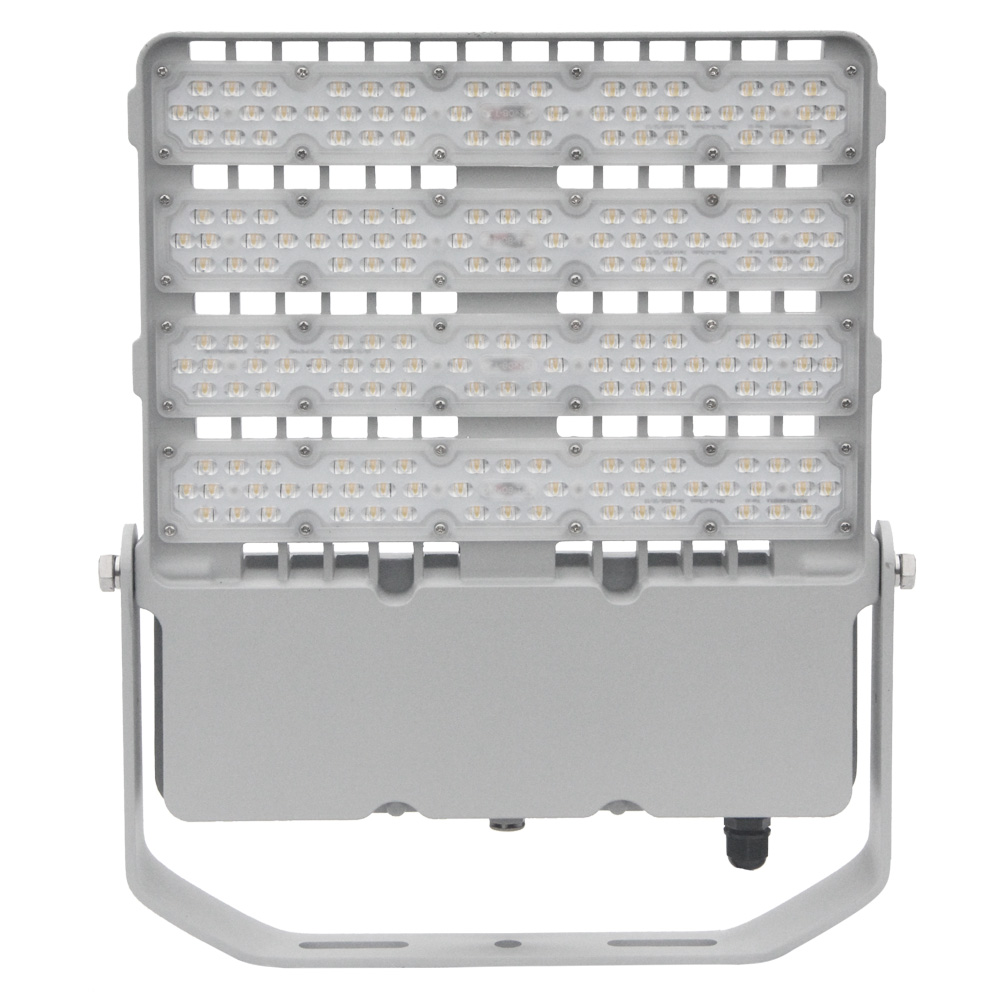

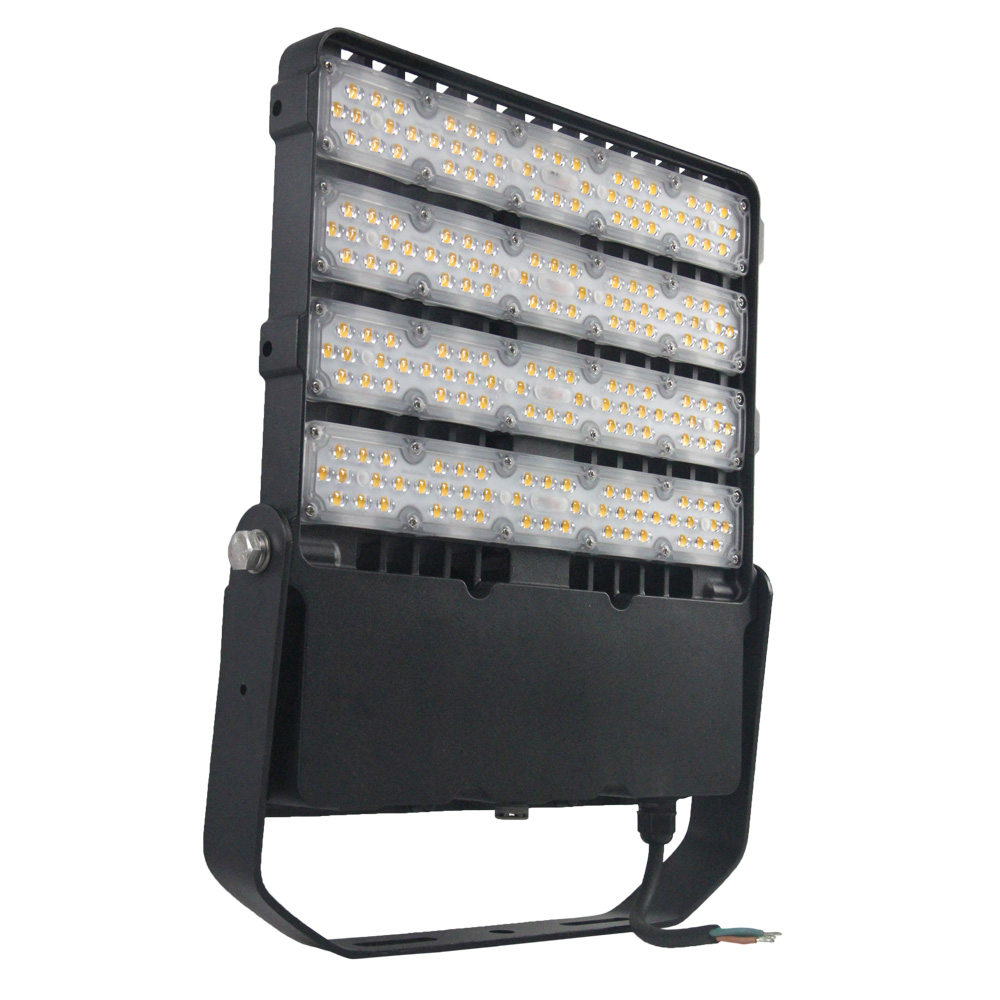

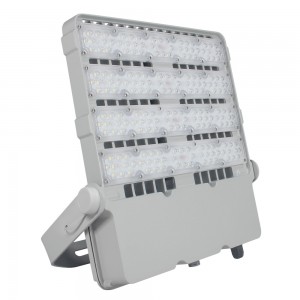

200W LED Flood light

Short Description:

  • Power:200W

  • Using high quality Philips chips.
  • Driver: Meanwell
  • High efficacy,120lm/w.
  • Universal voltage AC100-240V 50/60Hz.
  • High Power Factor >0.9, Low THD Driver.
  • Dust-proof and waterproof, IP66.
  • 5 years Warranty.


  • Shipping Port: Shenzhen
  • Item: 200W LED Floodlight
  • Model: LL-FLFP-200W
  • Product Detail

    Product Tags

    Description:

    1. Power: 50W~200W.
    2. Integrated die-casting design, integral structure waterproof IP66.
    3. The honeycomb heat dissipation design can enhance the structural strength and prevent light leakage, so as to avoid light pollution caused by stray light.
    4. The optical angle is 30 ° 60 ° 90 ° 80 * 140 ° and other angles are optional. The whole lamp is anti glare.
    5. Support angle design, easy for construction and installation.
    6. The cavity of the driving power supply is IP67 protection grade. The power supply and the floodlight housing are designed to fit each other, increasing the cooling area of the power supply and extending Service life of power supply.
    7. There is no stroboscopic, no delay in starting, and the disadvantages of traditional street lamps are eliminated.
    8. The bracket angle is adjustable from 0 to 180 °.
    9. Perfect combination of wind energy. Advantages of LED energy saving and environmental protection.
    10. Professional outdoor surface treatment of lamps, adding metal powder, improving heat dissipation effect, frosting texture. Meeting salt spray test 48 hours of qualified requirements. Meeting the solar radiation lamp test continuous irradiation 28 days of qualified requirements.

    Specification:

    Model LL-FLFP-200W
    Power 200W
    Input(Frequency) AC100-240V(50/60Hz)
    Lumen 24000lm
    Efficacy 120lm/w
    PF >0.9
    LED Type Philips 3030
    Driver Meanwell
    CCT(K) 3000K / 4000K / 6000K
    CIR(Ra) ≥80
    Beam angle 30 ° 60 ° 90 °  80*140 °
    Collision protection level IK08
    Working Temperature -40℃ ~ 50℃
    Working Humidity 10% ~  90%
    Storage Humidity 10% ~  90%
    Working Temperature -40℃ ~  70℃
    Life span of Light Source ≧50000 H
    IP Grade IP66
    Body Materials Aluminum+PC
    Housing Color Black/Gray
    Warranty 5years

    Features:

    • High system efficacy up to 120LM/W, superior illumination performance
    • Optimized weight and size due to compact design
    • PC lens protects fixture from moisture, dirt, and bugs
    • 3000K, 400K, 4500K , 5000K and 6000K CCT
    • Environmentally friendly powder coatings
    • Reduces energy consumption over 80%

    Housing & Finish

    • Die-casting Aluminum heat sink
    • RAL & custom colors available

    Optics

    • Beam Angel: 30 °/ 60 ° /90 °  /80*140 °  with uniform distribution.



    Compliance

    • LM-79 & LM-80 test reports
    • CE & RoHS available

    Ratings

    • L70>100,000 hours at 25℃(Tc), compliant with IESNA TM-21
    • Operating Temperature Rated at -40°C to 50°C
    • Storage Temperature Rated at -40°C to 70°C
    • Working Humidity: 10% ~  90%
    • Storage Humidity: 10% ~  90%

    Warranty

    • 5-year limited system warranty
    * Please refer to LOWCLED warranty term for complete information.

    Light Distribution Curve
    Distribution curve

    Our advantages:MEANWELL-DRIVER





    Meanwell driver

    ● We use MEANWELL driver as one of most important components.
    ● Long warranty: 5years warranty.
    ● IP Grade: IP67.

    LED Chipset

    ● Hight quality original Phililps 3030 chipset.
    ● High ra: 80.
    ● High lumen efficacy.
    ● Long lifespan: >50000H.

    PHILIPS 3030

    黑框 50W

    Housing

    ● Perfect combination of wind energy. Advantages of LED energy saving and environmental protection.
    ● Bracket: Adjustable angle ranges from 0° to 180°.
    ● Integrated die-casting design, integral structure waterproof IP66.

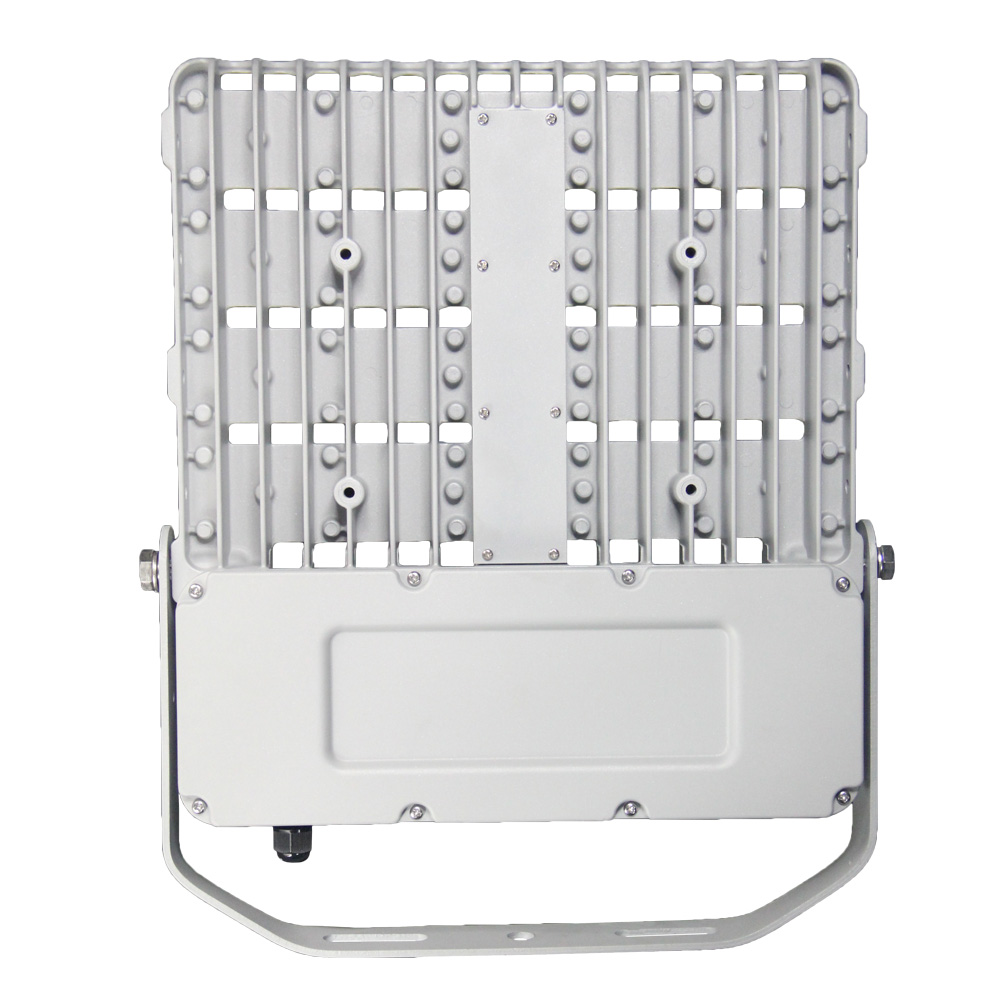

    ● The honeycomb heat dissipation design can enhance the structural strength and prevent light leakage, so as to avoid light pollution caused by stray light.
    ● The optical angle is 30 ° 60 ° 90 ° 80 * 140 ° and other angles are optional. The whole lamp is anti glare.
    ● The cavity of the driving power supply is IP67 protection grade. The power supply and the floodlight housing are designed to fit each other, increasing the cooling area of the power supply and extending Service life of power supply.



    Application:

    Lowcled led flood light is widely used at Football Stadium,Gymnasium, Harbor, Tunnel, Architectural, Square. Ideal for illuminating building facade, large trees, walls, industrial yard, recreational area, and other general purpose area application.

    led floodlight application
