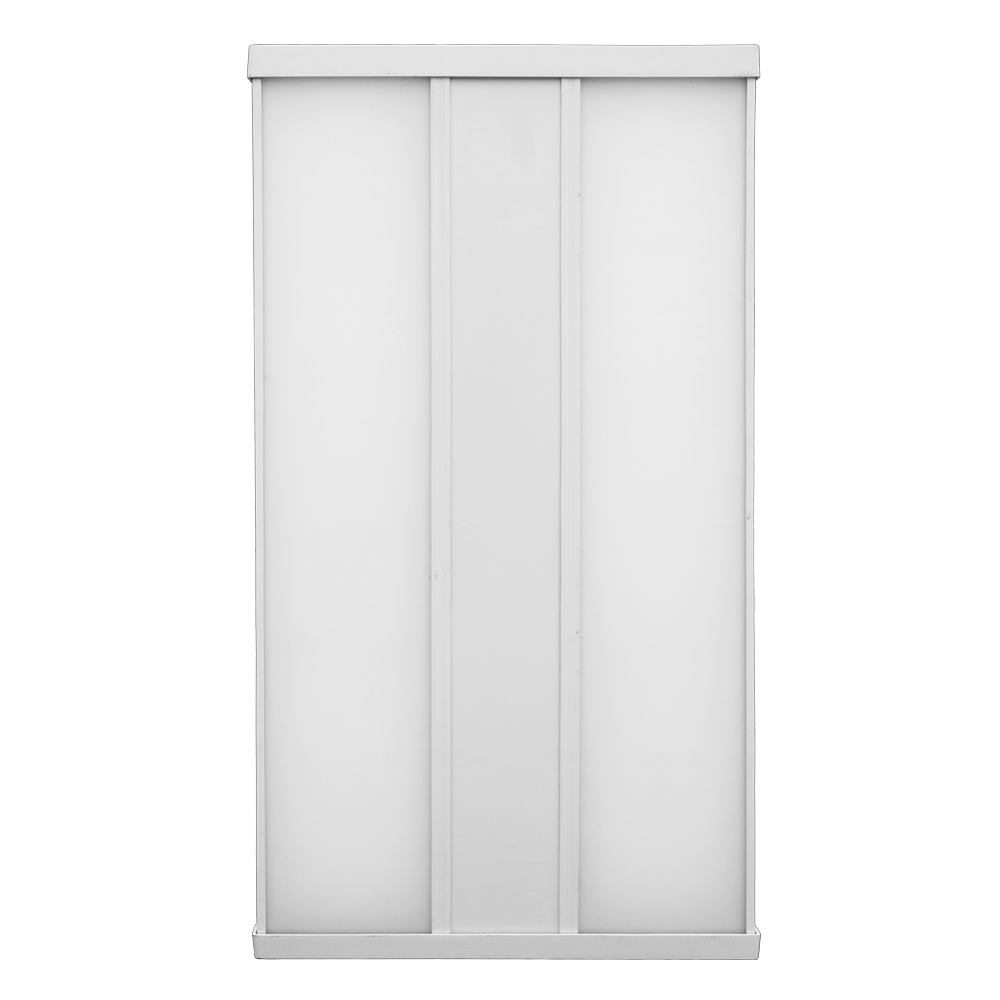

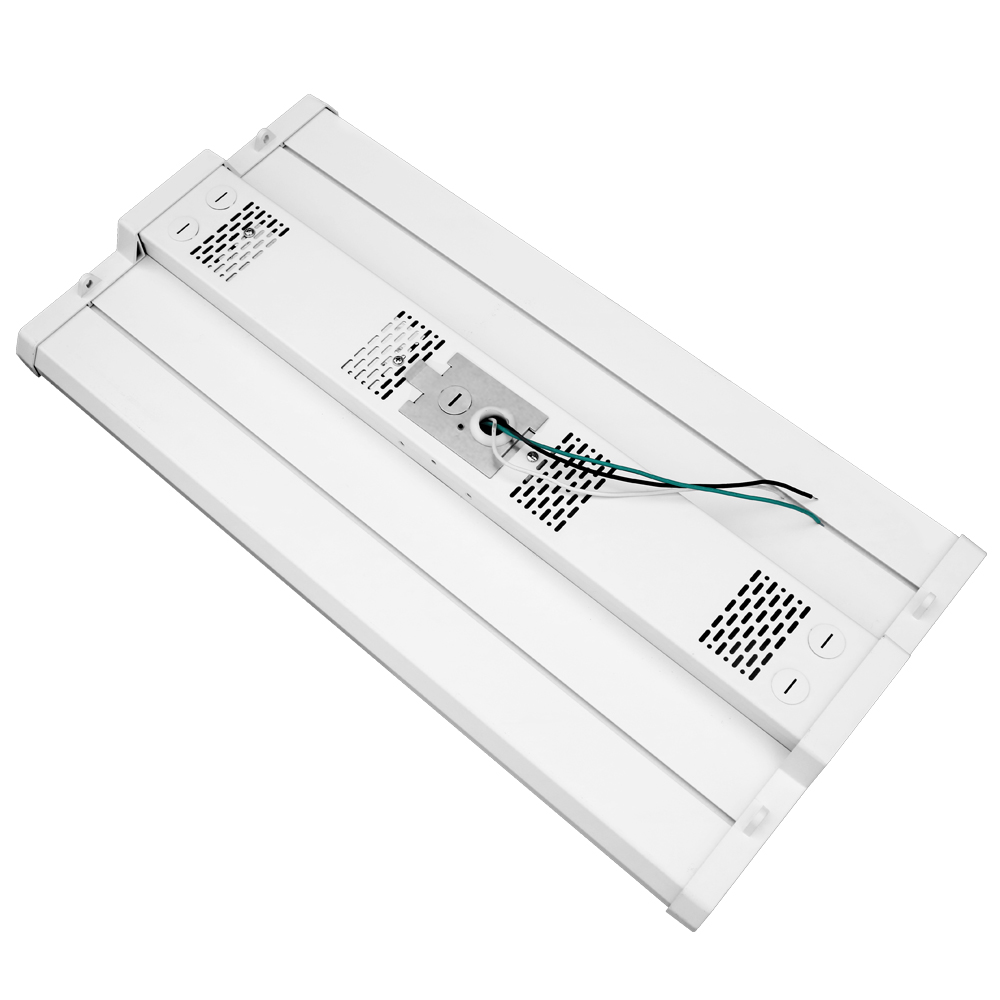

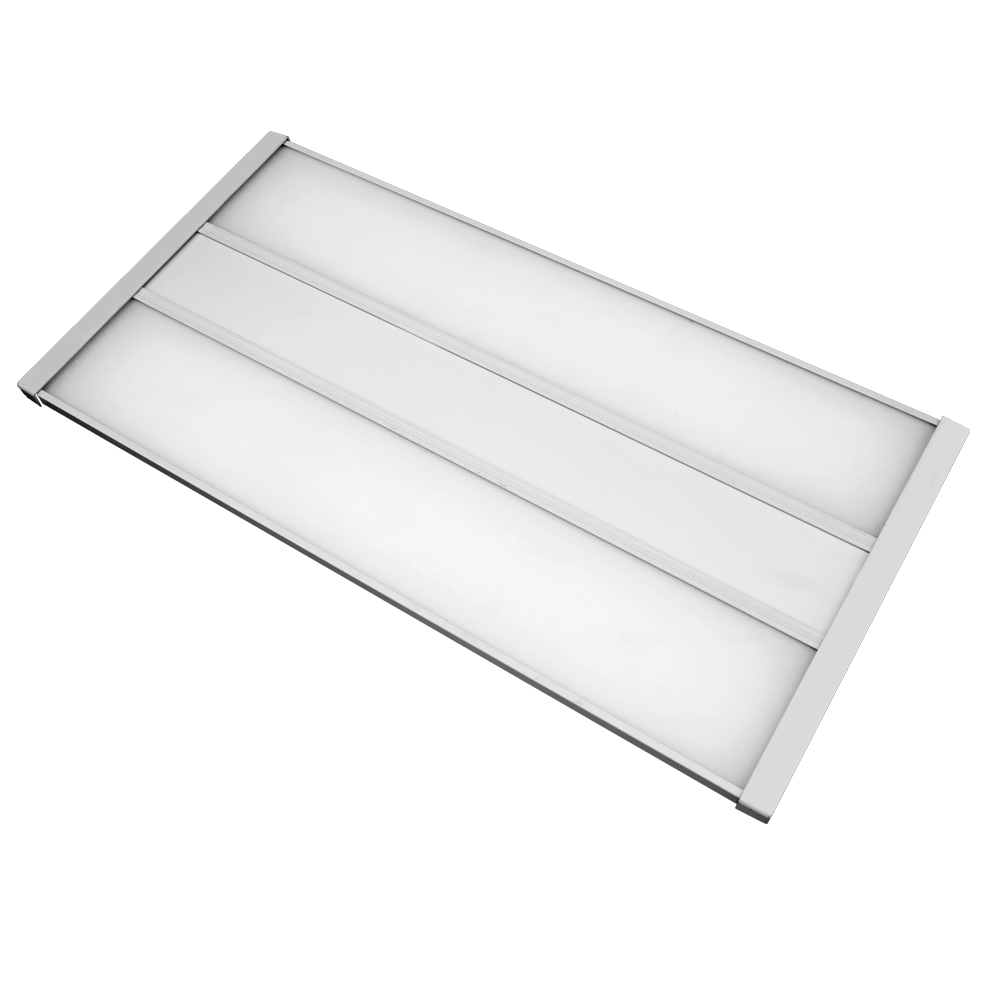

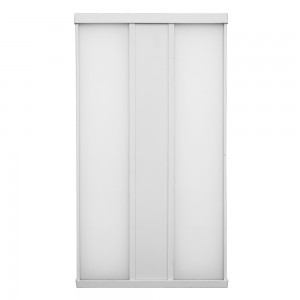

200W Linear High Bay Light

Short Description:

High efficacy,130lm/w.
100W-400W available.
Uniform lighting effect.
Quick starting. No stroboscopic effect; no glare.
High heat-sink efficiency: use thermal column to help heat sink.
No mercury or lead; environmental protecting.
Save 60% energy than conventional light. Green technology conforms to the rule of RoHS.
5 years warranty.

Shipping Port: Shenzhen

Description: 200W Linear High Bay Light

Model: LL-LHB-200W

Send email to us

Product Detail

Product Tags

Features:

Lowcled LED linear high bay light series adopts high quality Philips LED chipset.
Universal Constant Current Voltage 100-240VAC, 50/60Hz.
Optical lens in 120°, fit with different application.
1-10v dimming,and high bay sensor with photocell.
High lumen LM80 listed LED in 130 lm/w, CRI>80 Ra.
Collision protection level: IK08.
Whole series in 100~400W, high wattage industrial lighting is available.
High efficient driver providing 5 years warranty.
Power factor is >0.9.
Temperature of Working Condition: -40℃+45℃.
50,000 hours lifetime.

Specification:

Model	LL-LHB-200W
Power	200W
LED	PHILIPS
Driver	Meanwell
Luminous Flux	26000lm
Luminous Efficacy	130 lm/w
Input Voltage	100-240VAC
Frequency	50/60Hz
Power Factor	≥0.95
Total Harmonic Distortion	＜20%
Color Temperature	3000/4000/5700/6500K
CRI	>80
Beam Angle	120°
IP Level	IP54
Raw Material	ADC12/AL6063
Lifespan	50,000h
Dimension	L615W319H59mm
Weight	4.3 kg
Q‘ty/Carton	1 pcs
Gross Weight	4.9 kg

Purchase information:

Key specifications: 200 W · 26000 lm · IP54 · 120° · 3000/4000/5700/6500K · 50,000h.

Model	LL-LHB-200W
Warranty	5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

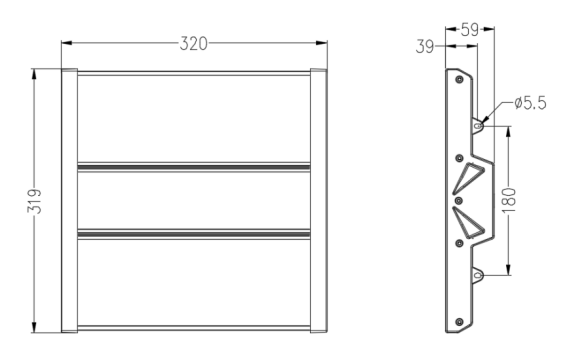

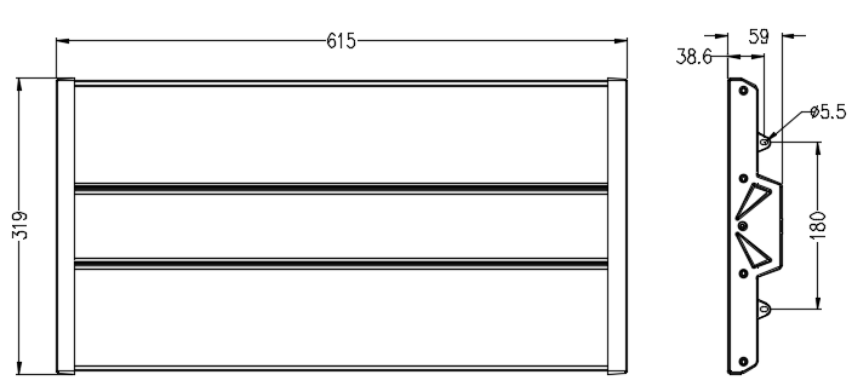

Size:

Unit: mm

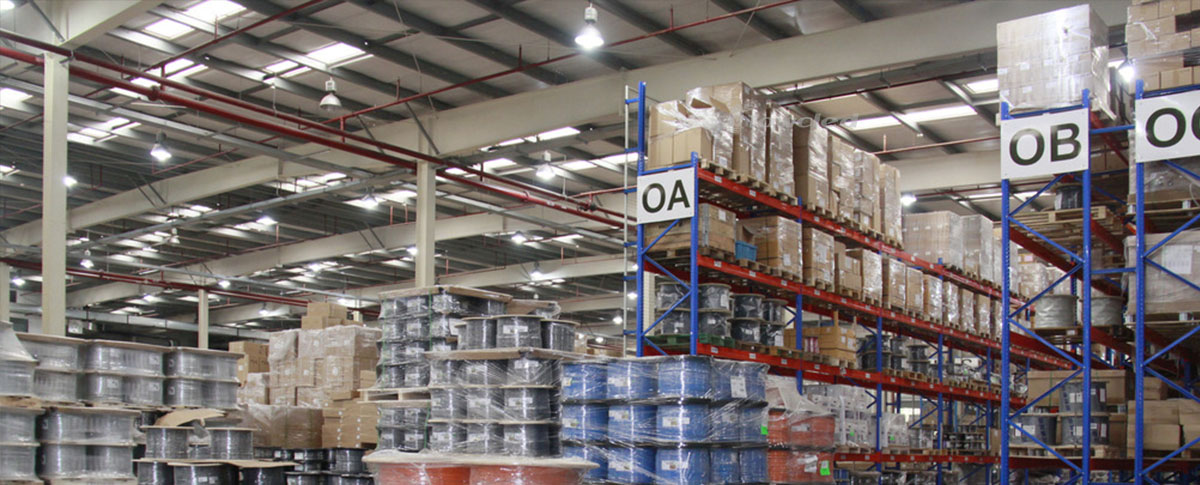

Application:

LOWCLED Linear LED High Bay Light is widely used for Factories, mines, oil, chemical workshops, storerooms, highway toll stations, gas stations, supermarkets, airport, exhibition Hall and other inflammable and explosive places for lighting.
