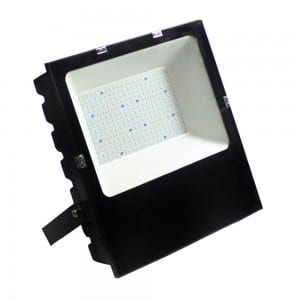

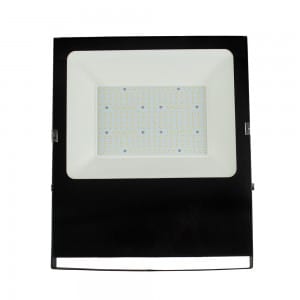

200W Outdoor Led Flood Light Floodlight Black LED Garage Light Fixture IP65 Waterproof
Description:
Lowcled 4S LED Flood Light delivers exceptional illumination performance over 130 or 150 lumen per watt by using top level LED light sources.
Compared to traditional Halogen and metal halide, they consume up to 90% less energy, significantly reducing operating costs.

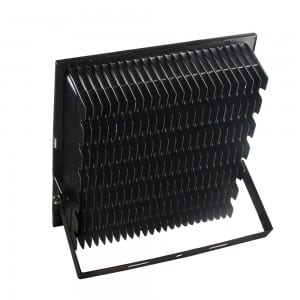

Constructed with high quality thermal heat sinks dissipate the LED heat and insure reliable 100,000-hour LED lifespan.
Housing is sealed against moisture and environmental contaminants.
The 10, 20, 35, 50, 70, 100, 150, 200, 240 and 300-watt luminaires are at your choice.
Features:
- Lowcled LED Flood Light 4S series adopts high quality SMD2835 LED chipset.
- Universal Constant Current Voltage 100-277VAC, 50/60Hz.
- The structural design with high strength, high efficient reflector and tempered glass shape can ensure product heat dissipation, water resistance, impact resistance and other comprehensive performance.
- Power factor is ≥0.9.
- Temperature of Working Condition: -40℃+45℃.
- 270degree rotate bracket.
- Sealing with glue, the protection grade is IP65. Installing with breathing valve, which can clean up the moisture inside of lamp and keep balance of pressure difference between lamp inside and outside.
- 50,000 hours lifetime
TL;DR — 200 W Outdoor Led Flood Light Floodlight Black LED Garage Light Fixture IP65 Waterproof: 200 W · 26000 lm · 130 lm/W · IP65 · 120° · 3000K / 4000K / 6000K · ≥ 50000 H. Warranty: 5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS, SASO, ETL, DLC and SAA certified. OEM/ODM available — email [email protected] for factory-direct pricing.TL;DR — quick summary:
| Model | LL-FLX-200W-4S-01-130 | LL-FLX-200W-4S-01-150 |
| Power（±10%） | 200W | |
| Input(Frequency) | AC 100-277V（50/60Hz） | |
| Lumen | 26000lm | 30000lm |
| Efficacy | 130lm/w | 150lm/w |
| PF | >0.9 | |
| LED Type | SMD2835 | |
| CCT(K) | 3000K / 4000K / 6000K | |
| CIR(Ra) | ≥70 | |
| Beam angle | 120° | |
| Working Temperature | -40℃～45℃ | |
| Humidtity of Working Condition | 20%-90% | |
| Life span of Light Source | ≧50000 H | |
| IP Grade | IP65 | |
| Body Materials | Aluminum+Glass | |
| Product Dimension(L*W*H) | 380*350*97mm | |
| Net Weight | 5.4 kg | |
| Box Size | 450*390*125mm | |
| Gross Weight | 5.9 kg | |
| Carton Size | 450*390*125mm | |
| Q’ty/Carton | 1 pcs | |
| Gross Weight/Carton | 5.9 kg | |
Purchase information:
Key specifications: 200 W · 26000 lm · 130 lm/W · IP65 · 120° · 3000K / 4000K / 6000K · ≥ 50000 H.
| Model | LL-FLX-200W-4S-01-130 |
| Warranty | 5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting |
| Samples | Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS |
| Payment | T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000 |
| MOQ / lead time | Quoted per model and configuration — email [email protected] |
Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS, SASO, ETL, DLC, SAA). Purchase terms: see the purchase FAQ.
Frequently asked questions:
What is the MOQ for this flood light, street light or area light model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.
What is the lead time for this flood light, street light or area light model?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.
Which certificates do you provide for the flood light, street light or area light model?
CE, RoHS, SASO, ETL, DLC and SAA as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.
Can you customize this flood light, street light or area light model (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.
What warranty applies to this product?
5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting.
Can this fixture replace my existing metal halide or HPS floodlight?
In most cases yes. Tell us the wattage of the fixture you are replacing and we confirm the LED equivalent model, usually within one working day; the lumens output of each model is listed in the specification table above.
What surge protection does this model have?
Surge protection for this model is listed in the specification table above. If your project requires a specific surge protection level (for example 10KV or 20KV), tell us and we confirm the matching driver version.
Is this fixture DLC listed for utility rebate eligibility?
DLC listing applies to specific model numbers rather than to a whole range. Tell us the project state or the utility rebate programme and we confirm which listed model number applies before you order.
Do you provide IES photometric files and a lighting layout?
IES files and LM-79 reports are available on request for most models. Send the drawing or site plan, pole height, mounting details and the target lux or foot-candle level, and we return a fixture count with a DIALux, Relux or AGi32 layout together with the quotation.
About the manufacturer:
Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS, SASO, ETL, DLC, SAA certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.
What customers say:
— Buyers in Peru and Belgium · Repeat business · LED flood light
— Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia
From our own factory (production, aging test & shipment):
Application:
1. Tunnel, Subway, Underground Lighting;
2. Gymnasium, Sports Stadium Lighting;
3. Building, Billboard Lighting;
4. Gas Station, Garage Lighting;
5. Park, Garden Lighting;
6. Workshop, Factory Lighting;
7. Warehouse, Storage Lighting;
8. Yard, Square Lighting;
9. Road,Highway Lighting;
10. Station,Dock Lighting etc
11. Directly replace the traditional HID light to save energy
