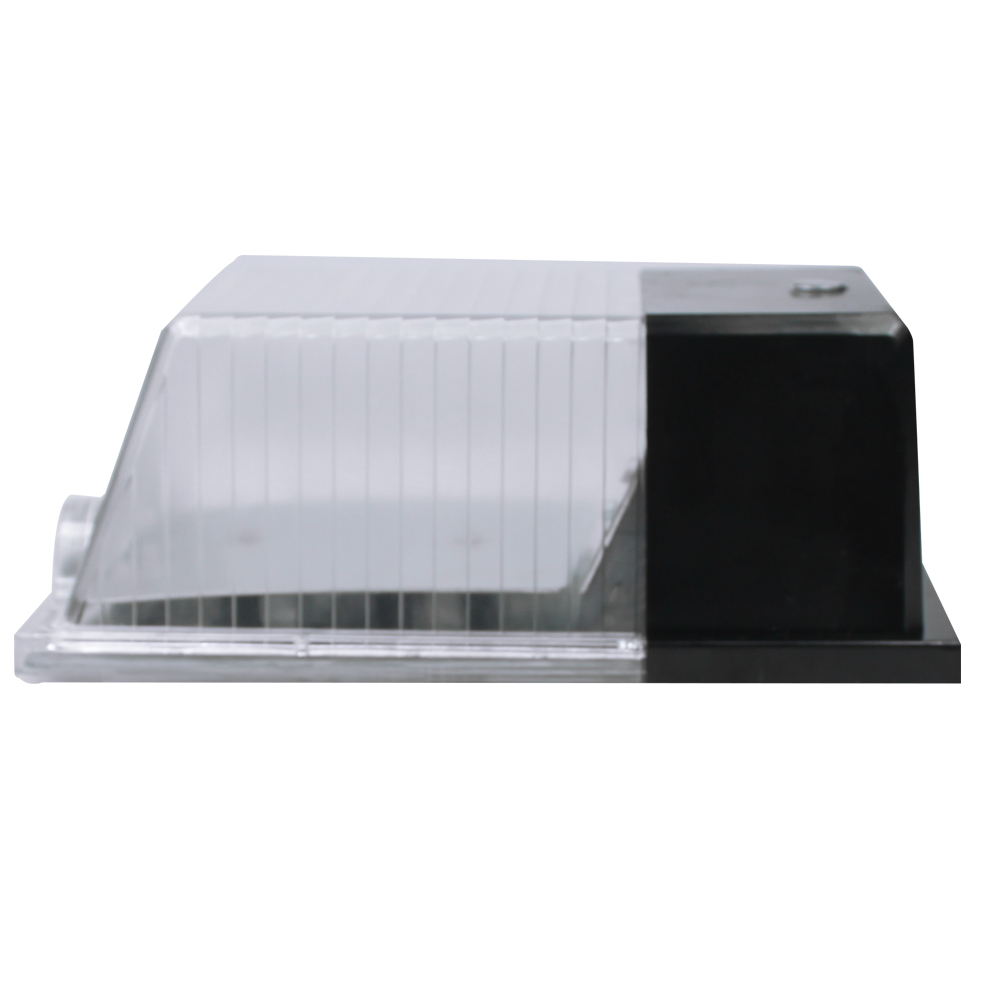

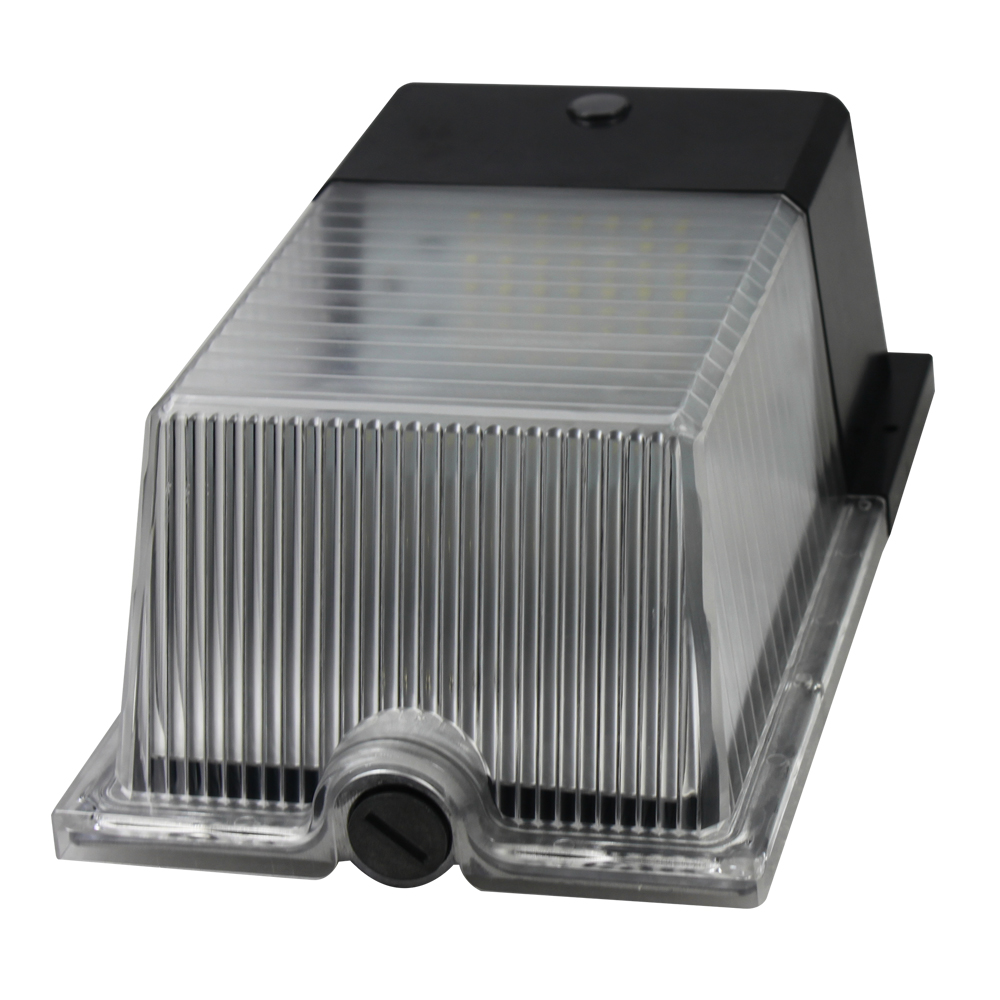

20W 26W 30W mini LED Wall Pack Light

Short Description:

  • Power: 20/26/30W
  • Up to 120lm/w
  • Easy installation
  • With photocell inside
  • Dark bronze, dirt-resistant
  • 5 years warranty

  • Model: LL-MWP-20/26/30W
  • Description: MINI LED Wall Pack Light
  • Shipping port: Shenzhen
  • Product Detail

    Product Tags

    LED outdoor wall packs are designed for commercial and industrial areas to light up building exteriors. Dusk to dawn LED wall packs with photocell and/or motion sensor are used for security lighting for office areas, businesses and warehouses to automatically light up when motion is detected, and turns on when the sun sets. We offer full flood and full cutoff wall pack options. We can even supply High Voltage solutions up to 480V. Our LED Wall Packs and Wall Pack lighting is easy to install providing bright and long lasting outdoor and security lighting business need.

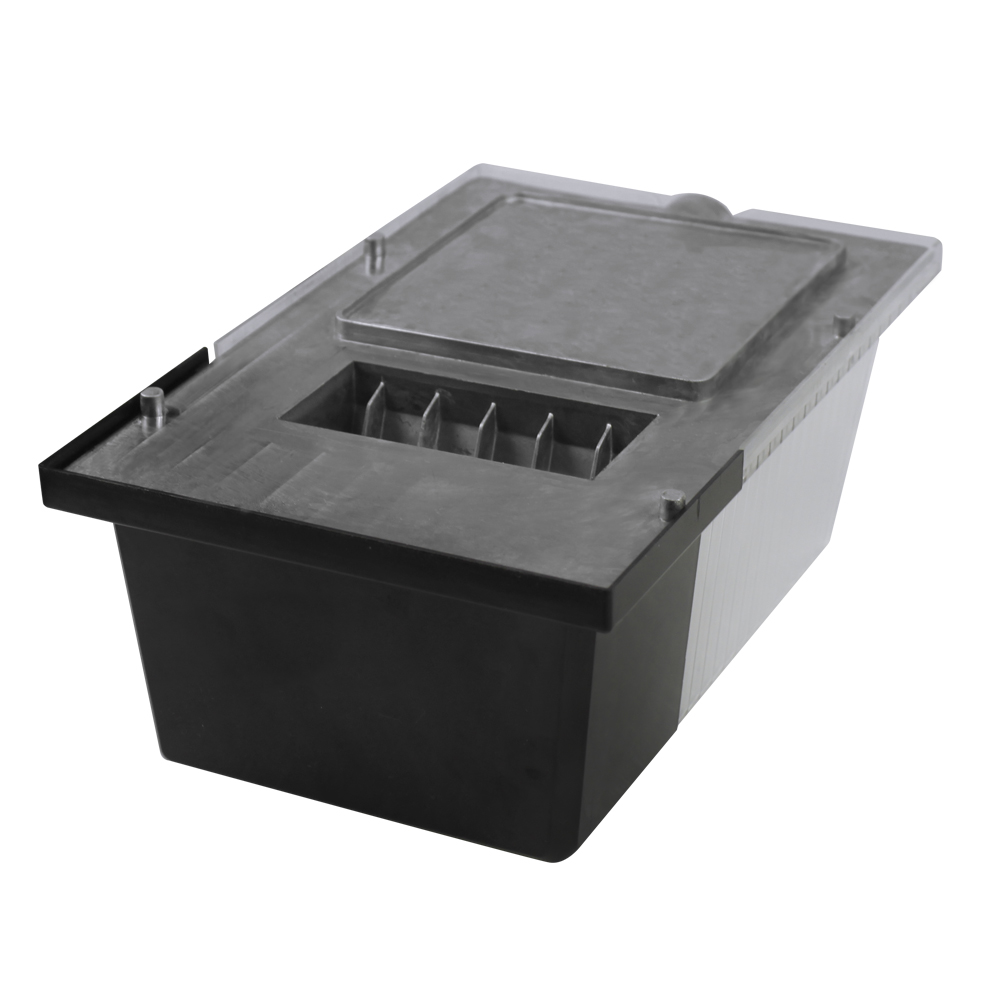

    1. The die-cast aluminum housing after anti-corrosion treatment is heavy duty and reliable.
    2. Polyester powder-coated finish, rush and corrosion-proof.
    3. Anti-glare and UV resistant PC.
    4. Using small driver current, LED package will have a longer lifespan L(70).
    5. Use a unique heat sink design to shorten the thermal passway.


    Model LL-MWP-20W LL-MWP-26W LL-MWP-30W
    Power 20W 26W 30W
    Luminous Flux 2400lm 3120lm 3600lm
    Installation Height 3-4m 3-6m 4-8m
    Input Voltage 100-277VAC
    Frequency 50/60Hz
    Power Factor ≥0.9
    Material ADC12+PC
    Chipset SMD2835
    Housing Color brown
    Color Temperature 3000-6500K
    Luminous Efficacy 120 lm/w
    CRI >70
    Beam Angle 100°
    IP Level IP65
    Operating Temperature -40~40℃
    Storage Temperature -40~90℃
    Lifespan 50,000H
    Warranty 5years
    Product Size 223.95*143.95*85.3mm
    Carton Size 47.5*47*53cm
    Net Weight/Gross Weight 2.4/20.38 kg
    Q'ty/Carton 30 pcs


    mini WP size

    Unit: mm


    The LED Wall Pack light is widely used on walls of Super Market, Hotel, Tavern, Night Club, Disco Hall, Karaoke Room, Coffee House, Bank, Meeting Room, Exhibition Hall, Exhibition Wardrobe, Show Window, Living House etc.
