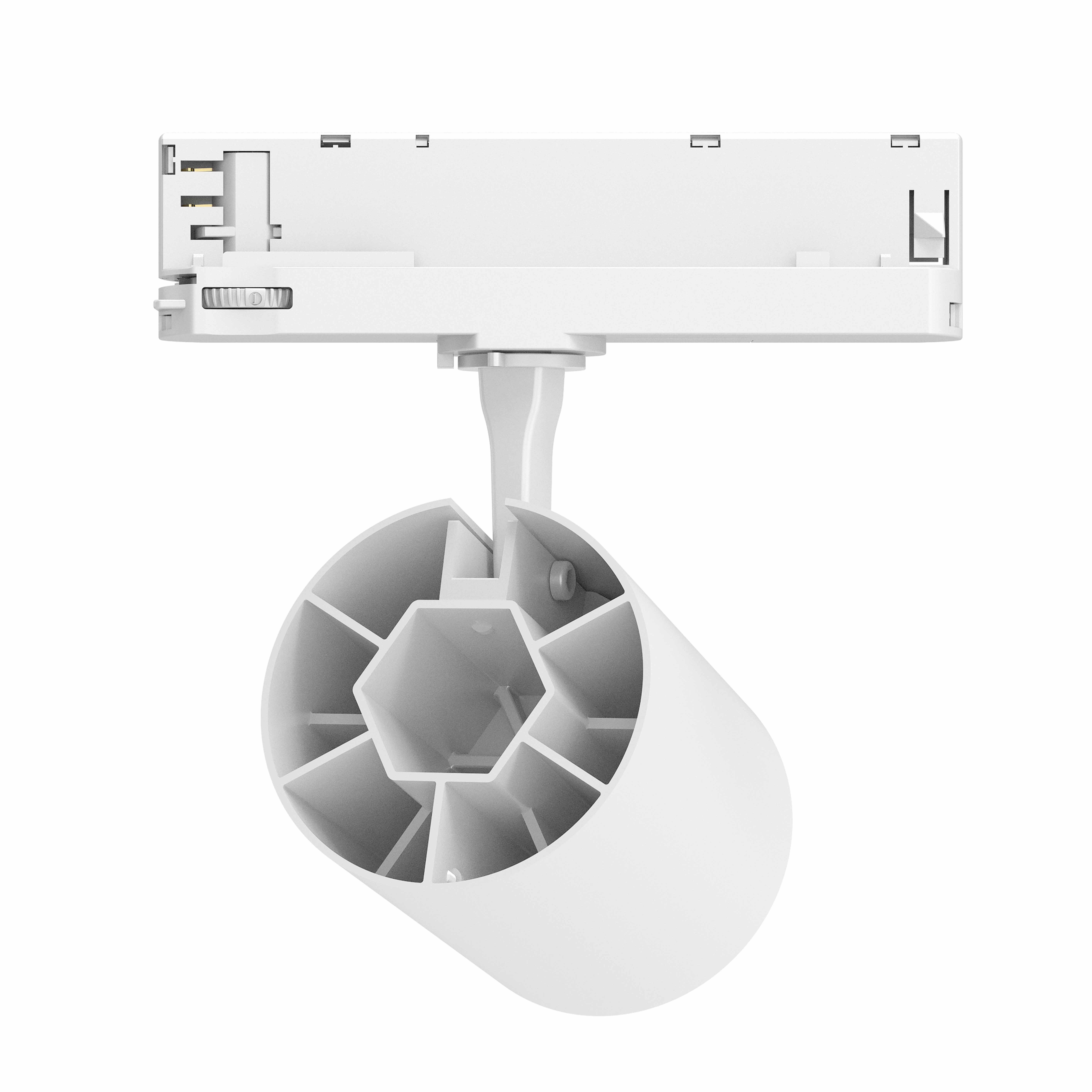

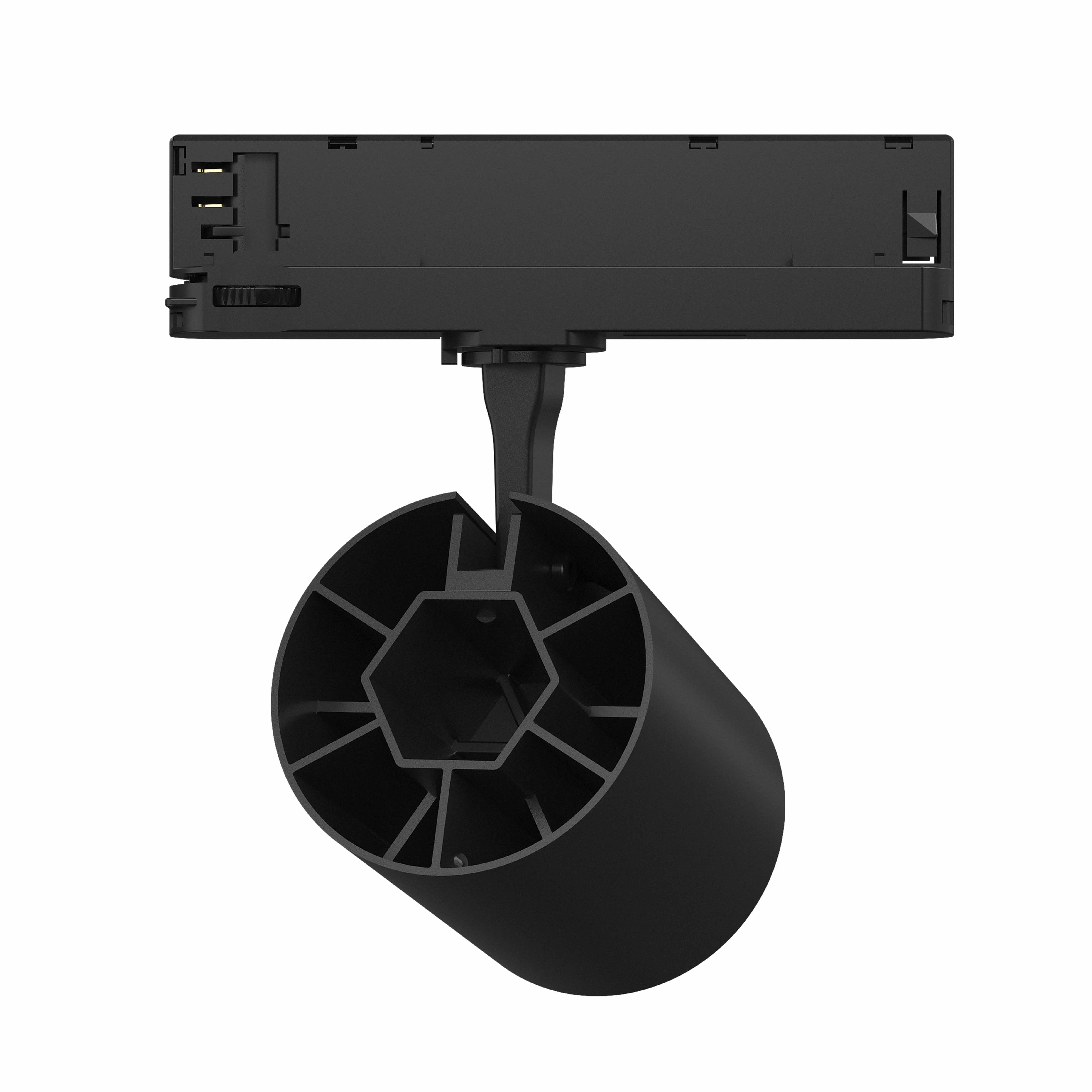

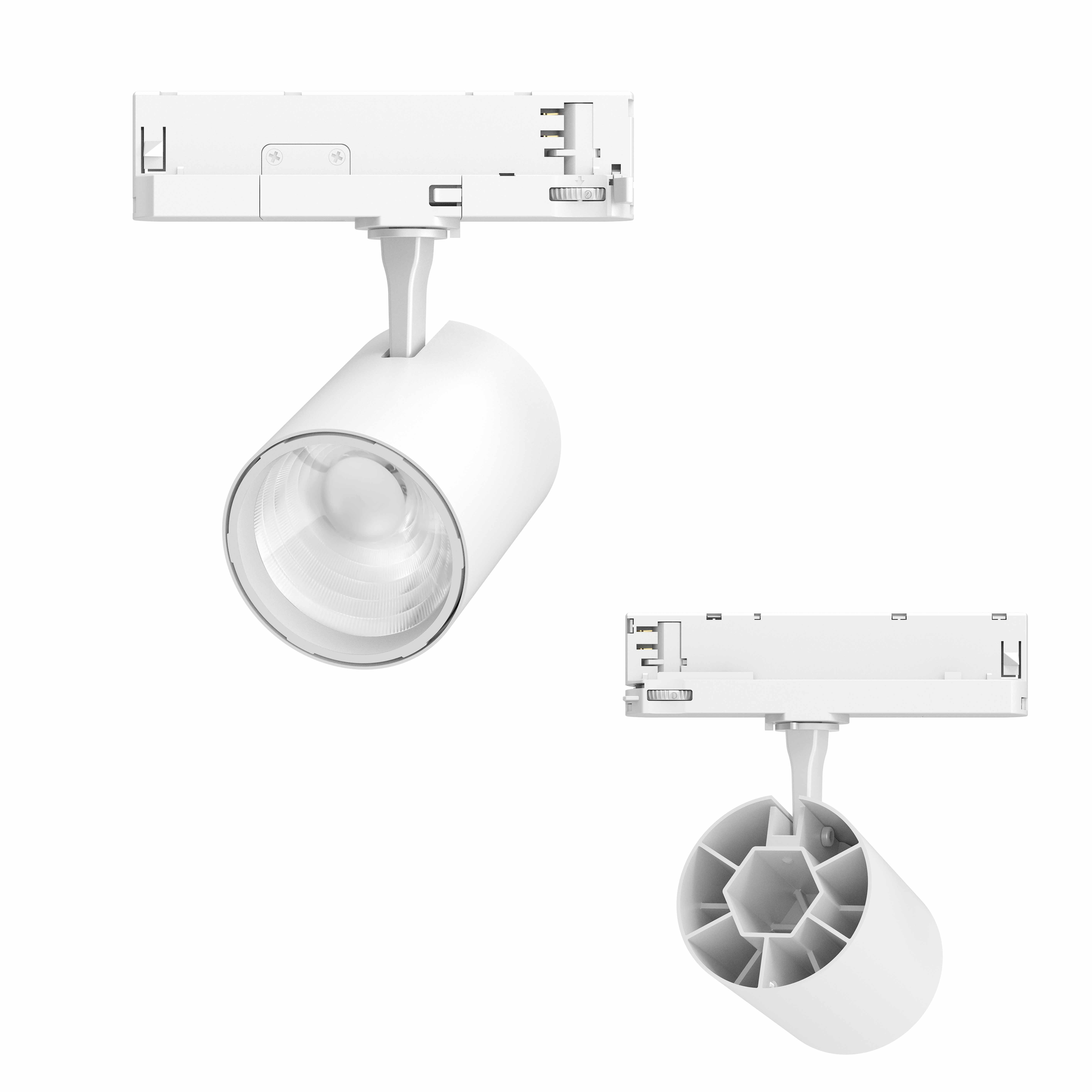

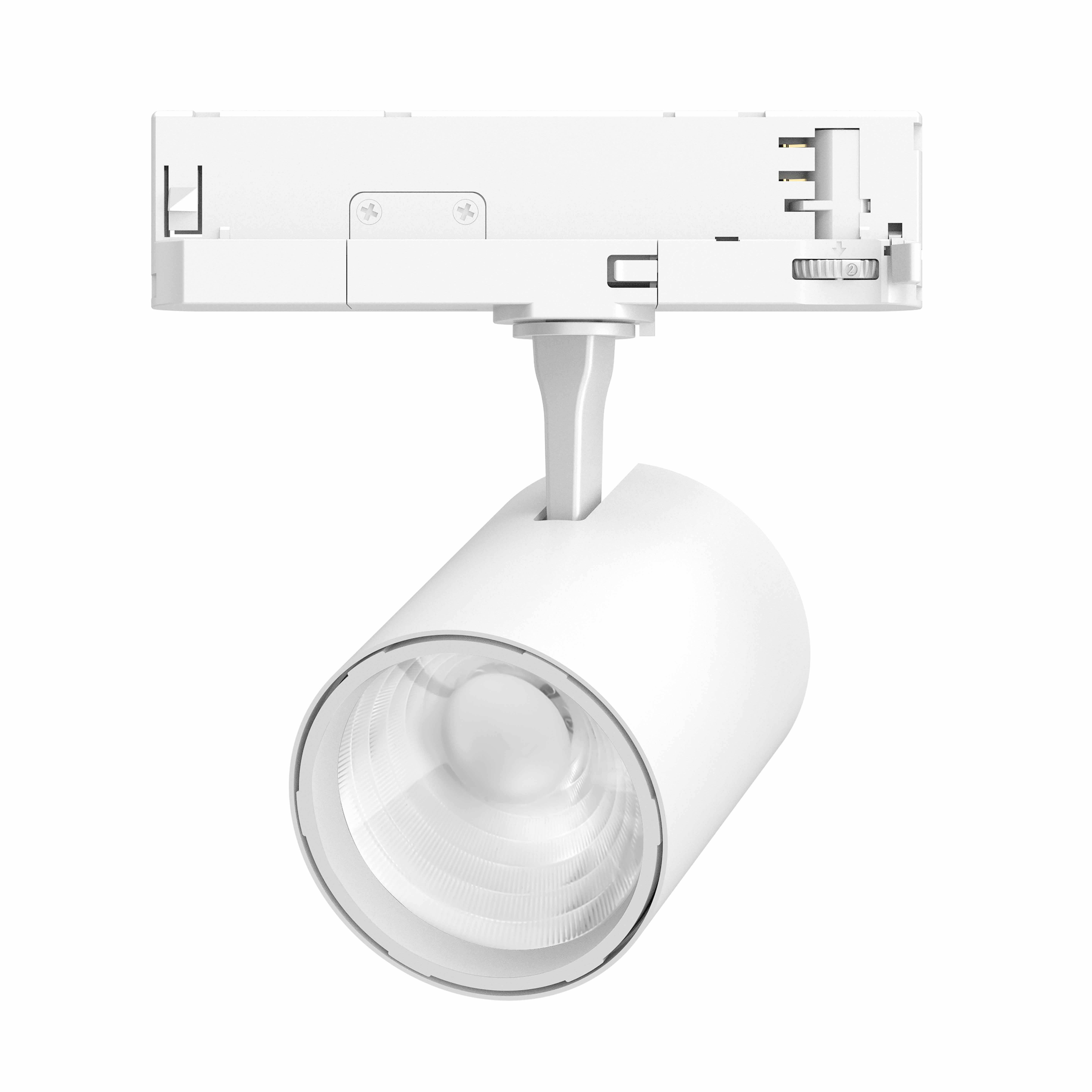

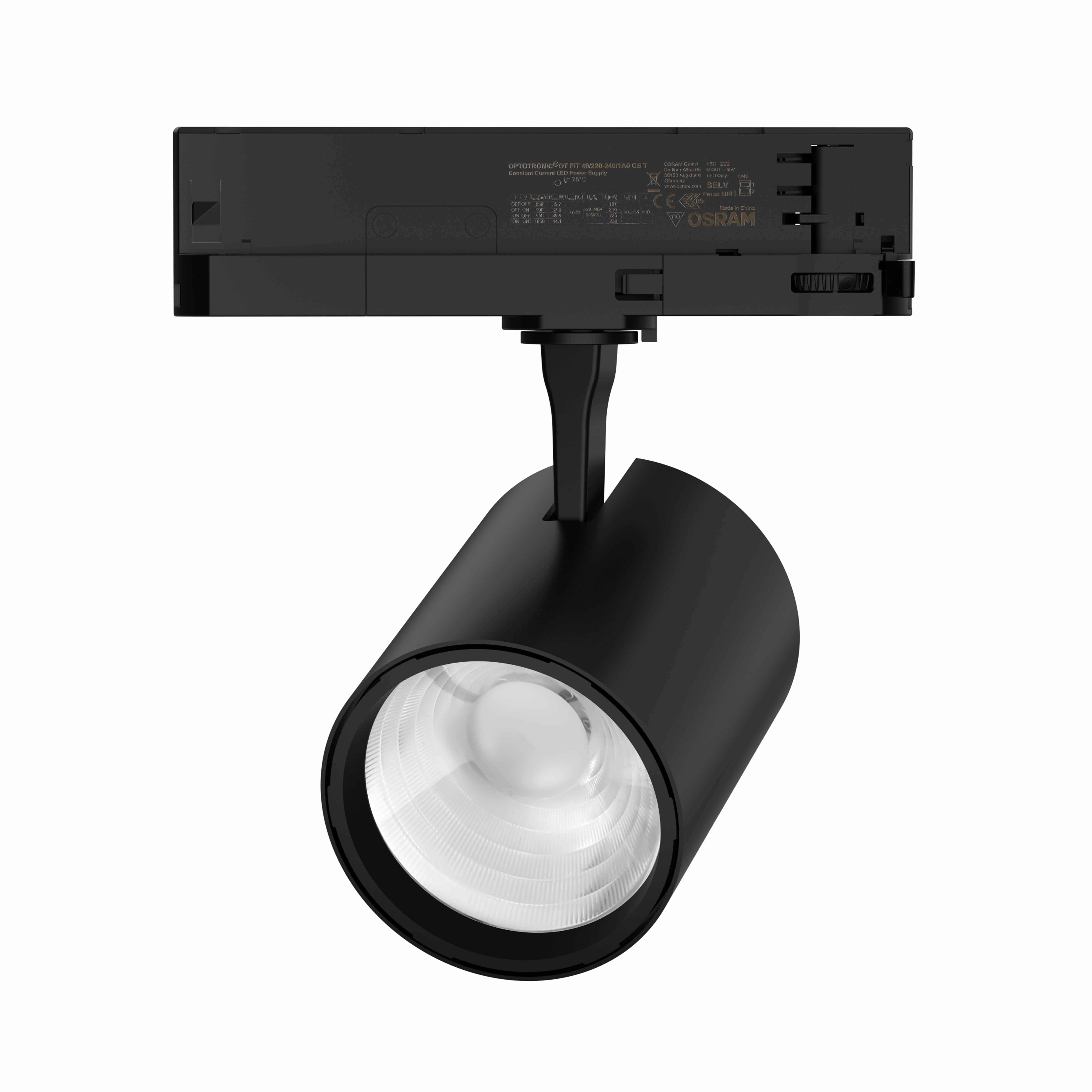

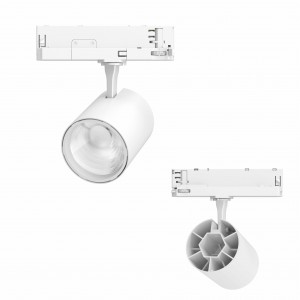

20W COB LED Track light

Short Description:

  • Citizen COB LED, strong color consistancy

  • Luminaire 100 lm/Watt @ CRI80
  • High CRI: 80+/90+/97+ (2700K/3000K/4000K)
  • Driver in track, external driver solution, flicker-free, PF>0.95
  • Track adapter: 6/4 wire 3 phase, 3/2 wire 1 phase
  • Wattage: 15W, 20W, 25W, 30W, 35W
  • Long warranty, 5 years




  • Model: LL-TRM03-20W-02
  • Description: LED Track Light
  • Shipping Port: Shenzhen
  • Product Detail

    Product Tags

    Features:

    The directional integrated track lights allow you lights to focus illumination in those places where it is needed. By making use of universal 1/3-phase rails, one can obtain functional and adaptive lighting that is ideal as accent lighting. The spots can be easily mounted and tilted.

    Specification:

    Product Model LL-TRM-20W
    Power 20W
     Voltage   AC200-240V/ AC90-130V
     Housing materials Aluminum alloy
     Size Φ80xL100mm
     Housing color Black, White, Silver
     Light source Citizen COB LED
     Color    Warm white, neutral white, cool white
     Kelvin 2700K/3000K/4000K/5000K
     CRI 80+,90+,97+
     Luminous efficiency Standard Version: 90-120lm/W @CRI80;
     Beam angle  15°, 24°, 36°
     Adjustable Continuous 350° rotation and 90° pivot
     Dimming DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
     Driver PF>0.95  flicker-free isolated constant current driver
    Track adapter 1/3 phase universal adapter
     Warranty 3-5 years

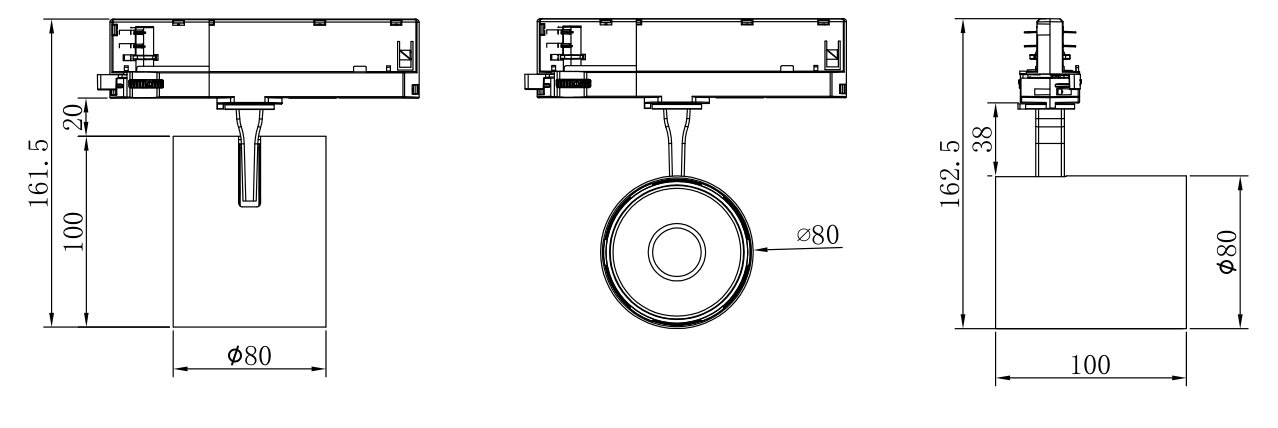

    Size:

    trm sizeUnit: mm

    Spectrum Distribution:

    TRK03 Spectrum Distribution 1TRK03 Spectrum Distribution 2

    Lumen distribution diagram & Distance curve

    Beam angle:15°

    TR03 15DEG

    Beam angle:24°

    TR03 24DEG

    Beam angle:36°TR03 36DEG

    Application:

    Special counter, clothing shop, guest house, hotel, museums, art galleries, convention center and other special shop.

    track light application 1
