20W Slim LED Floodlight

Description:

Lowcled LED Flood Light 4A series adopts high quality SMD2835 LED chipset. The structural design with high strength, high efficient reflector and tempered glass shape can ensure product heat dissipation, water resistance, impact resistance and other comprehensive performance. Power factor is ≥0.9. Sealing with glue, the protection grade is IP65. Installing with breathing valve, which can clean up the moisture inside of lamp and keep balance of pressure difference between lamp inside and outside. 30,000 hours lifetime.

Features:

1. Lowcled LED Flood Light 4A series adopts high quality SMD2835 LED chipset.
2. Universal Constant Current Voltage AC110-130V / AC200-240V, 50/60Hz.
3. The structural design with high strength, high efficient reflector and tempered glass shape can ensure product heat dissipation, water resistance, impact resistance and other comprehensive performance.
4. Power factor is ≥0.9.
5. Temperature of Working Condition: -40℃+45℃.
6. Sealing with glue, the protection grade is IP65. Installing with breathing valve, which can clean up the moisture inside of lamp and keep balance of pressure difference between lamp inside and outside.
7. 30,000 hours lifetime

TL;DR — quick summary:

TL;DR — 20 W Slim LED Floodlight: 20 W · 1800 lm · 90 lm/W · IP65 · 120° · 3000K / 4000K / 6000K · ≥ 30000 H. Warranty: 5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS, SASO, ETL, DLC and SAA certified. OEM/ODM available — email [email protected] for factory-direct pricing.

Purchase information:

Key specifications: 20 W · 1800 lm · 90 lm/W · IP65 · 120° · 3000K / 4000K / 6000K · ≥ 30000 H.

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS, SASO, ETL, DLC, SAA). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE, RoHS, SASO, ETL, DLC and SAA as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

Can you supply the voltage version my project requires?
Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.

Do you provide IES photometric files and a lighting layout?
IES files and LM-79 reports are available on request for most models. Send the drawing or site plan, ceiling or pole height, mounting details and the target lux or foot-candle level, and we return a fixture count with a DIALux, Relux or AGi32 layout together with the quotation.

Is this fixture DLC listed for utility rebate eligibility?
DLC listing applies to specific model numbers rather than to a whole range. Tell us the project state or the utility rebate programme and we confirm which listed model number applies before you order.

What mounting options are available for this model?
Mounting depends on the model: bracket or yoke, chain or pendant, slip fitter, trunnion, surface or recessed mounting. The specification table above lists the standard option; ask us for the mounting drawing of the exact model if it has to match existing poles, junction boxes or ceiling grids.

What warranty applies to this product?
5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

About the manufacturer:

Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS, SASO, ETL, DLC, SAA certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.

What customers say:

From our own factory (production, aging test & shipment):

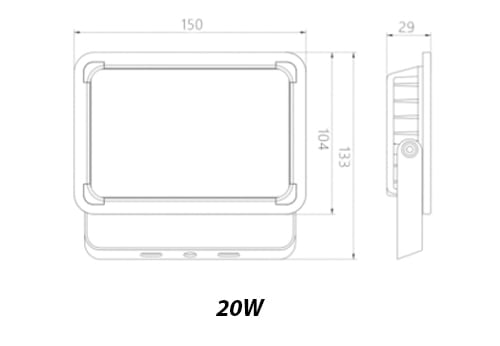

Size:

Application:
1. Tunnel, Subway, Underground Lighting;

2. Gymnasium, Sports Stadium Lighting;

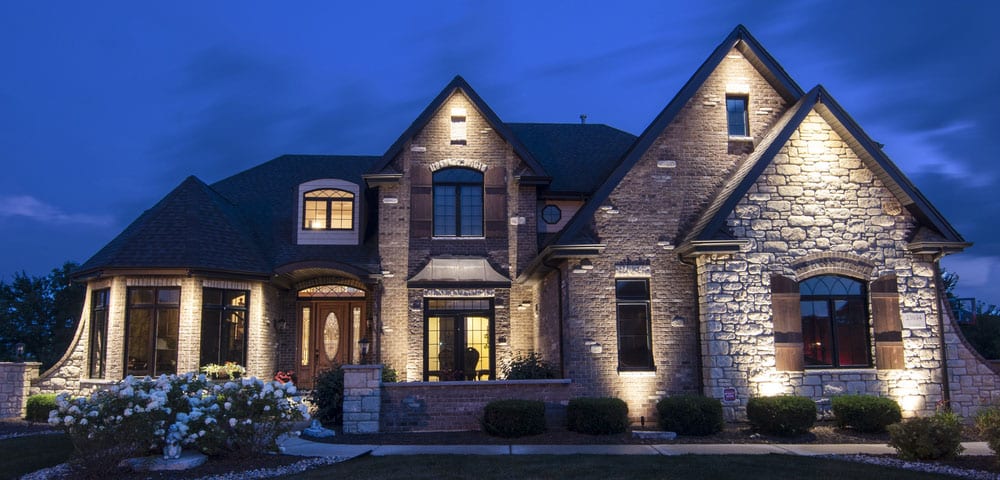

3. Building, Billboard Lighting;

4. Gas Station, Garage Lighting;

5. Park, Garden Lighting;

6. Workshop, Factory Lighting;

7. Warehouse, Storage Lighting;

8. Yard, Square Lighting;

9. Road,Highway Lighting;

10. Station,Dock Lighting etc

11. Directly replace the traditional HID light to save energy
