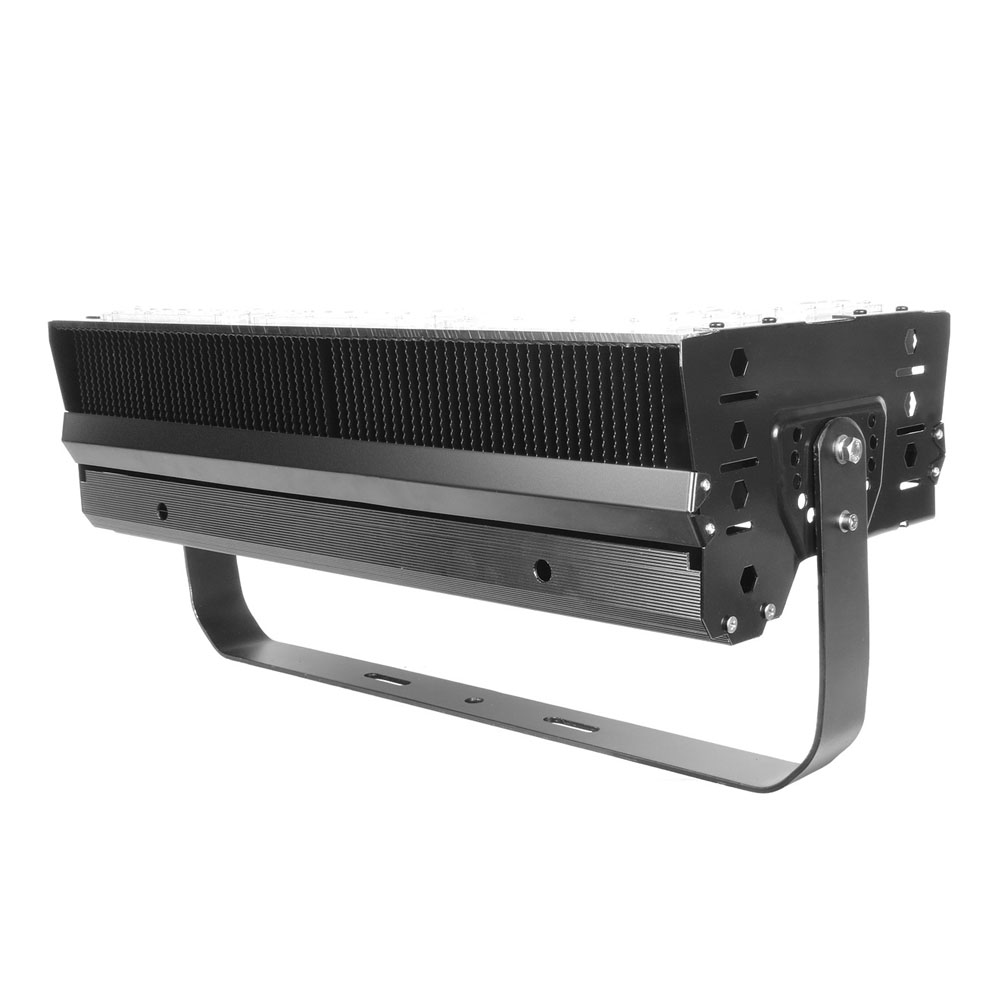

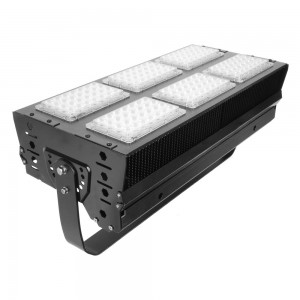

500W LED Sports Light

Short Description:

  • Power: 500w
  • Philips chipset

  • Meanwell driver
  • Heavy duty die-cast aluminum housing
  • IP66 rated for wet locations
  • Fully sealed to be dirt and bug proof
  • High quality tempered glass optics
  • 5 years warranty.


  • Shipping Port: Shenzhen
  • Description: LED Sports Light
  • Model: LL-FLSP6-500W
  • Product Detail

    Product Tags

    Description:

    Lowcled Sports Lighting is designed to replace high power traditional lighting products, such as Metal Halide, High Pressure Sodium light, High Intensity Discharge Lamp, etc., available in 300W, 600W, 500W, 800W, 1000W, replacing MH/HPS/HID from 600W to 2000W. The light output is up to 120lm/w, more energy-saving than ever.

    The compact design makes shipping and installation much easier. And excellent thermal management with cold-forging heat sink and unique heat dissipation structure makes it much better cooling system than other competitives, enables longer lifespan, almost free of maintenance.

    Features:

    1. Lowcled Sports light is perfect for all kind of sports stadiums. The superior light output, reduced energy usage and possibility the use the existing infrastructure make a perfect match with many sport club’s policies.
    2. High Protection Level up to IP67: Light engines and driver compartment are sealed to protect LEDs, electrical components, and terminal block against dust and moisture, increasing reliability and extending lifespan.
    3. High Impact Resistance: Meets IK08 mechanics impact protection code.
    4. Anti 17-level Wind Power: Fixture’s Low profile and pin structure effectively reduce wind load, plus light weight and high mechanics strength, the fixture has strong ability of anti-wind.
    5. High Vibration Resistance: Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.
    6. Surge Suppression Protection: Optional 20KV SPD for adding an additional layer of protection for the light.
    7. 50,000 houe.rs lifetime.

    Specification:

    Model LL-FLSP6-500W
    Power 500W
    LED Philips
    Driver Meanwell
    Input Voltage 100-240VAC
    Frequency 50/60Hz
    Power Factor ≥0.9
    Total Harmonic Distortion <20%
    Color Temperature 3000-6500K
    Luminous Flux 60000lm
    Luminous Efficacy 120 lm/w
    CRI >80
    Beam Angle 12° / 30° / 60°/ 90°/ 30°X70°
    Light Transmittance 0.92
    IP Level IP65
    Operating Temperature -40~40℃
    Preservation Temperature -40~90℃
    Lifespan 50,000h
    Warranty 5 years

    Application:

    Stadium Sports Light is widely used at factory, tunnel, underground mine, school, hospital, parking lot, warehouse, square, supermarket, courtyard and so on.

    stadium flood light application
