5W LED Track Light

Short Description:

  • Power: 5Watt
  • Luminaire efficacy: 80-110 lm/Watt @ CRI80
  • Luminus COB LED, strong color consistancy
  • CRI>97, 90 available for 2700K, 3000K, 4000K
  • LM80 approved
  • 3years warranty


  • Model: LL-TRK03-5W
  • Description: LED Track Lighting
  • Shipping Port: Shenzhen
  • Product Detail

    Product Tags

    Features:

    1. Die-cast aluminum radiator, better for heat dissipation.
    2. Cylinder body and rectangular driver box.
    3. Boke, Tridonic, Philips or HEP flicker-free driver.
    4. Very even light distribution, high uniformity and no glare.
    5. Instant switch-on regardless of temperature or humidity.
    6. 4 wire 3 phase or 3 wire 1 phase, 2 wire 1 phase track adapter are available.
    7. High power factor and flicker free.
    8. CRI80/90/97 are for your selection.

    Specification:

    Product Model LL-TRK03-5W
    Power 5W
    Input Voltage 200-240VAC
    Chipset Luminus
    Driver BOKE Flicker free
    Frequency 50/60Hz
    Luminous Efficacy 80-110lm/W @ CRI80
    Rated Luminous Flux 550lm
    Beam Angle 15°/24°/ 38°/60°
    Total Harmonic Distortion  < 15%
    Color Temperature (CCT) 2700K / 3000K / 4000K / 5000K
    CRI 80/90/97
     IP Rating IP20
    Operating Temperature -20~+45℃
    Fixture Material Die-cast aluminum radiator
    PF >0.9
    SDCM <5
    Housing color Black /White /Silver
    Lifespan 50,000H
    Warranty 3years
    Product Size(D*L*H) ø52*120*160mm
    Inner box 165*70*160mm
    Net Weight/PCS 0.72KG
    Gross Weight 11.8KG/CTN
    Packing Size 400*400*300mm, 16PCS/CTN

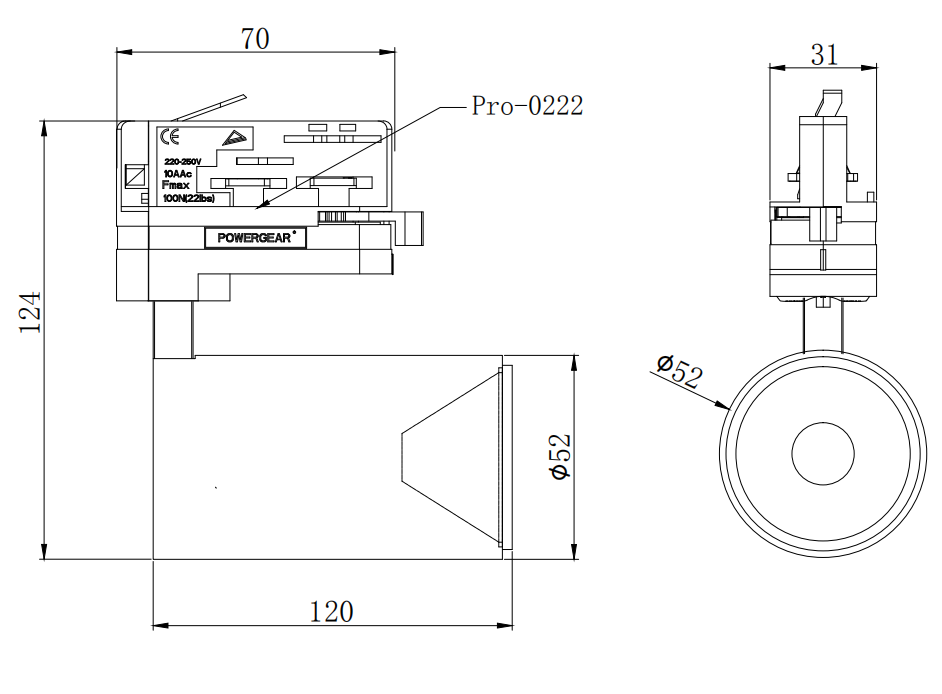

    Size:

    5W 10W SIZE 1

    Unit: mm

    Spectrum Distribution:

    TRK03 Spectrum Distribution 1TRK03 Spectrum Distribution 2

    Lumen distribution diagram & Distance curve

    Beam angle:15°

    TR03 15DEG

    Beam angle:24°

    TR03 24DEG

    Beam angle:36°TR03 36DEG

    Application:

    Special counter, clothing shop, guest house, hotel, museums, art galleries, convention center and other special shop.

    track light application 1
