140-190LM/W 100W-300W UFO LED High Bay Light

Name: 140-190LM/W 100W-300W UFO LED High Bay Light
Brand: LOWCLED

Short Description:

Send email to us

Product Detail

Product Tags

Feedback (2)

Our team through qualified training. Skilled professional knowledge, powerful sense of support, to satisfy the support desires of consumers for Recessed Downlight, Led Plant Grow Light, Ceiling Led Light, We promise to try our greatest to deliver you with high quality and economical products and services.

140-190LM/W 100W-300W UFO LED High Bay Light Detail:

Features:

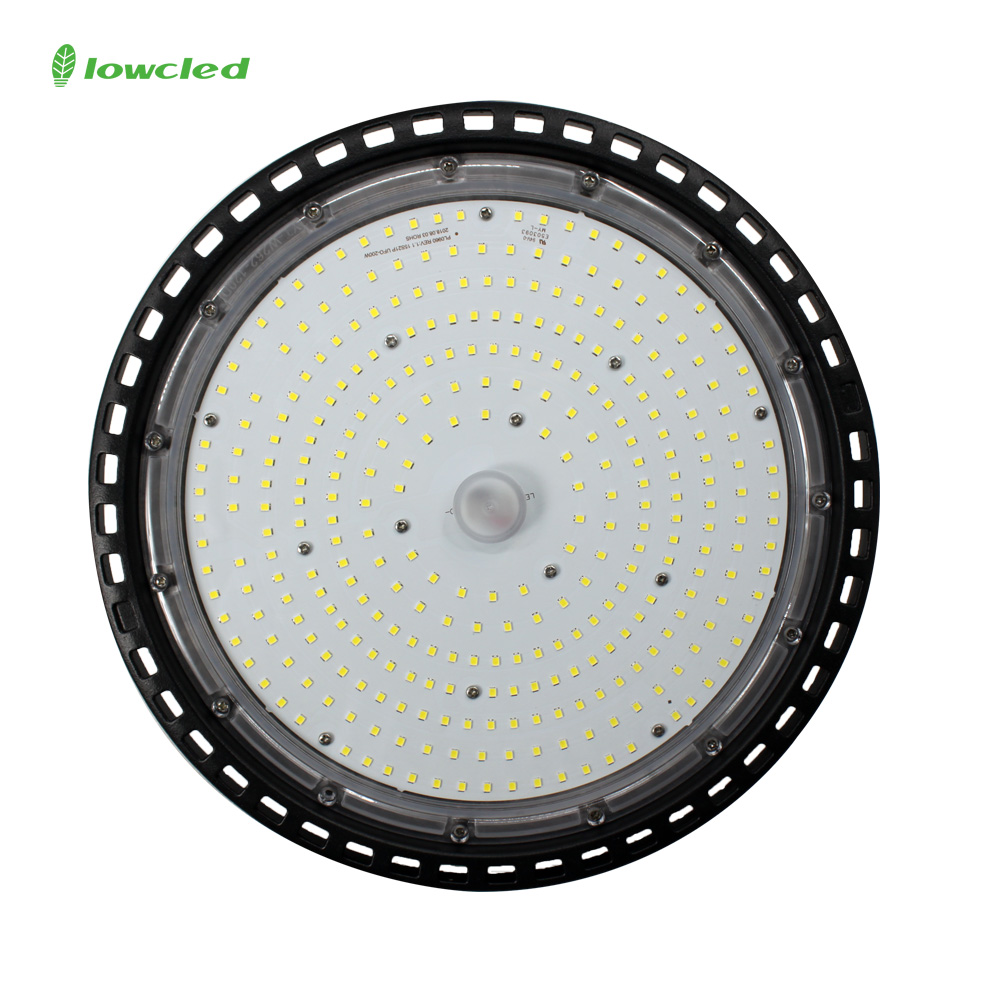

Adopts high quality SMD2835 LED chipset.
Universal Constant Current Voltage 100-277V / 277-480V / 120-347V, 50/60Hz.

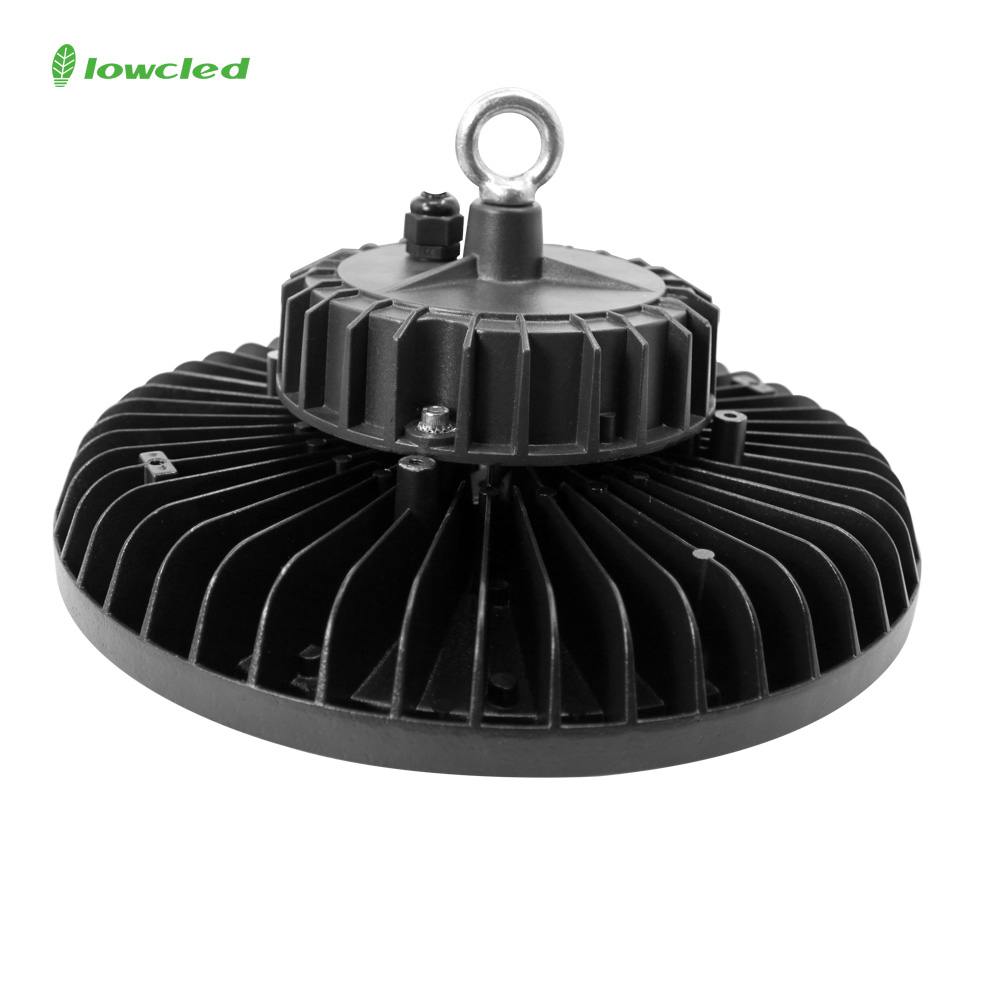

The structural design with high strength, high efficient reflector can ensure product heat dissipation, water resistance, impact resistance and other comprehensive performance.
Power factor is ≥0.95.
Temperature of Working Condition: -40℃+50℃.
Sealing with glue, the protection grade is IP65.
50,000 hours lifetime

TL;DR — quick summary:

TL;DR — 140-190 lm/W 100 W-300 W UFO LED High Bay Light: 100 W · 14000 lm~19000 lm · IP65 · 120° / 90° / 60° · 3000-6500K · 50,000h. Warranty: 5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS, SASO, ETL, DLC and SAA certified. OEM/ODM available — email [email protected] for factory-direct pricing.

Specification:

Model	LL-UFO100-M	LL-UFO150-M	LL-UFO200-M	LL-UFO240-M	LL-UFO300-M
Power	100W	150W	200W	240W	300W
Luminous Flux	14000lm~19000lm	21000lm~28500lm	28000lm-38000lm	33600lm~45600lm	42000lm~54000lm
Input Voltage	100-277V / 277-480V / 120-347V
Frequency	50/60Hz
Power Factor	≥0.95
Total Harmonic Distortion	＜20%
Color Temperature	3000-6500K
CRI	>70
Beam Angle	120° / 90° / 60°
Light Transmittance	0.92
IP Level	IP65
Operating Temperature	-40~50℃
Lifespan	50,000h
Dimension(D*H) (mm/in)	Φ250139/ Φ9.85.5	Φ250139/ Φ9.85.5	Φ300161/ Φ11.86.3	Φ300161/ Φ11.86.9	Φ400148.5/ Φ15.75.8
Net Weight(kg/lbs)	1.9/4.2	1.9/4.2	3.6/7.9	3.6/7.9	3.7/8.2
Gross Weight(kg/lbs)	2.3/5.1	2.3/5.1	4.2/9.3	4.2/9.3	4.3/9.5
Carton Size(mm/in)	300300145/ 11.811.85.7	300300145/ 11.811.85.7	350350170/ 13.813.86.7	350350170/ 13.813.86.7	445445165/ 17.517.56.5

Purchase information:

Key specifications: 100 W · 14000 lm~19000 lm · IP65 · 120° / 90° / 60° · 3000-6500K · 50,000h.

Model	LL-UFO100-M
Warranty	5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS, SASO, ETL, DLC, SAA). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE, RoHS, SASO, ETL, DLC and SAA as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

Can you supply the voltage version my project requires?
Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.

Do you provide IES photometric files and a lighting layout?
IES files and LM-79 reports are available on request for most models. Send the drawing or site plan, ceiling or pole height, mounting details and the target lux or foot-candle level, and we return a fixture count with a DIALux, Relux or AGi32 layout together with the quotation.

Is this fixture DLC listed for utility rebate eligibility?
DLC listing applies to specific model numbers rather than to a whole range. Tell us the project state or the utility rebate programme and we confirm which listed model number applies before you order.

What mounting options are available for this model?
Mounting depends on the model: bracket or yoke, chain or pendant, slip fitter, trunnion, surface or recessed mounting. The specification table above lists the standard option; ask us for the mounting drawing of the exact model if it has to match existing poles, junction boxes or ceiling grids.

What warranty applies to this product?
5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

About the manufacturer:

Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS, SASO, ETL, DLC, SAA certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.

What customers say:

We bought high bay lights from Lowcled a few years ago. They are past the warranty period now and still running without failures, which is why we came back to source our commercial lighting this time.
— Verified buyer · Middle East · Repeat customer · high bay lighting

We have worked with Lowcled for several years and the cooperation has always been smooth.
— Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia

From our own factory (production, aging test & shipment):

UFO high bay lights on 8-12 hour aging test racks in the LOWCLED factory

UFO high bay light individually boxed before shipment

Finished UFO high bay orders being loaded for delivery

Container loading at the LOWCLED Shenzhen factory

Packed pallets ready for worldwide shipment

Size:

Unit: mm/in

Application:

UFO LED High Bay Light is widely used for Factories, mines, oil, chemical workshops, storerooms, highway toll stations, gas stations, supermarkets, exhibition Hall and other inflammable and explosive places for lighting.

Product detail pictures:
