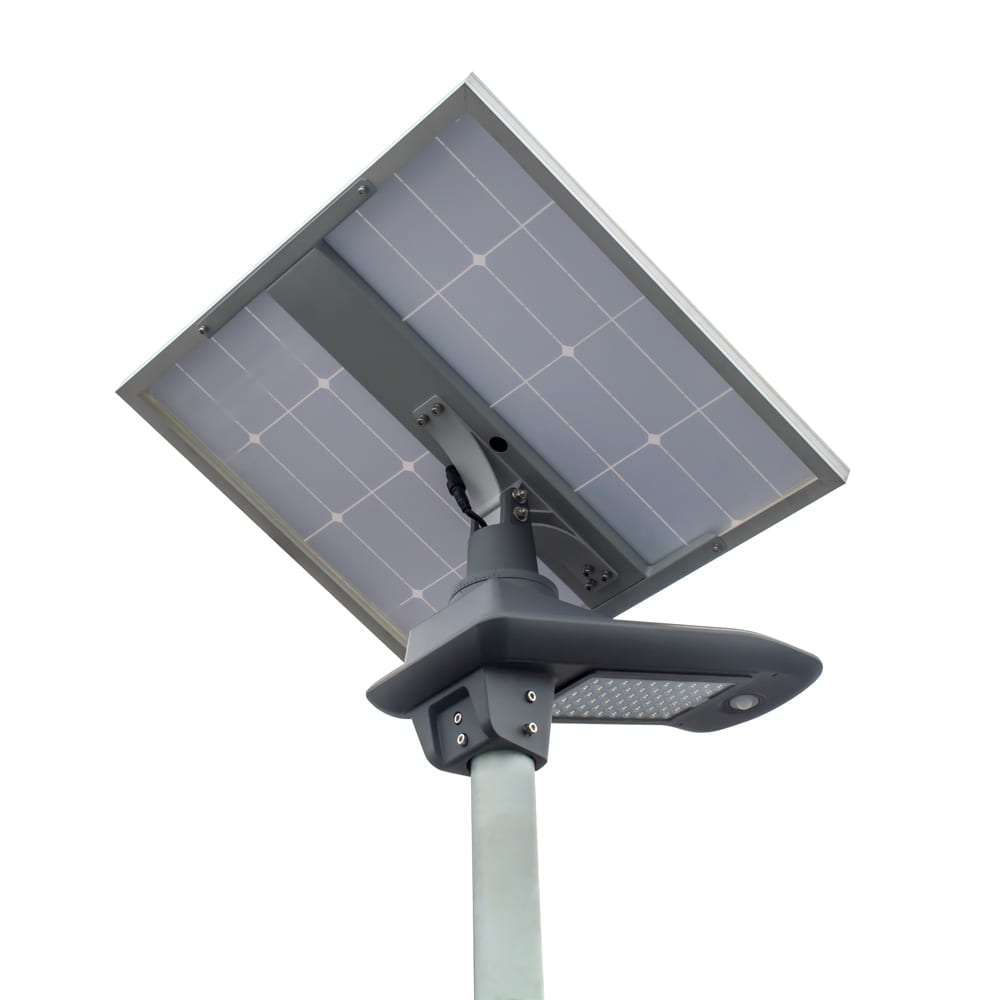

Factory directly Home Lighting - 30W Semi integrated Solar LED Street Light with Rotation Solar Panel solar garden light 30watt – Lowcled Detail:

semi integrated solar street light

Features:

Product structure

The solar light with streamlined design is manufactured with an exclusive private mold and made of aluminum die casting housing.

30W Solar led street light

1. Solar panel 2. Microwave/PIR sensor 3.MPPT controller 4. LED chipset 5. Lithium battery 6. Horizontal bracket 7. Vertical bracket

Function characteristic

1) Solar panel coulbe be rotated 360º horizontally and 240º vertically, which could increase the photoelectronical vonversion maximum in different areas.

30W Solar led street light rotate

2) The integrated optical lens offers excellent light transmittance and durable to resist damage.

Solar Lights Outdoor chip

3) First class LED chipset. The advanced lighting technology brings a higher luninous intensity, lower thermal resistance, longer lifespan and a greater luminaire stability.

20 W Led Solar Street Light chip beam angle

4) Patent MPPT controller developed b y our RD team. Maxium power charging.

20 W Led Solar Street Light MPPT

5) Powerful lithium battery module package, lower self discharge rate, longer lifespan, strong depth of discharging, wider working temperature and environment protecting.

20 W Led Solar Street Light battery

6) Microwave/PIR sensor

Using advanced Microwave/PIR sensor technology, more sensitive and optimize brightness automatically. Max sensing distance is 12meters. The build-in Microwave/PIR sensor could automatically regulate brightness by identify moving object around, increase brightness when object approaches and decrease after object leaves about 20-30s(can be customized). The function of lighting intensity can preserve solar energy effectively.

30W Solar led street light PIR sensor

7) Mobile APP

30W Solar led street light APP

Specification

Model NO.  LL-SMSL1-30W
LED Chipset 3535 LED
Chipset Q’ty 42PCS
Light Efficiency 130LM/W±10LM
Lumen 3500-4500LM
Color Temperature 3000K-6500K
CRI >70
LED Lifespan 50000H
Electrical characteristic Rated Power 30W
Solar Panel Power 18V/60W/mono156
Lithium Battery 12V 264WH
Charge Time 6-8H
Discharging Time > 36H
Working Temparature -30℃~+60℃
Switch Threshold 15LUX
Max sensing Distance ≦12M
Mechanical Specification Light body size 640*260*250mm
Solar Panel Size 780*513*30mm
Net Weight 15 kg
Mounting Height 4-6 M
Pole Installation Distance 10-15 M
Packing Information Q’ty/carton 1 set / 2 cartons
Carton Size(Lamp) 690*330*320mm
Carton Size(Solar panel) 825*565*75mm
Gross Weight 17.8 kg

Size:

Solar Led Street Lights SIZE

Unit: mm

Application:

Semi-integrated solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.

Solar Led Street Lights application


Product detail pictures:

Factory directly Home Lighting -
 30W Semi integrated Solar LED Street Light with Rotation Solar Panel solar garden light 30watt – Lowcled detail pictures

Factory directly Home Lighting -
 30W Semi integrated Solar LED Street Light with Rotation Solar Panel solar garden light 30watt – Lowcled detail pictures

Factory directly Home Lighting -
 30W Semi integrated Solar LED Street Light with Rotation Solar Panel solar garden light 30watt – Lowcled detail pictures

Factory directly Home Lighting -
 30W Semi integrated Solar LED Street Light with Rotation Solar Panel solar garden light 30watt – Lowcled detail pictures

Factory directly Home Lighting -
 30W Semi integrated Solar LED Street Light with Rotation Solar Panel solar garden light 30watt – Lowcled detail pictures
