Hot Selling for Led Lights Multiple Color 0-10v Dimming Led Batten Light Fixture Linkable For Restaurant Bookstore

Short Description:

  • Power: 80W
  • High efficacy,130lm/w.
  • Universal voltage AC100-277V 50/60Hz.
  • Using high quality SMD2835 chips.
  • High Power Factor >0.9, Low THD Driver.
  • Simple brown appearance, surface anodized, without fading and corrosion.
  • Excellent Optics design, greatly improve the light utilization and evenness.
  • Available with 0-10V dimmable, Photocell sensor, Microwave motion sensor.
  • Dust-proof and waterproof, IP65.
  • 5 years Warranty.


  • Shipping Port: Shenzhen
  • Description: Led Tennis Court Shoebox Light
  • Model: LL-SL-80W-4S
  • Product Detail

    Product Tags

    While using the “Client-Oriented” organization philosophy, a rigorous top quality command process, highly developed production devices and a potent R&D workforce, we normally provide high quality products, outstanding solutions and aggressive charges for Hot Selling for Led Lights Multiple Color 0-10v Dimming Led Batten Light Fixture Linkable For Restaurant Bookstore, We are keeping durable business relationships with more than 200 wholesalers in the USA, the UK, Germany and Canada. If you are interested in any of our products, please feel free to contact us.
    While using the “Client-Oriented” organization philosophy, a rigorous top quality command process, highly developed production devices and a potent R&D workforce, we normally provide high quality products, outstanding solutions and aggressive charges for Batten Led Lights, Color Led Lights, Led Lights, With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in this field and other industries. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success! We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
    shoebox light application

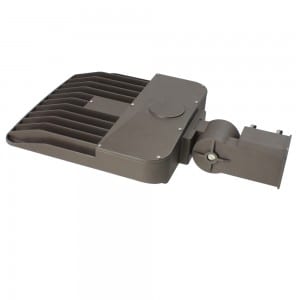

    80W LED Shoebox fixture – 10400 lumens – replaces 250W HID.

    Our LED Shoebox Fixtures are designed to replace Metal Halide and High Pressure Sodium shoebox lights in parking lots and other public areas. Shoe box lighting is an effective way to illuminate large parking areas with ease. Fixture placement, along with the right optics, can lead to a widespread scope of lighting that is powerful and effective. With our collection of LED shoe box light fixtures, find the perfect way to illuminate parking lots of any size!  Ask us for a free photometric evaluation.

    Features:

    1. Universal Constant Current Voltage 100-277VAC, 50/60Hz.
    2. The structural design with high strength, high efficient reflector and tempered glass shape can ensure product heat dissipation, water resistance, impact resistance and other comprehensive performance.
    3. Power factor is >0.9.
    4. Temperature of Working Condition: -40℃+40℃.
    5. Storage temperature: -40℃+90℃.
    6. Sealing with glue, the protection grade is IP65. Installing with breathing valve, which can clean up the moisture inside of lamp and keep balance of pressure difference between lamp inside and outside.
    7. 50,000 hours lifetime

    Specification:

    Model LL-SL-80W-4S
    Power 80W
    Input Voltage 100-277VAC
    Frequency 50/60Hz
    Power Factor ≥0.9
    Total Harmonic Distortion <20%
    Color Temperature 3000-6500K
    Luminous Flux 10400lm
    Luminous Efficacy 130 lm/w
    CRI >70
    Raw material Aluminium + PC
    Beam Angle 80*150°
    Light Transmittance 0.92
    IP Level IP65
    Operating Temperature -40~40℃
    Storage Temperature -40~90℃
    Lifespan 50,000h
    Dimension 311*310*72mm
    Net Weight 3.75 kg
    Gross Weight 4.67 kg
    Carton Size 540*355*125mm

    Options

    • Slip fitter Mount
    • Trunnion Mount
    • Straight Arm Mount
    • Photocell Option
    • Motion Sensor Option
    • Dimming: 0-10V

    Size:

    60W 80W 100W 120W LED SHOEBOX LIGHT size

    Unit: mm/in

    Application:

    Perfect for parking lots, roadways, car dealerships, campuses, parks, and as a replacement for street lights and vapor lamps.

    LED shoebox application
