IP69K LED Triproof Tube Light – Waterproof Vapor Tight Fixture for Warehouse
Features:
-
It is composed of anti-corrosion PC with heat-dissipating aluminum structure, anti-ultraviolet and non-yellowing
- .Ra:>80Ra
- .LED: Highlight SMD2835
- .Beam Angle: 180°
- .Power: 20W 30W 40W 50W 60W
- .Input Voltage: AC200-240V/AC100-277V
- .Optional Lumens: 120lm/w 140lm/w 160lm/w
- .Optional Dimming: DALI, 0/1-10V
- .Optional Emergency: 60 ,90 ,180 minutes (built-in)
- .Optional Sensor: None
- .Installation method: Ceiling, Hanging wire, Suspension rod
- .Optional Size: Length 600mm 1200mm 1500mm, .Diameter 80mm
- .Series Mode: Quick connector series connection
- .IP Rating: IP69K IK08
- .Warranty: 5 years
Specification:
| Product Model | LL-TP060-T80 | LL-TP120-T80 | LL-TP120-T80 | LL-TP150-T80 | LL-TP150-T80 |
| Rated Voltage | AC 220V 50/60Hz | ||||
| Power Factor | >0.95 | ||||
| Surge Protection | >2.5KV | ||||
| Lamp Board Voltage | DC36-42V | ||||
| Rated Power | 20W | 40W | 50W | 50W | 60W |
| Light Source Type | LED 2835 0.5W high brightness chipset | ||||
| Correlated Color Temperature | 3000-6500K | ||||
| Overall Lighting Effect | 120LM/W 140LM/W available | ||||
| Color Rendering Index | >80Ra, 90Ra,95Ra for option | ||||
| Waterproof Rating | IP69K | ||||
| Beam Angle | 180° | ||||
| Collision Resistance Rating | IK08 | ||||
| Working Temperature | -30~50℃ | ||||
| Product Warranty | 5 Years | ||||
| Product Dimensions | L600*ф80mm | L1200*ф80mm | L1500*ф80mm | ||
| Package Dimensions | 700*210*255mm | 1300*210*255mm | 160*210*255mm | ||
| Gross Weight G.W | 9KG | 13KG | 15KG | ||
| Quantity Per Box | 6pcs/ctn | ||||
Purchase information:
Key specifications: 20 W · 180° · 3000-6500K.
| Warranty | 5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting |
| Samples | Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS |
| Payment | T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000 |
| MOQ / lead time | Quoted per model and configuration — email [email protected] |
Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.
Frequently asked questions:
What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.
What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.
Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.
What warranty applies to this product?
5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting.
Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

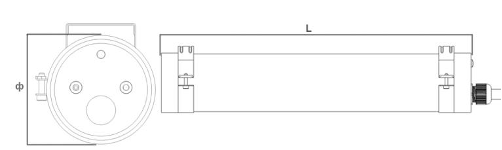

Size:
| Model | L(mm) | Diameter(mm) |
| LL-TP060-T80 | 600 | ф80 |
| LL-TP120-T80 | 1200 | ф80 |
| LL-TP150-T80 | 1500 | ф80 |
Application:
- Suitable for efficient lighting in cold storage, tunnels, warehouses, supermarkets, subways, railways, electricity, metallurgy, chemicals, steel, aviation, ships, and various factory areas, stations, large facilities, venues, and other places.
- Suitable for energy-saving renovation projects and places where maintenance and replacement are difficult.
- Suitable for places with high protection requirements, humidity, and harsh environments.
- Suitable for places with high anti-corrosion requirements, corrosion, and harsh environments.
- Suitable for installation in places with a height range of 2-6 meters.
