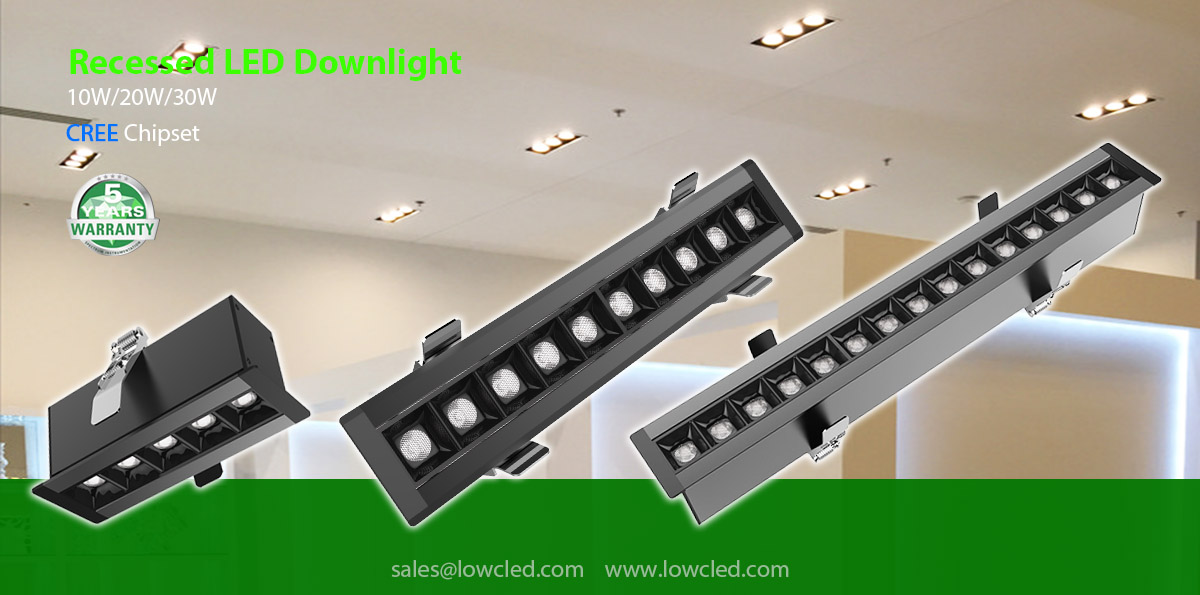

Recessed square LED downlight DL30 Easily installation aluminum linear square recessed

Name: Recessed square LED downlight DL30 Easily installation aluminum linear square recessed
Brand: LOWCLED

Short Description:

Send email to us

Product Detail

Product Tags

Feedback (2)

We believe in: Innovation is our soul and spirit. Quality is our life. Customer need is our God for Solar Led Lamp, Pendent Light, Strip Lights, Are you still looking for a quality product that is in accordance with your good company image while expanding your product range? Try our quality products. Your choice will prove to be intelligent!

Recessed square LED downlight DL30 Easily installation aluminum linear square recessed Detail:

Features:

Original CREE chipset.
It takes high brightness led lamp.
Use constant current driver. No flicker, no glare, very soft and even light.
High light efficiency, low power consumption, save much energy.
Lift time could reach 50,000 hrs.
Easily installation.

Specification

Model	LL-DL30-05	LL-DL30-10	LL-DL30-15
Power（±10%）	10W	20W	30W
Product Dimension	W55.5H30L162mm	W55.5H30L295mm	W55.5H30L428mm
Input(Frequency)	AC 220-240V（50/60Hz）
Lumen	650lm	1300lm	1950lm
Luminous Efficacy	65lm/w	65lm/w	65lm/w
PF	>0.9
LED Type	CREE XTE	CREE XTE	CREE XTE
LED Q‘ty	5 PCS	10 PCS	15 PCS
CCT(K)	3000K / 4000K / 6000K
CIR(Ra)	≥80
Beam angle	10° / 24° / 36° / 48°
Working Temperature	-30℃～45℃
Storage Temperature	-40℃～70℃
LED Driver	OSRAM X-power / Lifud
Life span of Light Source	≧50000 H(Ta=30°C@L70)
IP Grade	IP40
Body Materials	Aluminum Alloy + PC
Certificate	CE, Rohs

Purchase information:

Key specifications: 10 W · 650 lm · IP40 · 10° / 24° / 36° / 48° · 3000K / 4000K / 6000K · ≥ 50000 H(Ta=30°C@L70).

Model	LL-DL30-05
Warranty	3-5 years for indoor lighting; 5-7 years for outdoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3-5 years for indoor lighting; 5-7 years for outdoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

Size:

Unit: mm

Application:

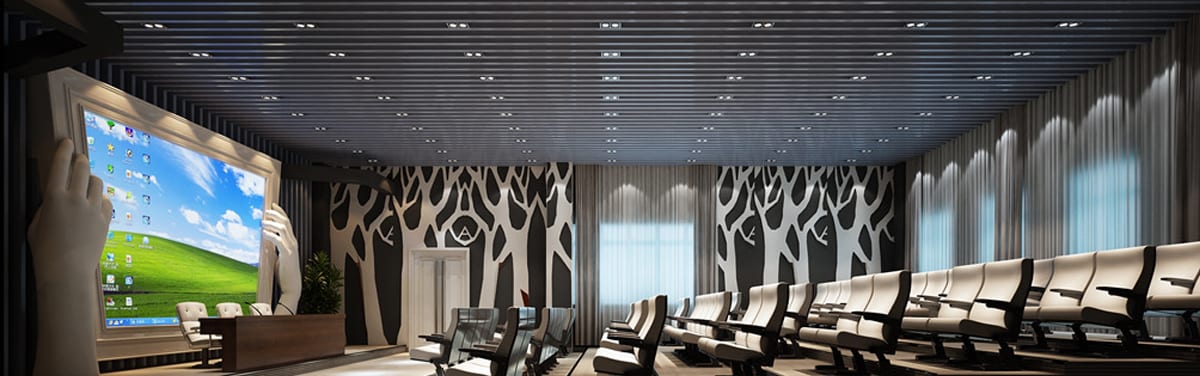

Recessed square LED downlight is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.

Product detail pictures:
