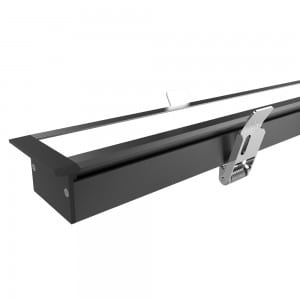

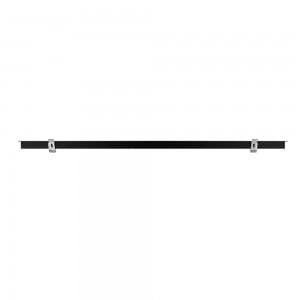

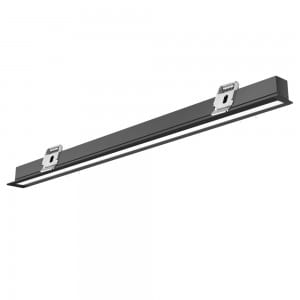

Recessed Linear LED downlight DL30 Shenzhen LED SMD OSRAM led grille lighting led
Features:
- Original Osram chipset.
- It takes high brightness led lamp.
- Use constant current driver. No flicker, no glare, very soft and even light.
- High light efficiency, low power consumption, save much energy.
- Lift time could reach 50,000 hrs.
- Easily installation.
TL;DR — Recessed Linear LED downlight DL30 Shenzhen LED SMD OSRAM led grille lighting led: 30 W · 2700 lm · IP40 · 100° · 3000K / 4000K / 6000K · ≥ 50000 H(Ta=30°C@L70). Warranty: 3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS, SASO, ETL, DLC and SAA certified. OEM/ODM available — email [email protected] for factory-direct pricing.TL;DR — quick summary:
| Model | LL-DL30-10-F | LL-DL30-12-F | LL-DL30-15-F |
| Power（±10%） | 30W | 40W | 50W |
| Product Dimension | W55.5*H30*L1025mm | W55.5*H30*L1225mm | W55.5*H30*L1525mm |
| Input(Frequency) | AC 220-240V（50/60Hz） | ||
| Lumen | 2700lm | 3600lm | 4500lm |
| Luminous Efficacy | 90lm/w | 90lm/w | 90lm/w |
| PF | >0.9 | ||
| LED Type | OSRAM SMD2835 | OSRAM SMD2835 | OSRAM SMD2835 |
| LED Q‘ty | 140 PCS | 196 PCS | 224 PCS |
| CCT(K) | 3000K / 4000K / 6000K | ||
| CIR(Ra) | ≥80 | ||
| Beam angle | 100° | ||
| Working Temperature | -30℃～45℃ | ||
| Storage Temperature | -40℃～70℃ | ||
| LED Driver | OSRAM X-power / Lifud | ||
| Life span of Light Source | ≧50000 H(Ta=30°C@L70) | ||
| IP Grade | IP40 | ||
| Body Materials | Aluminum Alloy + PC | ||
| Certificate | CE, Rohs | ||
Purchase information:
Key specifications: 30 W · 2700 lm · IP40 · 100° · 3000K / 4000K / 6000K · ≥ 50000 H(Ta=30°C@L70).
| Model | LL-DL30-10-F |
| Warranty | 3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting |
| Samples | Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS |
| Payment | T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000 |
| MOQ / lead time | Quoted per model and configuration — email [email protected] |
Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS, SASO, ETL, DLC, SAA). Purchase terms: see the purchase FAQ.
Frequently asked questions:
What is the MOQ for this panel, track or downlight model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.
What is the lead time for this panel, track or downlight model?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.
Which certificates do you provide for the panel, track or downlight model?
CE, RoHS, SASO, ETL, DLC and SAA as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.
Can you customize this panel, track or downlight model (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.
What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.
Is this fixture flicker-free for office and retail use?
Most indoor models use flicker-free drivers, and UGR<19 options are available for panel lights. Tell us your glare or flicker requirement and we confirm the matching model and test report.
Which CRI options are available?
CRI 80+ is standard and CRI90 options are available on selected models; the CRI of this model is listed in the specification table above. For retail or gallery projects requiring high colour rendering, tell us and we confirm the matching model.
Can you supply custom sizes, CCT or output?
Yes. Custom size, wattage, CCT (2700K-6500K), CRI and housing colour are available for OEM orders. Send your specification to [email protected] and we reply within 12 hours.
Which supply voltage versions are available?
Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.
About the manufacturer:
Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS, SASO, ETL, DLC, SAA certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.
What customers say:
— Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia
From our own factory (production, aging test & shipment):
Size:
Unit: mm
Application:
Recessed Linear LED downlight is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
