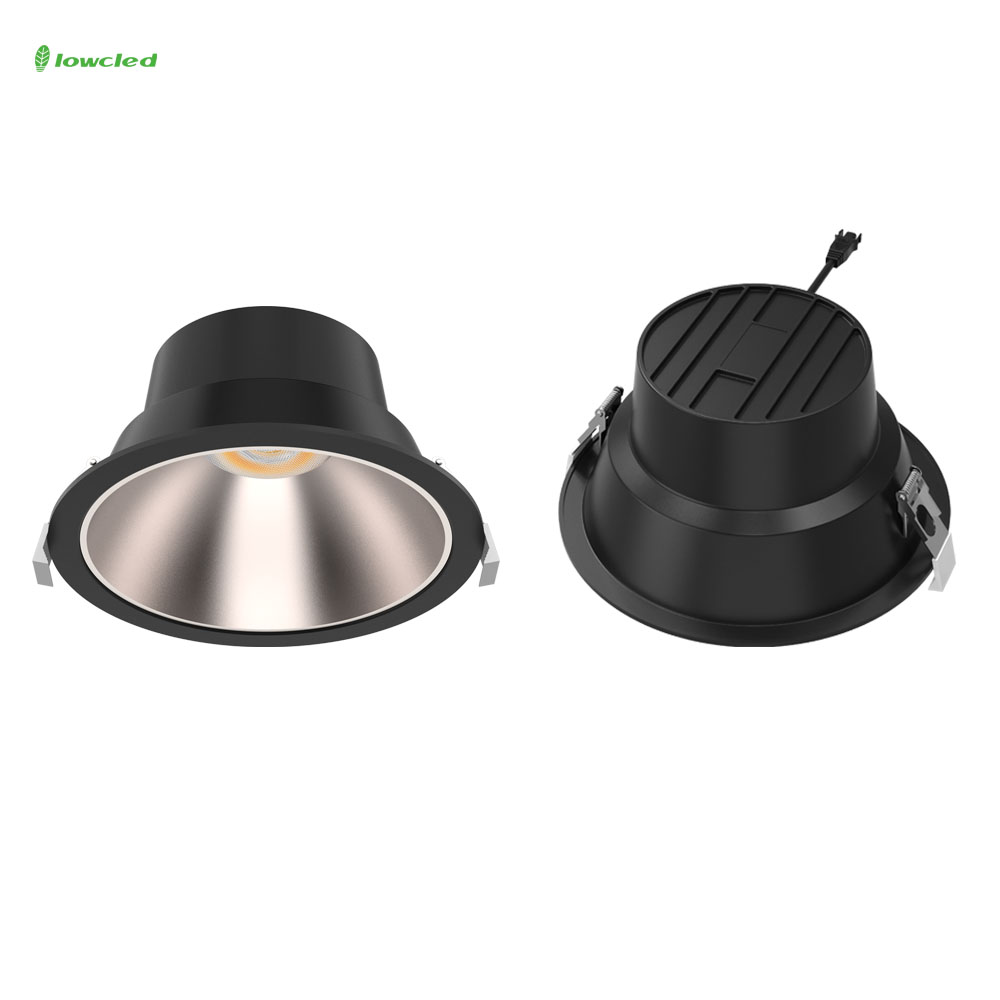

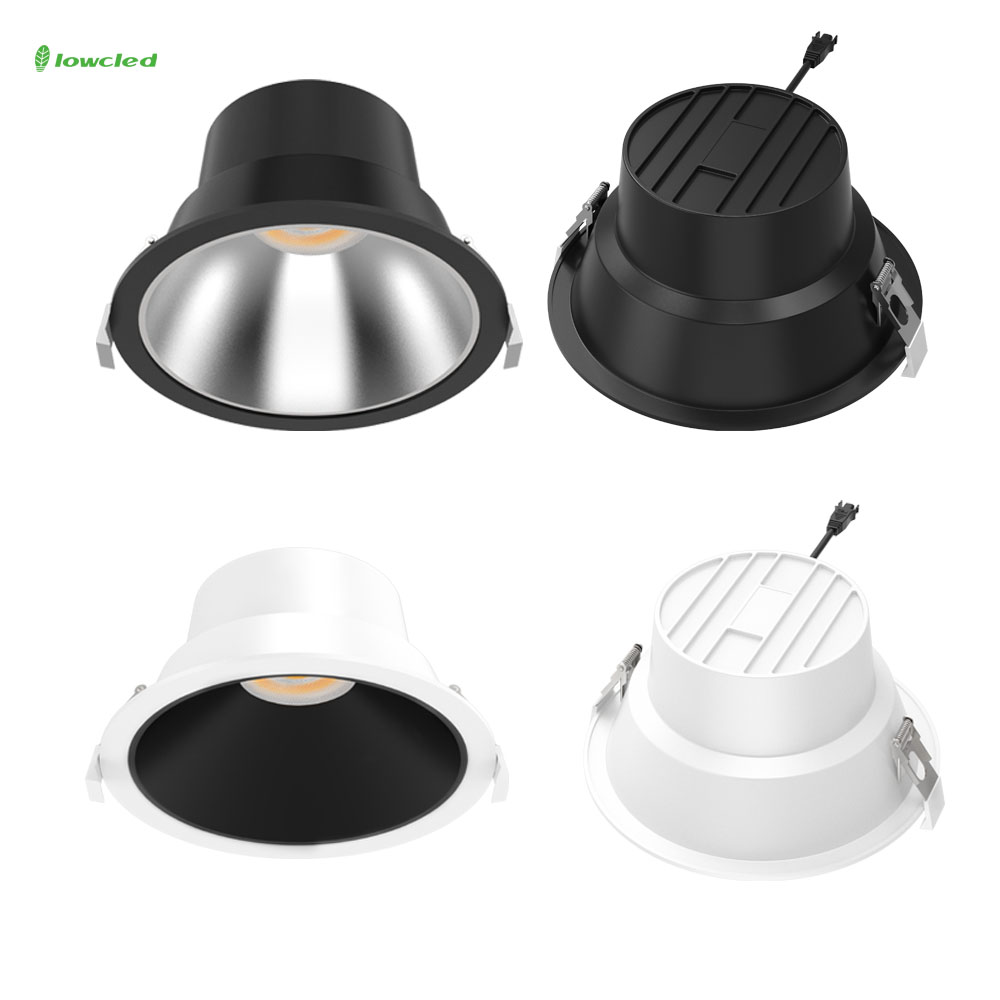

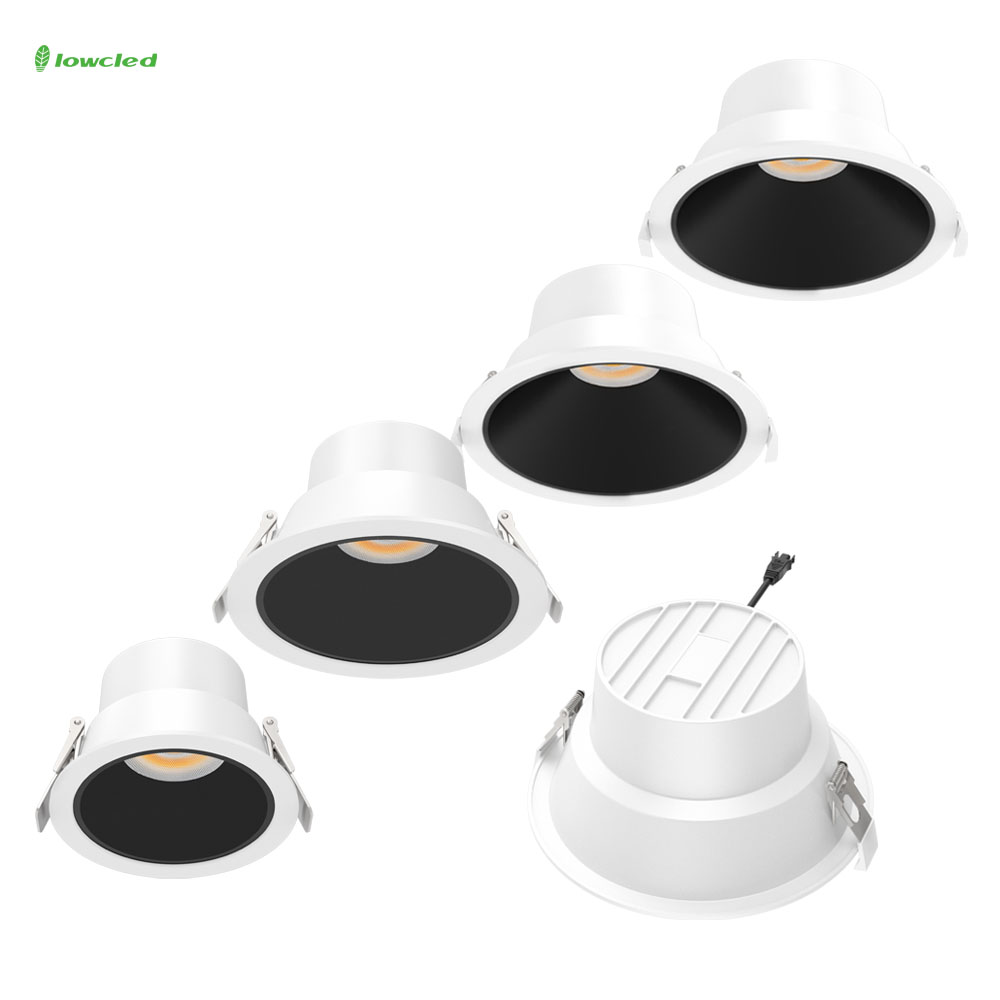

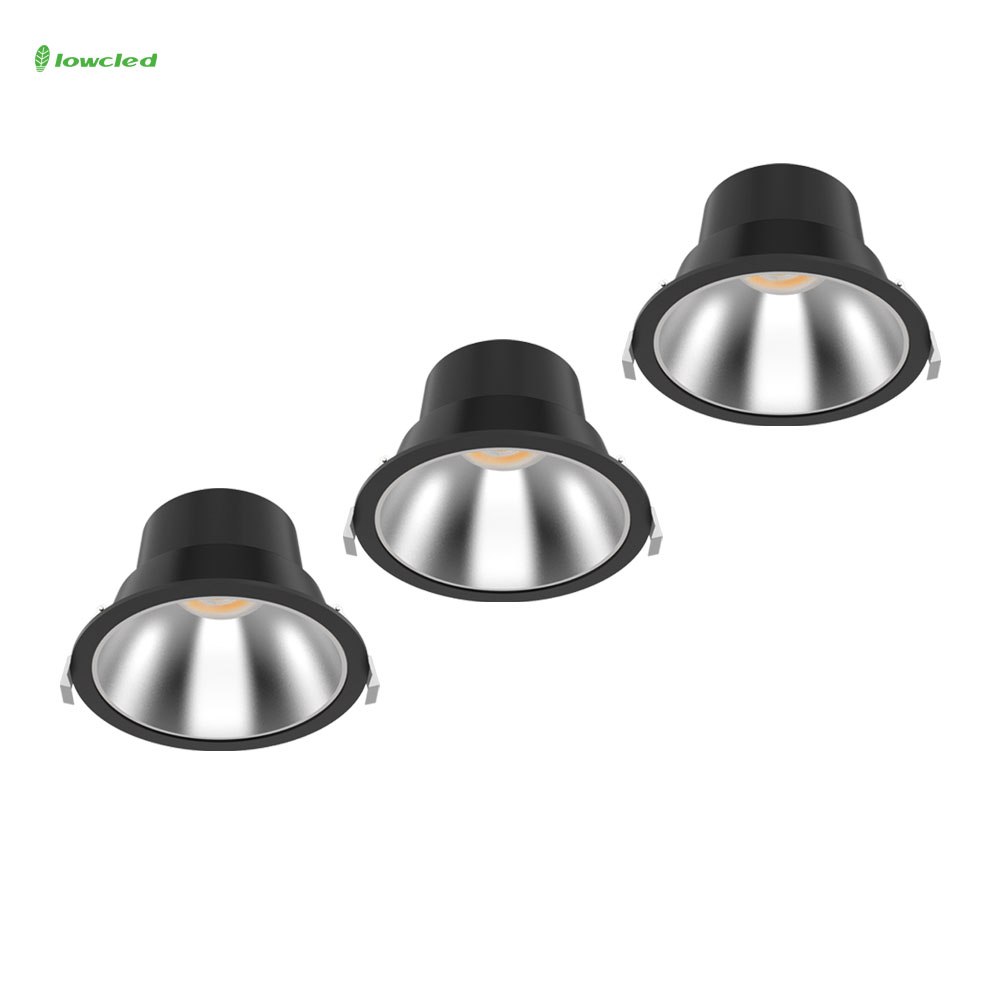

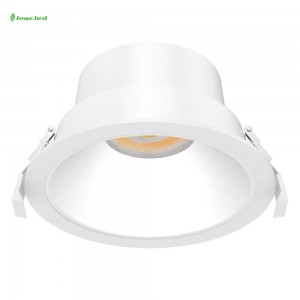

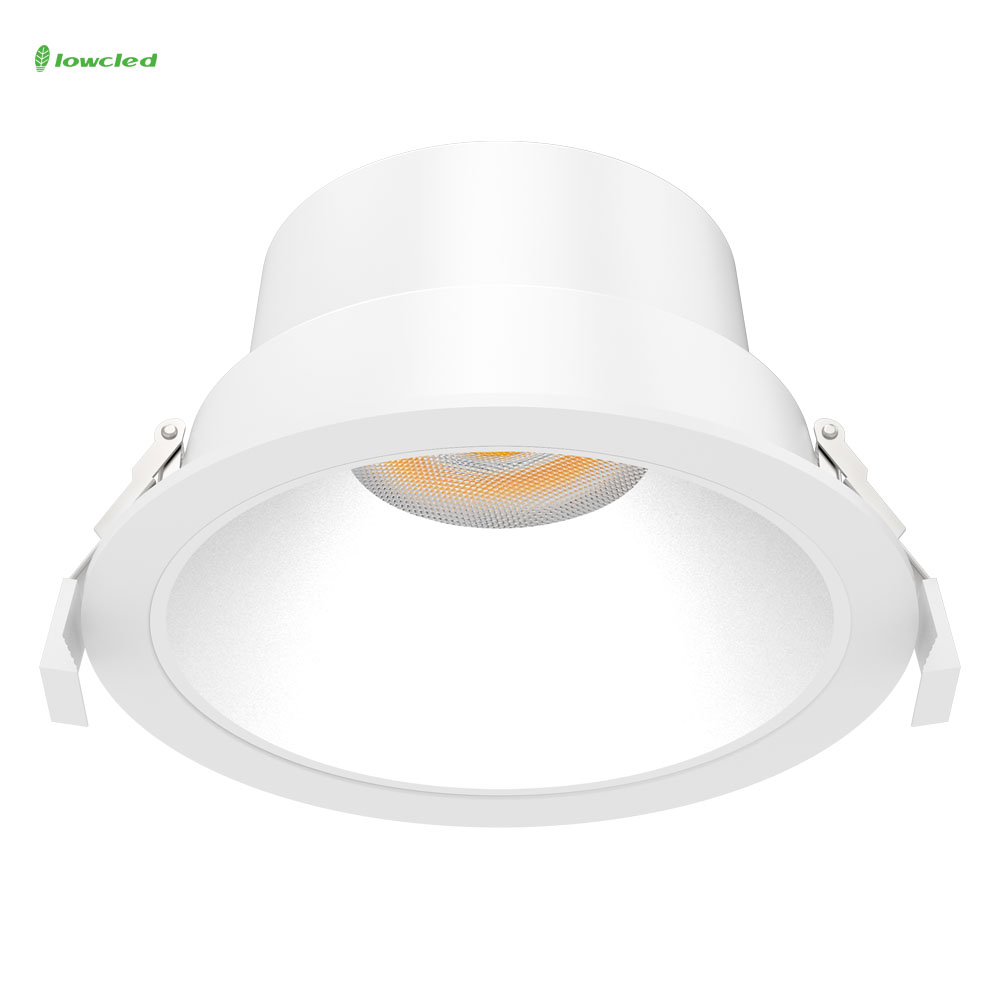

Round LED downlight D100

Short Description:

CRI: 80+ ,90+(3000K/4000K/5000K)
LED brand: Bridgelux, CREE, Luminus
Beam angle: 15° / 24° / 38° / 60° are available
Die-casting aluminum housing
Good quality driver, flicker-free, PF>0.95
High luminous efficiency: 90-110lm/W @CRI80 (whole lamp)
Wattage: 10W, 15W

Description: Round COB LED downlight

Send email to us

Product Detail

Product Tags

Features:

1. COB Round LED downlight.

2. The Kit includes a flicker-free driver and a die-casting aluminum integrated cooling radiator and solid mounting clips. The housing is finished with an internal reflector and tempered glass that provides glare free and uniform light distribution.

3. The housing is IP20 and completely closed so that insects can not penetrate.

4. With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications.

Specification

Series	D100 series
Item	LL-DL100-10W-AG	LL-DL100-15W-AG
Power	10W	15W
Materials	ADC12 Die cast Aluminum
Size	D100xH67mm
Cut out	∅90mm
LED brand	Citizen, Bridgelux, CREE, Philips, Luminus, Tridonic etc
CCT	2700K,3000K,3500K,4000K,5000K,6500K
CRI	CRI80+, CRI90+, CRI95+ CRI98+
SDCM	<3
Optics	PC Lens + reflector
Beam angle	15/24/38/60degree
LED lumen	100-180lm/W
Lamp lumen	80-130lm/W
Driver	Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud
Voltage	AC200-240V, AC100-240V
Power factor	PF>0.9
Dimmable	DALI, TRIAC, 0/1-10V, ZigBee, BLE, 2.4G, DMX
Color output	Single color, Tunable white, Dim to warm, Tri-color
Pan/tilt range	Fixed
Finish	Matt White, Matt Black
Warranty	5 years

Purchase information:

Key specifications: 10 W · 15/24/38/60degree · 2700K,3000K,3500K,4000K,5000K,6500K.

Warranty	5 years
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
5 years.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

Size:

Unit: mm

Application:

LED downlight is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
