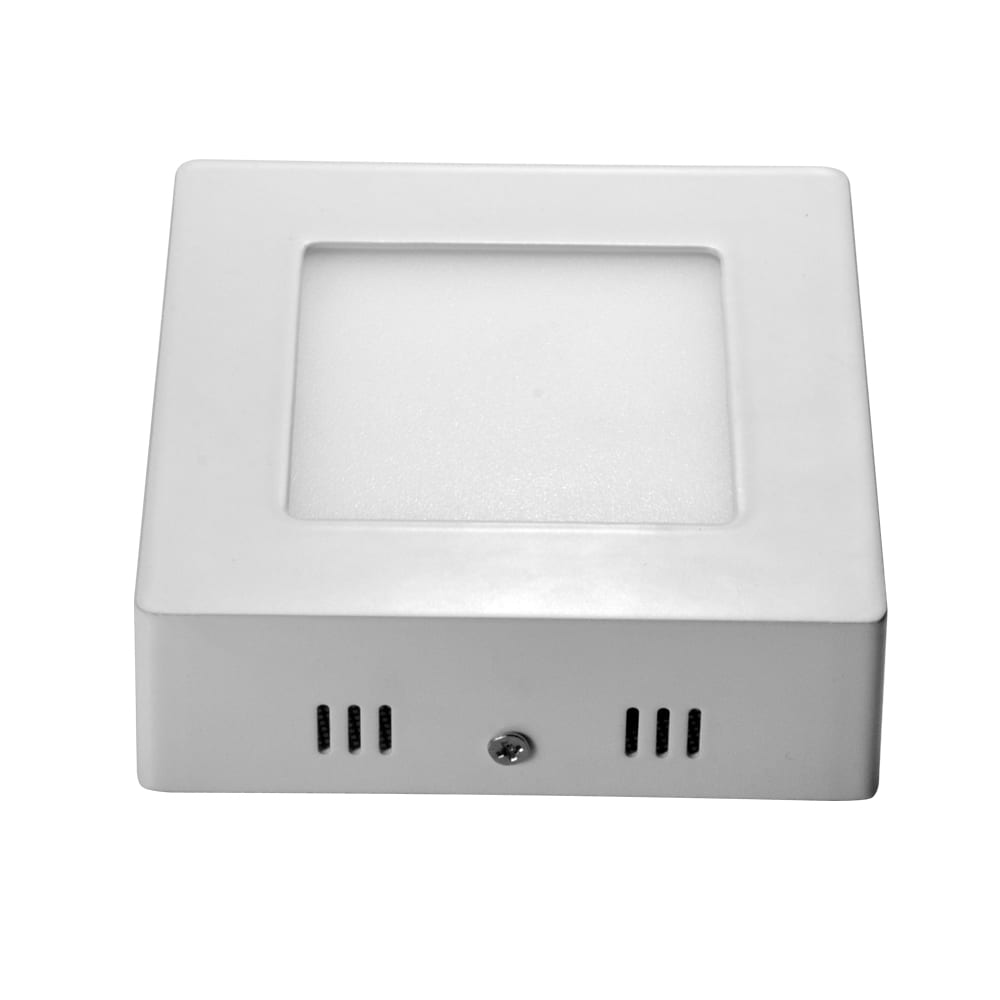

Surface mounted square 6W LED Panel Light Surface mounted installation ceiling lamp 6watt led panel lights

Short Description:

  • Surface mounted square LED panel light.

  • High efficiency & energy saving. Under the condition of the same illumination, it saves more than 67% energy compared with the traditional lamp.
  • No UV & IR . It won’t distribute ray radiation.
  • Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won’t generate EMI.
  • High-performance external constant current driver, flat and smooth frame, very easy to clean.

  • Shipping Port: Shenzhen
  • Description: Surface mounted square 6W LED Panel Light
  • Product Detail

    Product Tags


    1. Led panel uses aerometal shell, very simple and fashionable.

    2. Different sprayed colors available for your choice.
    3. It takes high brightness led lamp, side-emitting design,ultra thin height.
    4. Use constant current driver. No flicker, no glare, very soft and even light.
    5. High light efficiency, low power consumption, save much energy.
    6. Lift time could reach 50,000 hrs.
    7. Easily embedded installation.


    Model LL-SPLS-120X120
    Power(±10%) 6W
    Input(Frequency) AC 100-240V(50/60Hz)
    Lumen 300±50lm
    Input Current 0.04A
    Output Voltage DC36-65V
    Output Current 300mA
    PF >0.9
    Efficiency η>0.85
    LED Type SMD2835
    LED Q‘ty 20 PCS
    CCT(K) 3000K / 4000K / 6000K
    CIR(Ra) ≥80
    Beam angle 120°
    Working Temperature -25℃~60℃
    Storage Temperature -40℃~80℃
    Lumen Maintenance >85% (5000Hrs)
    Life span of Light Source ≧50000 H
    IP Grade IP54
    Body Materials Aluminum Alloy + acrylic
    Product Dimension 120*120*40mm
    Carton Size 530*322*173mm(20pcs)
    Gross Weight 8 kg (20pcs)


    LED panel light is used for place of Hotel, meeting room, factory, office, bar, coffee house, residential, show room, Institution Buildings, School, hospital, Places where there require high rendering index and energy-saving lighting fixtures.

    led panel light application
