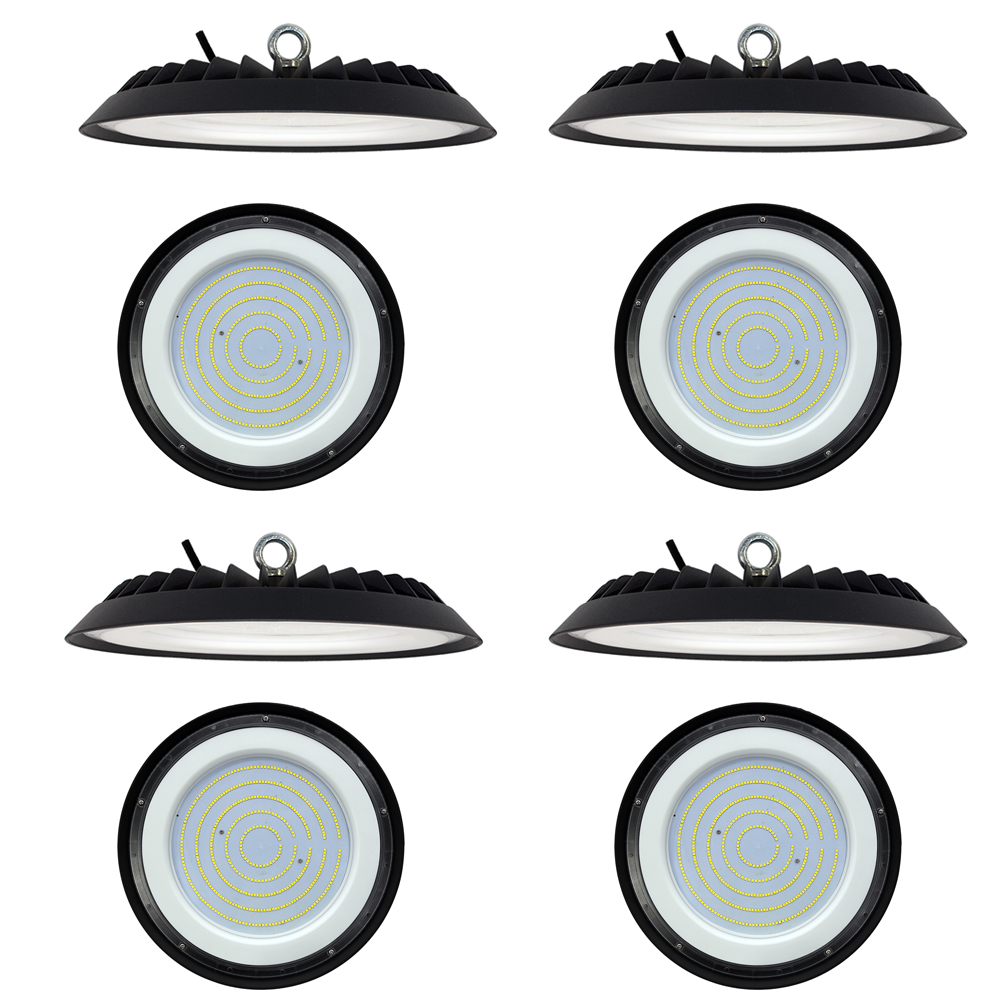

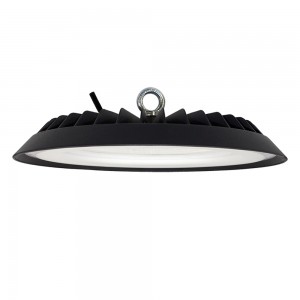

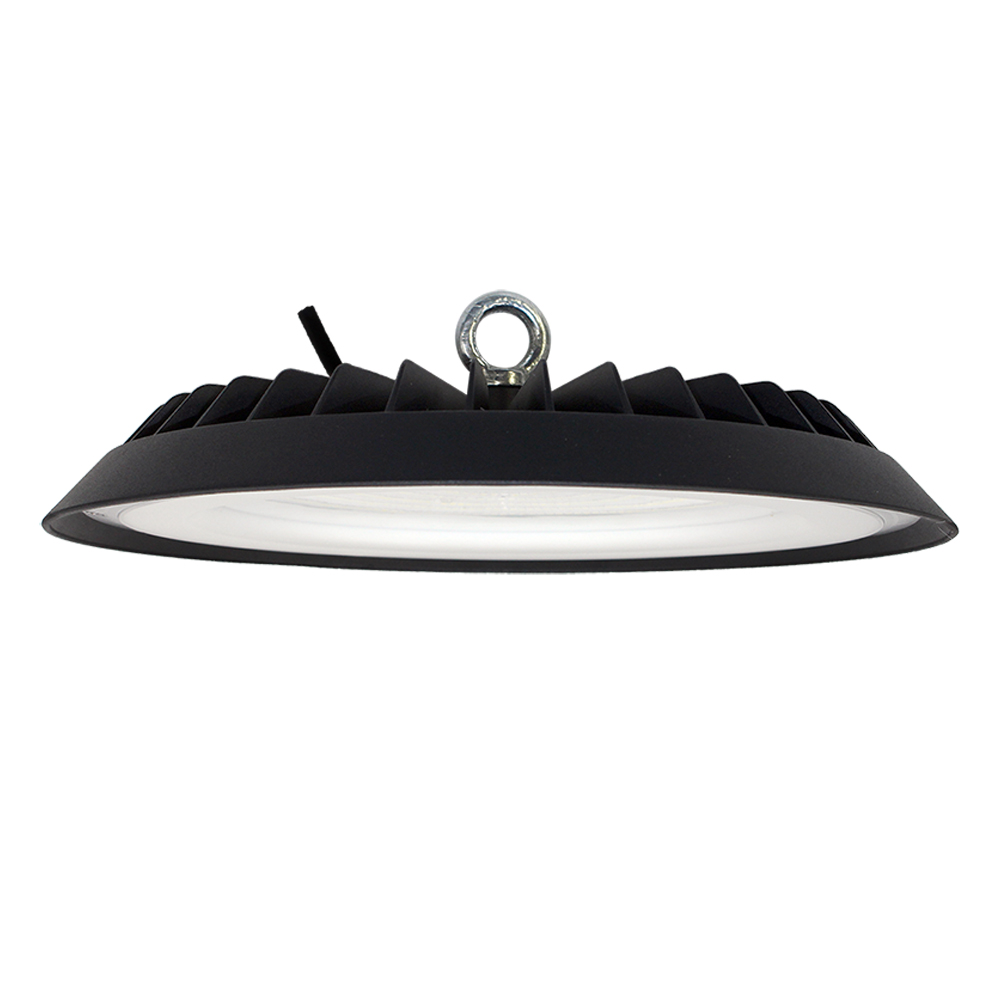

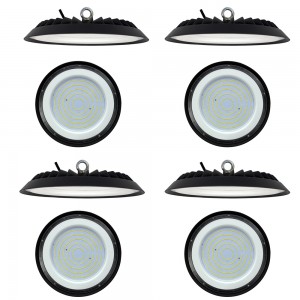

140LM/W 100W-240W UFO LED Industrial High Bay Light
Features:

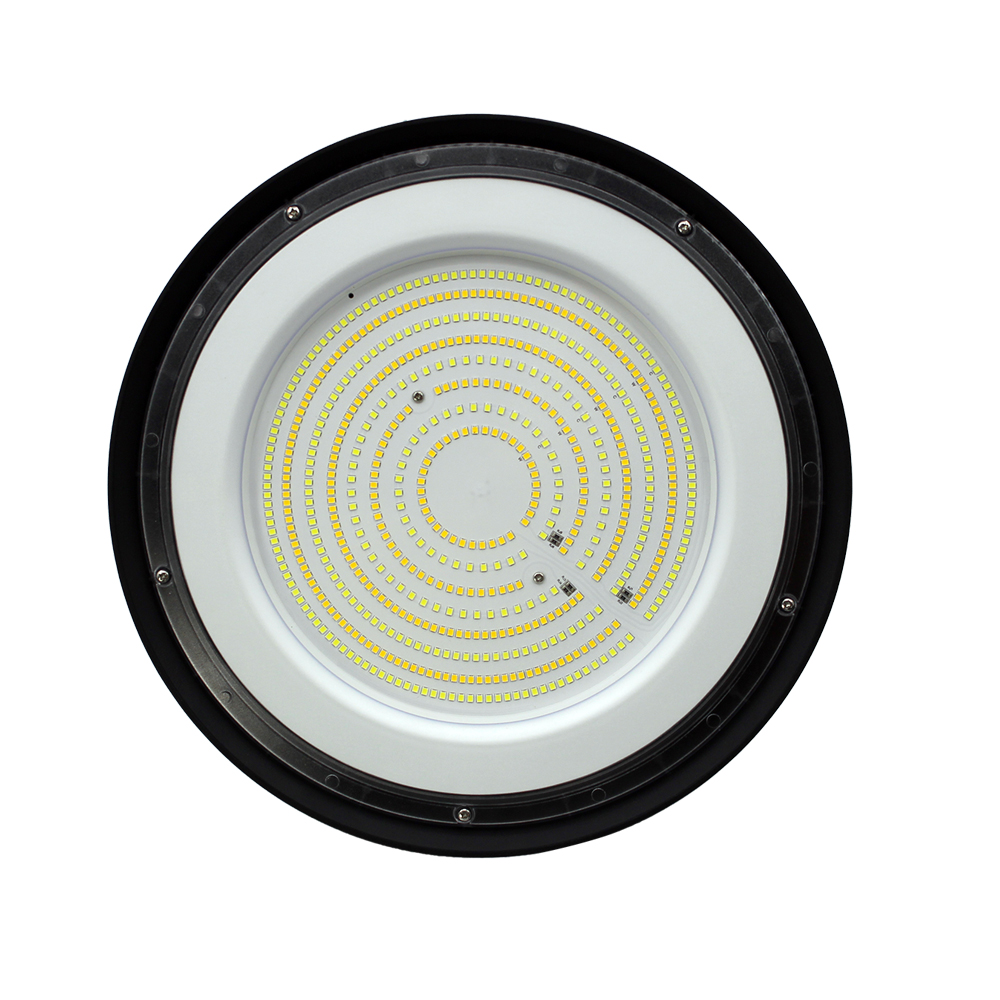

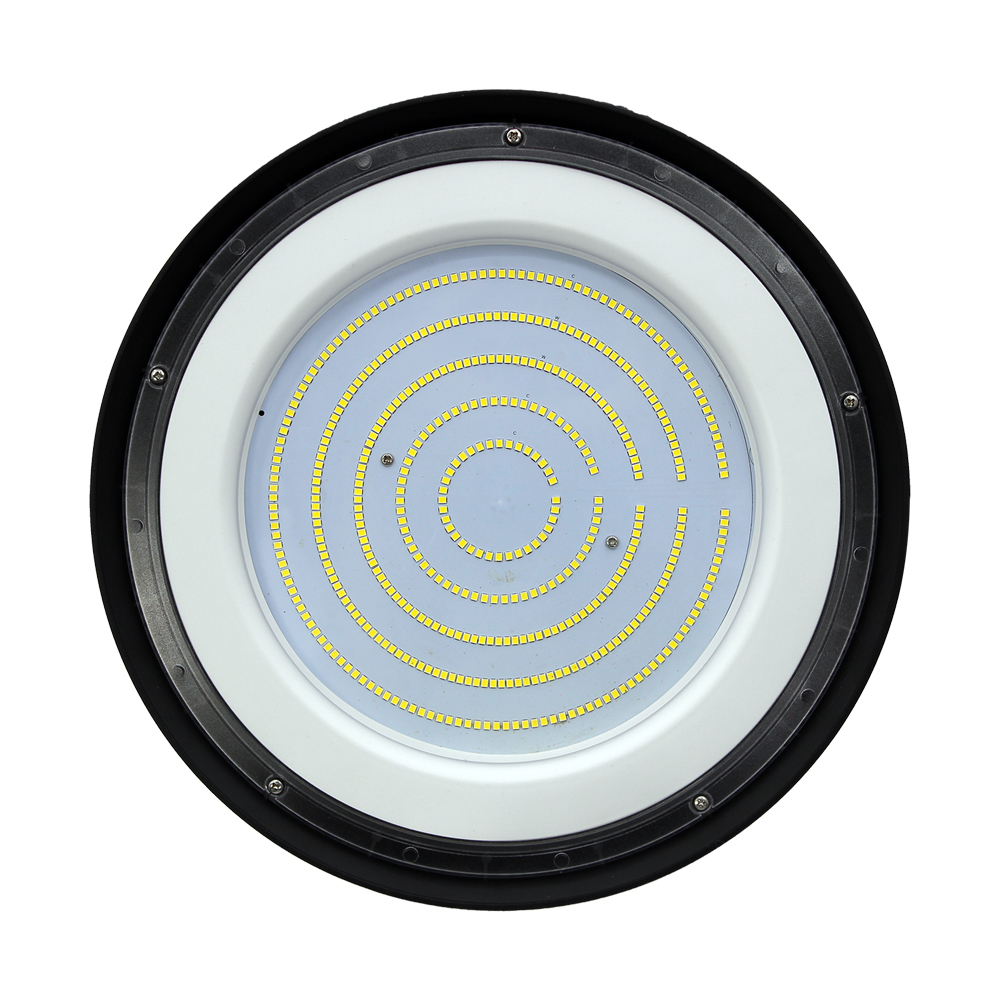

- Adopts high quality SMD2835 LED chipset.
- Universal Constant Current Voltage 100-277V / 277-480V / 120-347V, 50/60Hz.

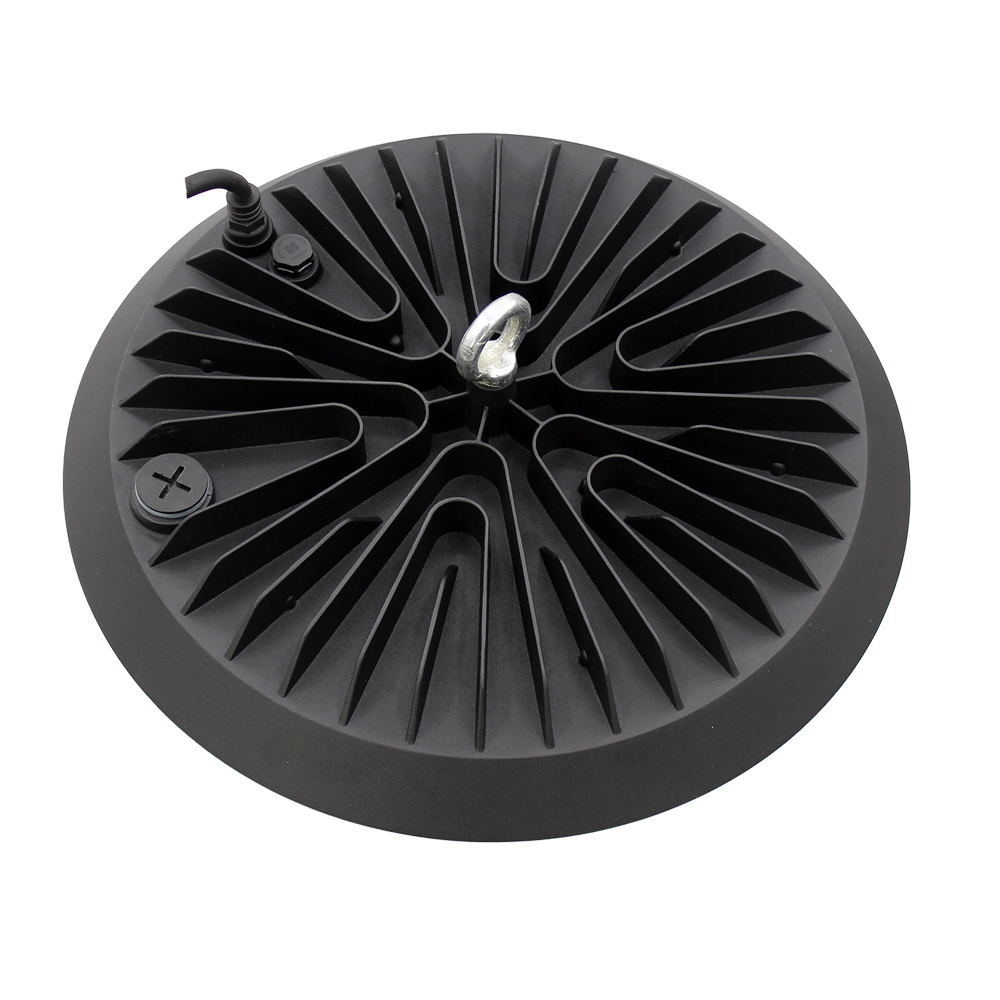

- The structural design with high strength, high efficient reflector can ensure product heat dissipation, water resistance, impact resistance and other comprehensive performance.
- Power factor is ≥0.95.
- Temperature of Working Condition: -40℃+50℃.
- Sealing with glue, the protection grade is IP65.
- 50,000 hours lifetime
TL;DR — 140 lm/W 100 W-240 W UFO LED Industrial High Bay Light: 100 W · 14000 lm-19000 lm · 120º · 3000-6500K. Warranty: 5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS, SASO, ETL, DLC and SAA certified. OEM/ODM available — email [email protected] for factory-direct pricing.TL;DR — quick summary:
| Model | LL-UFO100-T | LL-UFO150-T | LL-UFO200-T | LL-UFO240-T | |
| Wattage | 100W | 150W | 200W | 240W | |
| Input Voltage | 120-277V/277-480V/120-347V | ||||
| Luminous Flux | 14000lm-19000lm | 21000lm-28500lm | 28000lm-38000lm | 33600lm-45600lm | |
| Color Temperature | 3000-6500K | ||||
| Beam Angle | 120º | ||||
| CRI | >70(Ra80 or Ra90 optional) | ||||
| PF | ≥0.95 | ||||
| Operation Temperature | -40℃~50℃ | ||||
| Net Weigh(kg/lbs) | 1.1/2.4 | 1.1/2.4 | 1.45/3.2 | 1.45/3.2 | |
| GrossWeight(kg/lbs) | 1.6/3.5 | 1.6/3.5 | 2/4.4 | 2/4.4 | |
| Size of box(mm/in) | 310*310*105/12.2*12.2*4.1 | 310*310*105/12.2*12.2*4.1 | 355*355*110/14.0*14.0*4.3 | 355*355*110/14.0*14.0*4.3 | |
Purchase information:
Key specifications: 100 W · 14000 lm-19000 lm · 120º · 3000-6500K.
| Model | LL-UFO100-T |
| Warranty | 5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting |
| Samples | Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS |
| Payment | T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000 |
| MOQ / lead time | Quoted per model and configuration — email [email protected] |
Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS, SASO, ETL, DLC, SAA). Purchase terms: see the purchase FAQ.
Frequently asked questions:
What is the MOQ for this UFO high bay light model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.
What is the lead time for this UFO high bay light model?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.
Which certificates do you provide for the UFO high bay light model?
CE, RoHS, SASO, ETL, DLC and SAA as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.
Can you customize this UFO high bay light model (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.
What warranty applies to this product?
5-7 years for outdoor lighting (flood, street, high bay, stadium); 3-5 years for indoor lighting.
What mounting height is this high bay designed for?
Recommended mounting height depends on the wattage and beam angle; the lumen output of each model is listed in the specification table above. Send your ceiling height and target lux level and we return a fixture count with a DIALux layout together with the quotation.
Can the high bay be dimmed or controlled by motion sensors?
Most high bay models support 0-10V dimming and can be ordered with a motion sensor or DALI control. Tell us your control requirements and we confirm the available version.
Which supply voltage versions are available?
Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.
Do you provide IES photometric files for warehouse lighting design?
IES files and LM-79 reports are available on request for most models. Send your racking layout, aisle width and target lux level, and we return a fixture count with a DIALux or AGi32 layout together with the quotation.
About the manufacturer:
Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS, SASO, ETL, DLC, SAA certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.
What customers say:
— Verified buyer · Middle East · Repeat customer · high bay lighting
— Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia
From our own factory (production, aging test & shipment):

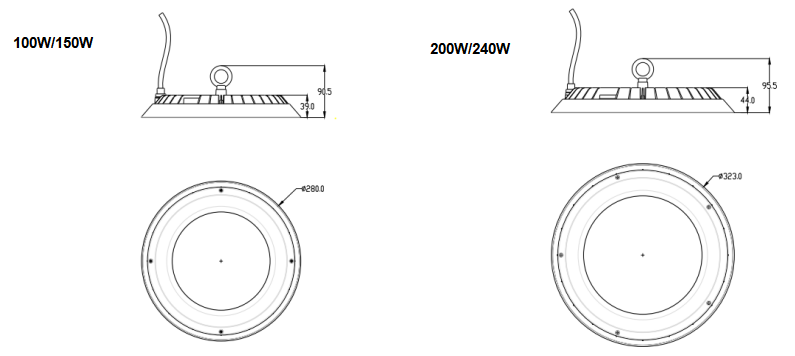

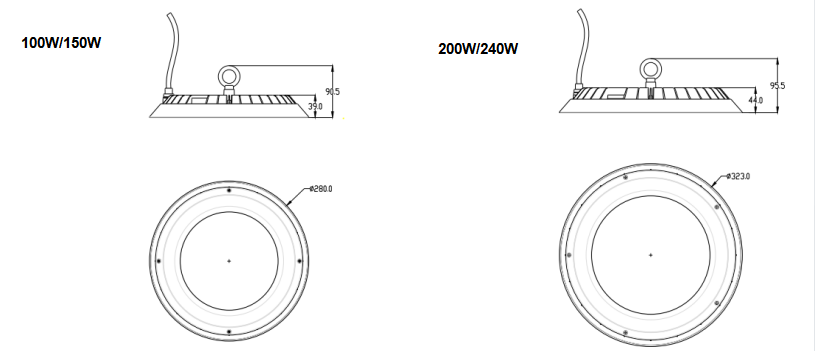

Size:
Unit: mm/in
Application:
UFO LED High Bay Light is widely used for Factories, mines, oil, chemical workshops, storerooms, highway toll stations, gas stations, supermarkets, exhibition Hall and other inflammable and explosive places for lighting.
