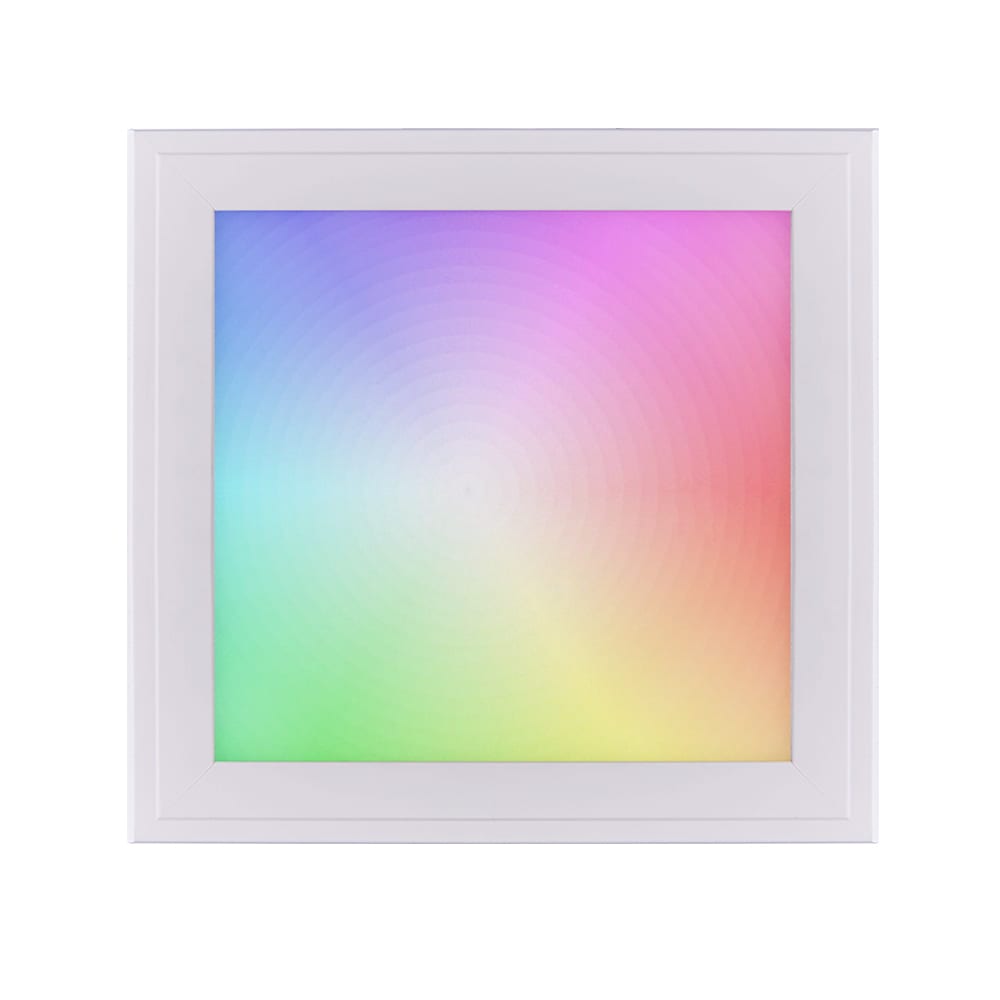

20W 300×300 RGBW smart led panel light colorful smart LED panel lamp Bluetooth Wifi
Description:
LOWCLED Smart LED Panel Light uses aero metal shell, very simple and fashionable. Use constant current and constant voltage driver. Loading the mobile phone Bluetooth APP remote control system, can realize the set of RGB color, and long-distance electrodeless dimming control of color temperature, and various music scene mode, for single product control distance is 15~20 meters, with network function, can be controlled through signal transmission between the products, so as to realize the different application of lighting in rooms.
LED Smart Series products:
- True color of 16,000, 000 kinds
- Smart color adjustable
- Group or individual control
- Smart touch
- Smart dimmable
- Ad-Hoc network
TL;DR — 20 W 300×300 RGBW smart led panel light colorful smart LED panel lamp Bluetooth Wifi: 20 W · IP20 · 110° · RGB/2700-6500K · ≥ 50000 H. Warranty: 3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS, SASO, ETL, DLC and SAA certified. OEM/ODM available — email [email protected] for factory-direct pricing.TL;DR — quick summary:
| Model | LL-BPL-295X295-RGB-20W |
| Power（±10%） | 20W |
| Input(Frequency) | AC 220-240V（50/60Hz） |
| Input Current | 0.1A |
| Output Voltage | DC20-36V |
| Output Current | 650mA |
| PF | >0.9 |
| LED Type | SMD2835 +RGB3528 |
| CCT(K) | RGB/2700-6500K |
| Brightness | 1%-100% |
| CIR(Ra) | ≥80 |
| Beam angle | 110° |
| Working Temperature | -20℃～45℃ |
| Storage Temperature | -30℃～60℃ |
| Life span of Light Source | ≧50000 H |
| IP Grade | IP20 |
| Function options | Bluetooth APP(Android&iOS) |
| Body Materials | Aluminum |
| Mounting | Recessed |
| Product Dimension | 295*295*10.7mm |
| Carton Size | 430*390*340mm(10pcs) |
| Gross Weight | 13 kg (10pcs) |
Purchase information:
Key specifications: 20 W · IP20 · 110° · RGB/2700-6500K · ≥ 50000 H.
| Model | LL-BPL-295X295-RGB-20W |
| Warranty | 3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting |
| Samples | Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS |
| Payment | T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000 |
| MOQ / lead time | Quoted per model and configuration — email [email protected] |
Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS, SASO, ETL, DLC, SAA). Purchase terms: see the purchase FAQ.
Frequently asked questions:
What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.
What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.
Which certificates do you provide?
CE, RoHS, SASO, ETL, DLC and SAA as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.
Can you supply the voltage version my project requires?
Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.
Do you provide IES photometric files and a lighting layout?
IES files and LM-79 reports are available on request for most models. Send the drawing or site plan, ceiling or pole height, mounting details and the target lux or foot-candle level, and we return a fixture count with a DIALux, Relux or AGi32 layout together with the quotation.
Is this fixture DLC listed for utility rebate eligibility?
DLC listing applies to specific model numbers rather than to a whole range. Tell us the project state or the utility rebate programme and we confirm which listed model number applies before you order.
What mounting options are available for this model?
Mounting depends on the model: bracket or yoke, chain or pendant, slip fitter, trunnion, surface or recessed mounting. The specification table above lists the standard option; ask us for the mounting drawing of the exact model if it has to match existing poles, junction boxes or ceiling grids.
What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.
Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.
About the manufacturer:
Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS, SASO, ETL, DLC, SAA certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.
What customers say:
— Verified buyer · Ghana · Quality approved · LED panel light
— Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia
From our own factory (production, aging test & shipment):
Features:
Smart phone(Android & IOS) : controlled lights with MESH LAMP APP.
CCT adjustable: RGB plus from 2700K to 6500K, freely and stepless dimmable.
Brightness: can be adjusted from 2% to 100%. Perfectly replace Thyristor dimming.
Personalize lighting: with 16+ millions of colors plus 2700K to 6500K.
Timer function: Setting lights on/off automatically.
Control: The bulbs can be controlled by several smart phones; Grouping control and setting.
Support：For adding new group, share group, home system encryption and avoid malicious control by strangers. Achieving interaction between human and smart bulb. Customize breath, alarm clock, circadian rhythm, music, game and other personalized functions.
Customize color as you like:
Customize and Set Scenes
Change color and intensity as you wish, navigate tunable white light from warm to cool until you feel comfortable.Your favorite settings will be saved as scenes accessible in APP.
Size:
Unit: mm
Operation:
In the control interface, clicking the button on the upper right corner of the device, you can modify the device's name; clicking and select the appropriate room, you can add or remove the device from the appropriate room.
Compatibility
Compatible with Android, ios, Amazon Alexa and Google Assistant.
Enjoy smart life anywhere and any time!
Application:
LED smart downlights are widely used as indoor illumination lighting in LED Bathroom Lighting, Residential Ceiling Down Lighting, Commercial Ceiling Down Lighting, Living Room Lighting, Office LED Lighting, Home Theater LED Lights, Den Lighting, LED Kitchen Lighting, Pot Lights, shopping malls, art gallery, showroom, factories, supermarkets, the exhibitions, school,hotel, etc.
