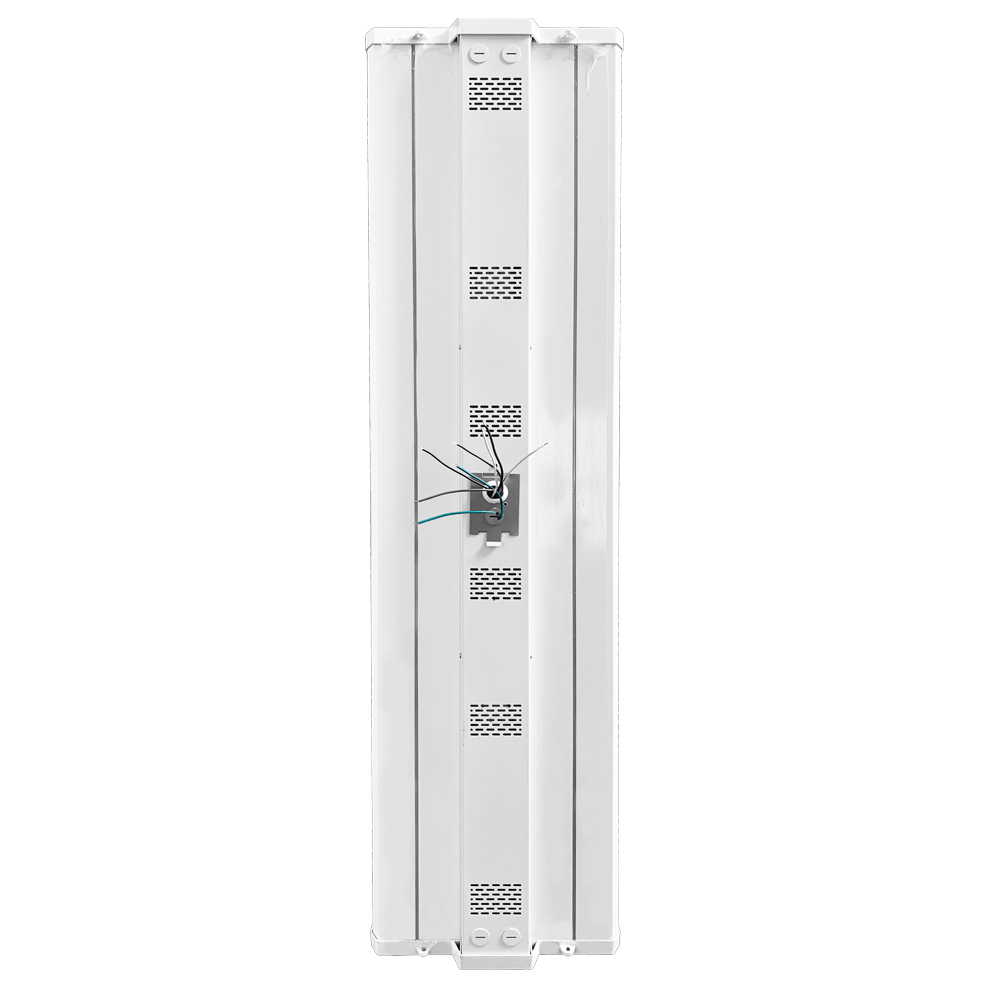

400W Linear High Bay Light

Short Description:

  • High efficacy,130lm/w.
  • 100W-400W available.
  • Uniform lighting effect.
  • Quick starting. No stroboscopic effect; no glare.
  • High heat-sink efficiency: use thermal column to help heat sink.
  • No mercury or lead; environmental protecting.
  • Save 60% energy than conventional light. Green technology conforms to the rule of RoHS.
  • 5 years warranty.

  • Shipping Port: Shenzhen
  • Description: 400W Linear High Bay Light
  • Model: LL-LHB-400W
  • Product Detail

    Product Tags


    1. Lowcled LED linear high bay light series adopts high quality Philips LED chipset.
    2. Universal Constant Current Voltage 100-240VAC, 50/60Hz.
    3. Optical lens in 120°, fit with different application.
    4.  1-10v dimming,and high bay sensor with photocell.
    5. High lumen LM80 listed LED in 130 lm/w, CRI>80 Ra.
    6. Collision protection level: IK08.
    7. Whole series in 100~400W, high wattage industrial lighting is available.
    8. High efficient driver providing 5 years warranty.
    9. Power factor is >0.9.
    10. Temperature of Working Condition: -40℃+45℃.
    11. 50,000 hours lifetime.


    Model LL-LHB-400W
    Power 400W
    Driver Meanwell
    Luminous Flux 52000lm
    Luminous Efficacy 130 lm/w
    Input Voltage 100-240VAC
    Frequency 50/60Hz
    Power Factor ≥0.95
    Total Harmonic Distortion <20%
    Color Temperature 3000/4000/5700/6500K
    CRI >80
    Beam Angle 120°
    IP Level IP54
    Raw Material ADC12/AL6063
    Lifespan 50,000h
    Dimension L1215*W319*H59mm
    Weight 8.3 kg
    Q‘ty/Carton 1 pcs
    Gross Weight 9.2 kg

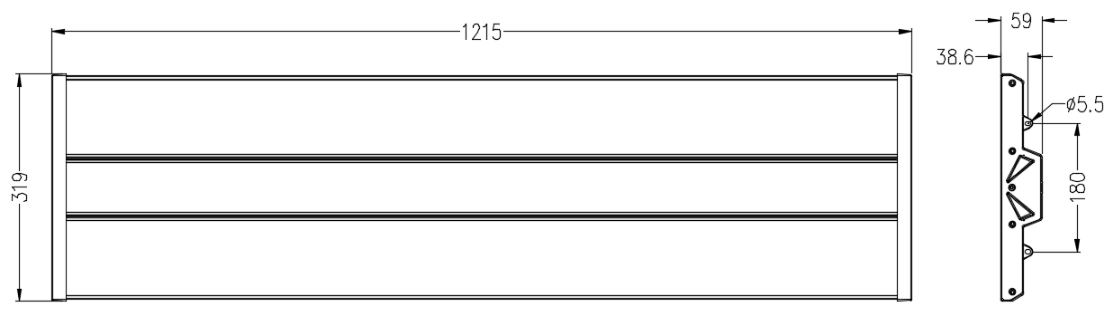

    Unit: mm


    LOWCLED Linear LED High Bay Light is widely used for Factories, mines, oil, chemical workshops, storerooms, highway toll stations, gas stations, supermarkets, airport, exhibition Hall and other inflammable and explosive places for lighting.
