60W Semi integrated Solar LED Street Light

Short Description:

  • High efficacy 130lm/w.

  • Brief Description: 60W Solar LED Sensor Light
  • Type: Street lights, Garden lights
  • Mounting Height: 7-9 meters
  • Net Weight: 13KG
  • LED Lumen: 6000-7000LM
  • Applications: gardens, streets, roads, community, parks, parking etc..
  • LED Lifespan: >50000H
  • Warranty: 3years


  • Shipping Port: Shenzhen
  • Description: Semi integrated solar LED Street Light
  • Model: LL-SMSL3-60W
  • Product Detail

    Product Tags

    Features:

    1. Based on the classic semi-integrated solar street light, this new product is a creative lighting fixture with features of elegant exterior design, die-casting aluminum housing and customized solar panel and functions of time control, light control, human infrared sensing and Bluetooth APP control.

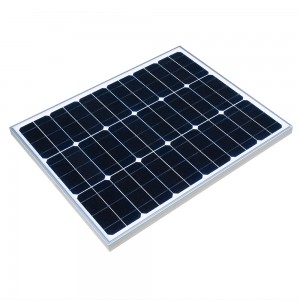

    2. The direction adjustable solar panel maximizes the solar cell charging efficiency.
    3. It can be matched with AC adaptor and used as a LED street light supplied by commercial electricity with its special controller.
    4. With 5050 LED, higher brightness and less energy consumption.

    Product structure

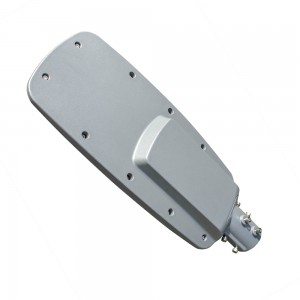

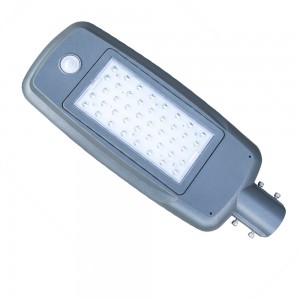

    The solar light with streamlined design is manufactured with an exclusive private mold and made of aluminum die casting housing.

    Structure

    Function characteristic

    Function 1

    Function 2

    Main components

    ComponentsComponents 3

    Specification

    Model NO.  LL-SMSL3-60W
    LED Chipset  5050 LED
    Chipset Q'ty  60PCS
    Light Efficiency  130LM/W±10LM
    Lumen  6000-7000LM
    Color Temperature  2800K-6500K
    CRI >70
    LED Lifespan 50000H
    Electrical characteristic Rated Power 60W
    Solar Panel Power 18V/70W
    Lithium Battery 12V 36AH
    Charge Time 7 Hours with summer's sunshine
    Discharging Time 3-10 rainy days, 12hours per night,Or you can set your lighting time via Mobile APP.
    Working Temparature  -30℃~+60℃
    Switch Threshold 15LUX
    Max sensing Distance ≦12M
    Mechanical Specification Product Size 633*250*90MM
    Solar Panel Size 670*647*30MM
    Net Weight 13KG
    Mounting Height 7-9M
    Pole Installation Distance 18-24m for one-side road lighting,40-50m for both-side road lighting.
    Packing Information Q'ty/carton 1PCS/CTN
    Carton Size(Solar panel) 705*725*220MM
    Gross Weight 16KG

    Size
    SMSL3 Size

    Unit: mm

    Application:

    Semi-integrated solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.
    application
