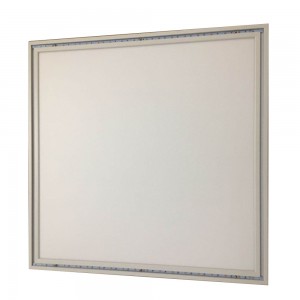

UVC LED Panel Light

Short Description:

Sterilization rate: 99%.
Raw material: Aluminum+3.0T PMMA.
Power:20W+10W(UVC)/40W+20W(UVC)/40W+20W(UVC).
Lumen efficacy: 100LM/W.
Voltage: 100-240VAC, 50/60Hz.
Size available:

295*595*12 mm / 595*595*12mm / 295*1195*12mm / 595*1195*12mm.
Sterilization rate: 99%.
Warranty: 3 years.

Shipping Port: Shenzhen

Description: UVC LED Panel Light

Send email to us

Product Detail

Product Tags

Features:

Both sterilization and illumination function are in one light.

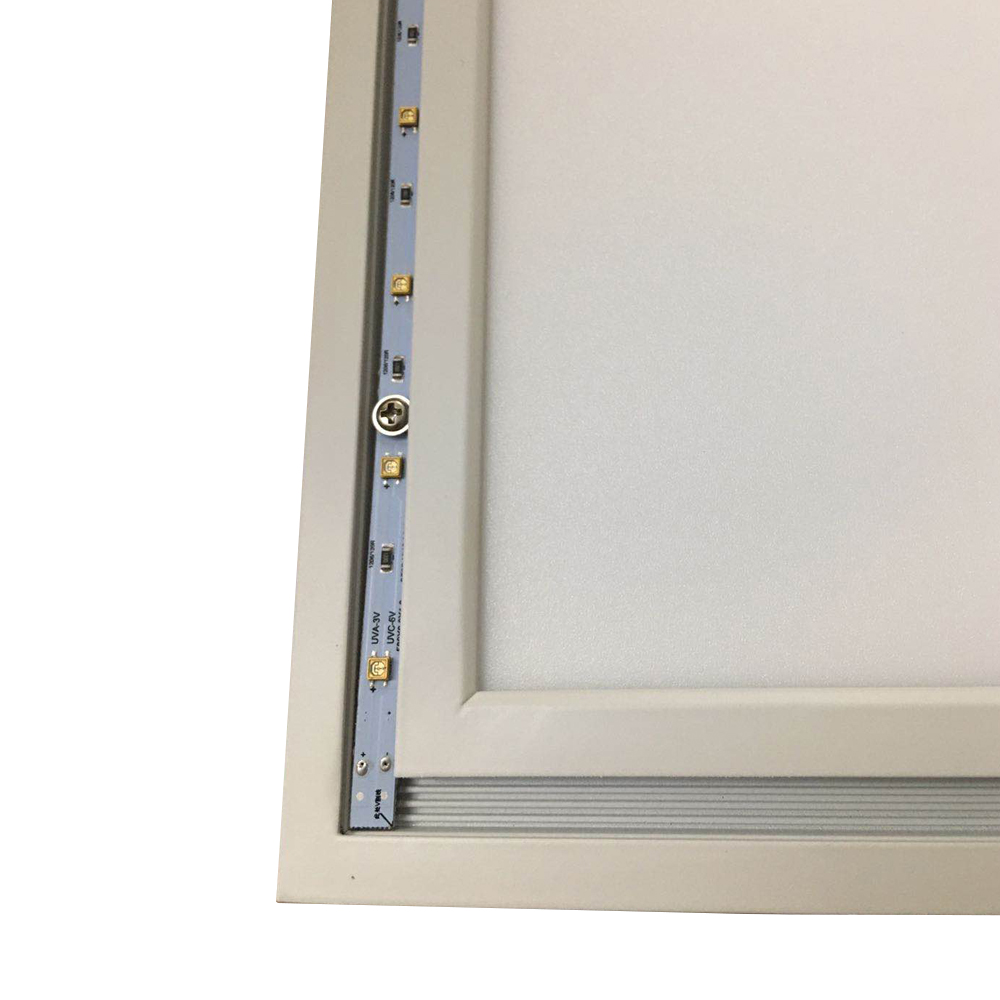

Sterilization and illumination separately design.
White light efficacy can be up to 110lm/w.
Compared with traditional sterilization lamps, UVC sterilization and disinfection led panel light is more reasonable , beautiful and efficient.

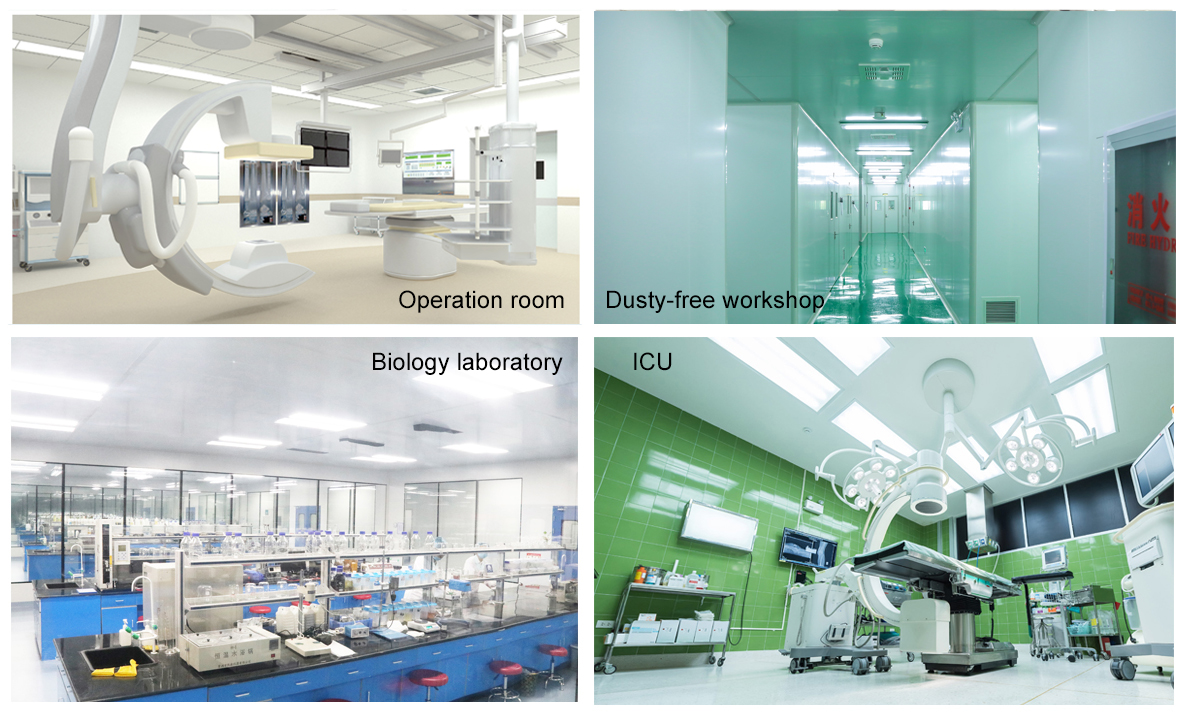

Intelligent control, free switching of sterilization and lighting dual modes, which are more suitable for current modern hospital construction.
Ultra-thin hypotenuse design, much more suitable for clean space circulation. Not affect laminar flow layout.
Human, flora and fauna must leave the scene. Don't look straightly at the UV light. After use, ventilate for 30 minutes.

Specification:

Model No.	LL-UPL-J2959/2835/UVC-20	LL-UPL-J5959/2835/UVC-40	LL-UPL-J29119/2835/UVC-40	LL-UPL-J59119/2835/UVC-60
Watt(W)	20W+10W(UVC+UVA)	40W+20W(UVC+UVA)	40W+20W(UVC+UVA)	60W+40W(UVC+UVA)
Dimension(mm)	29559512	59559512	295119512	595119512
Input Voltage(V)	AC 100-240V
LED	SMD2835, 0.2W,27-29lm Ra:80
LED	SMD3535,UVA+UVC, UVA:390-400nm, UVC:270-280nm
LED Qty(PCS)	144+18(UVC+UVA)	192+36(UVC+UVA)	216+36(UVC+UVA)	288+72(UVC+UVA)
CCT(K)	2700-6500K
Efficiency（lm/W) ±5%	100	100	100	100
Luminous Flux(lm) ±5%	2000LM	4000LM	4000LM	6000LM
CRI	≥80
Beam Angle (°)	120°
LED Driver	Isolated,Flicker Free Driver
Sterilization rate	99%
Protection Class	Class Ⅱ
IP Rating	IP44
Material	Aluminum+3.0TPMMA
Lifetime (hr)	W:50000H / UVC:8000H
Operating Temp.(°C)	-20℃ ~45℃
Storage Temp.(°C)	-20℃ ~65℃
Installation	Recessed

Purchase information:

Key specifications: 20 W+10 W(UVC+UVA) · 2000LM · 100 lm/W · IP44 · 120° · 2700-6500K · W:50000 H / UVC:8000 H.

Model	LL-UPL-J2959/2835/UVC-20
Warranty	3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

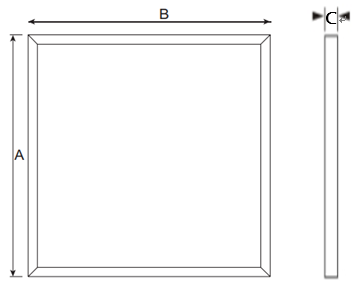

Size:

Model	Dimension(mm)			Product Weight (Kg)		Package weight (Kg)		Carton Size	Qty/CTN
Model	A	B	C	N.W/PC	G.W/PC	N.W/CTN	G.W/CTN	(mm)	Qty/CTN
LL-UPL-J2959/2835/UVC-20	29559512			-	1.8	-	11	660210330	5
LL-UPL-J5959/2835/UVC-40	59559512			-	3.2	-	17.5	660210630	5
LL-UPL-J29119/2835/UVC-40	295119512			-	3.3	-	18	1260210330	5
LL-UPL-J59119/2835/UVC-60	595119512			-	5	-	11.5	1310215660	2
