Adjustable Modular LED downlight D100

Short Description:

CRI: 80+ ,90+(3000K/4000K/5000K)
LED brand: Bridgelux, CREE, Luminus
Beam angle: 15° / 24° / 38° / 60° are available
Die-casting aluminum housing
Good quality driver, flicker-free, PF>0.95
High luminous efficiency: 90-110lm/W @CRI80 (whole lamp)
Wattage: 5W, 8W, 10W, 15W

Description: Modular LED downlight

Send email to us

Product Detail

Product Tags

Features:

1. Compatible with MR16.

2. The Kit includes a flicker-free driver and a die-casting aluminum integrated cooling radiator and solid mounting clips. The housing is finished with an internal reflector and tempered glass that provides glare free and uniform light distribution.

3. The housing is IP20 and completely closed so that insects can not penetrate.

4. With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications.

Specification

Model	LL-DL100-MR16-01
Power	5W	8W	10W	15W
Product Dimension	D100*H100mm
Cut out	90mm
Input	AC200-240V / AC90-130V
Dimmable	DALI, TRIAC, O/1-10V, DMX, RF, ZigBee
Luminous Efficacy	90-110M/W
PF	>0.95
LED Type	Bridgelux
LED Q‘ty	COB
CCT(K)	2700K/3000K/4000K/5000K/6000K
CIR(Ra)	80/90
Beam angle	15° / 24° / 38° / 60°
Working Temperature	-20℃～45℃
Storage Temperature	-20℃～45℃
Head Adjustable	Adjustable
Housing color	White + Black
IP Grade	IP20
Body Materials	ADC12 die-casting aluminum alloy
Certificate	CE, Rohs

Purchase information:

Key specifications: 5 W · IP20 · 15° / 24° / 38° / 60° · 2700K/3000K/4000K/5000K/6000K.

Model	LL-DL100-MR16-01
Warranty	3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

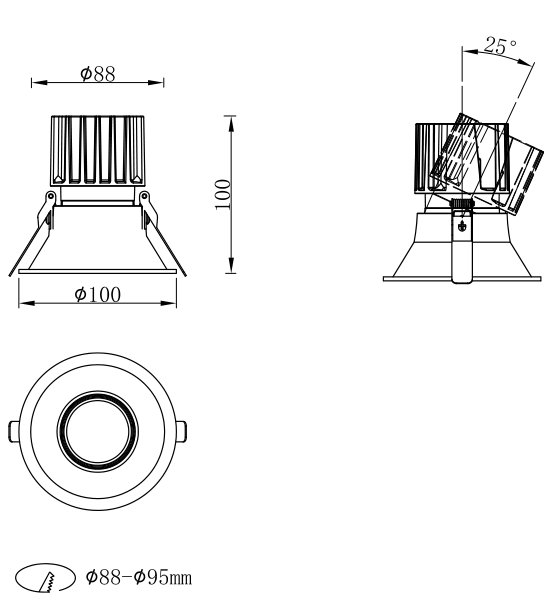

Size:

Unit: mm

Application:

LED downlight is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
