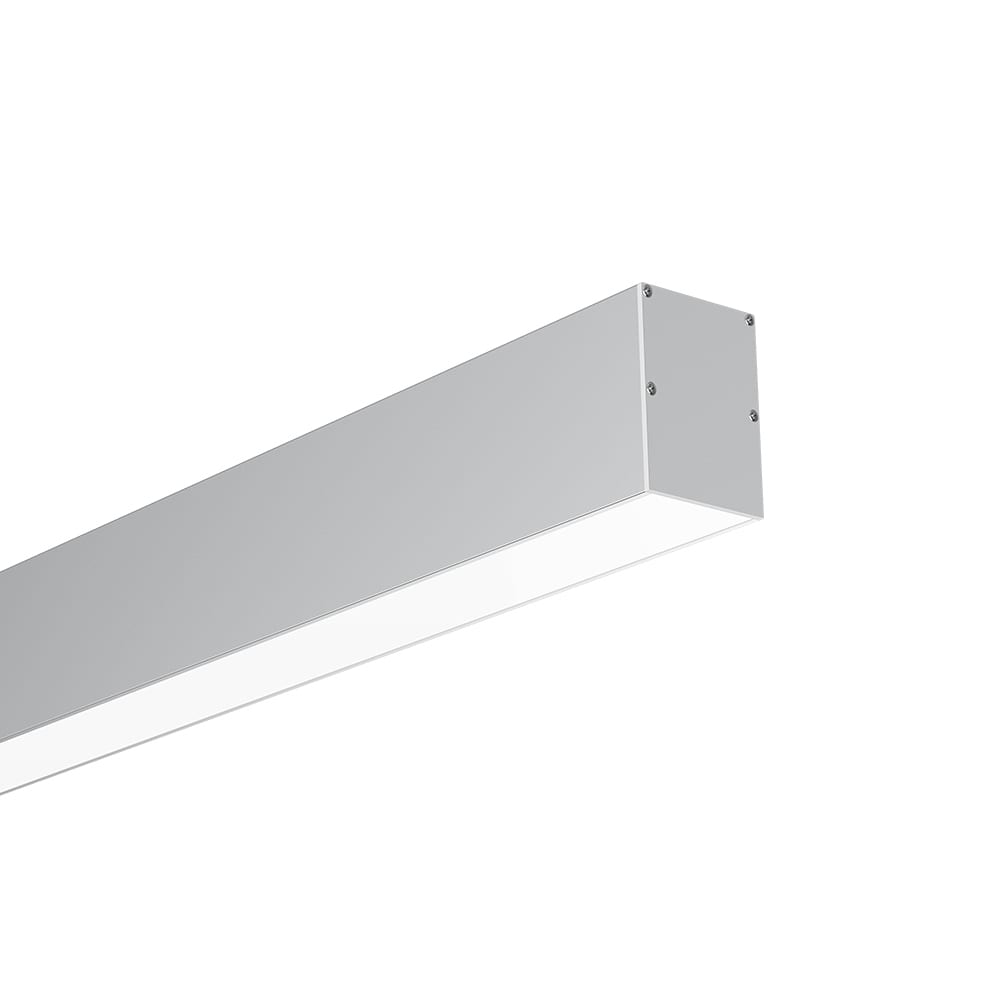

L5070 LED Linear Lighting

Short Description:

Power: 30W/40W/50W
Length: 1000mm/1200mm/1500mm
CCT: 3000K, 4000K,6000K
CRI > Ra80
Beam Angle:100°
Input Voltage:100-277VAC
Total Harmonic Distortion : <20%
Life Span: >50000Hrs(Ta=30°C@L70)
Operating Temperature : -30~+45°C
Storage Temperature : -40~+70°C
Junction Temperature(Tj) : <70°C(Ta=30°C)

Shipping Port: Shenzhen

Description: L5070 LED Linear Lighting

Send email to us

Product Detail

Product Tags

Features

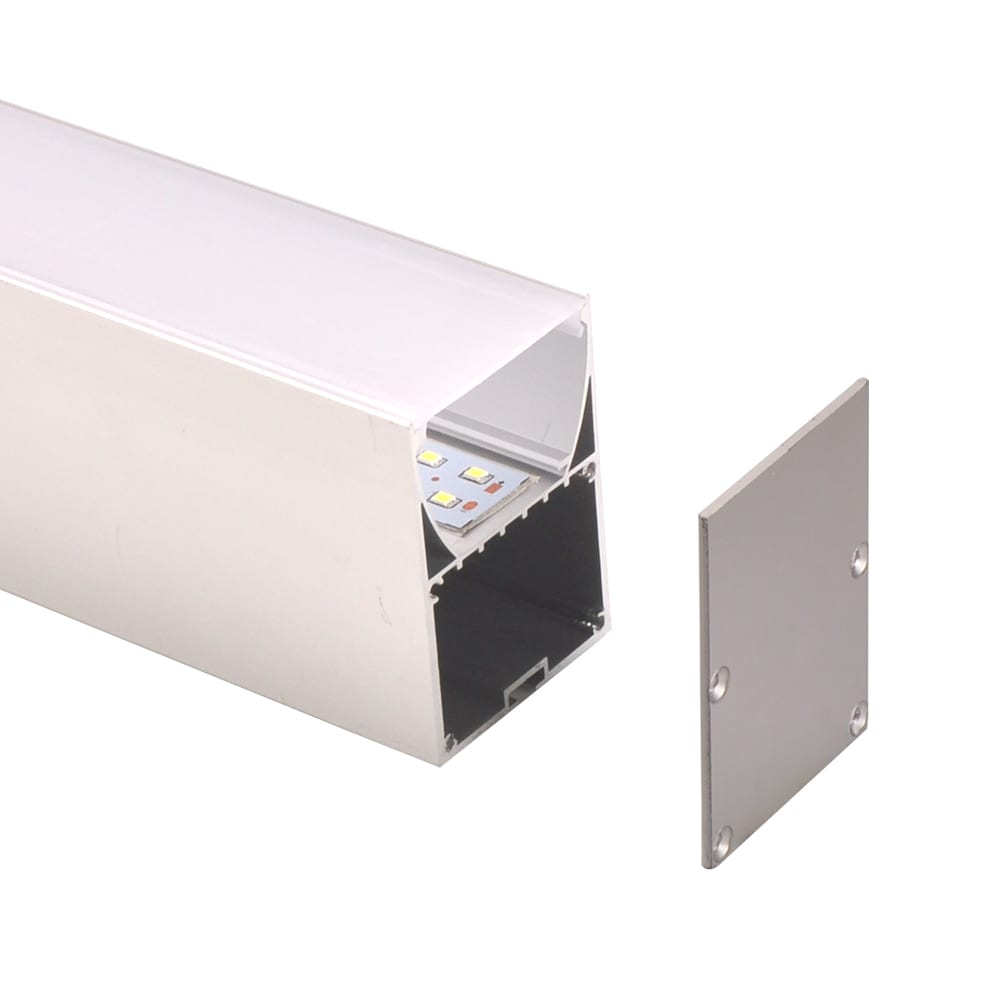

Lowcled LED linear light is exclusively designed for designer and architect with imagination and personal style. LED linear light adopt premium aluminum profile, different dimension and size. 3 types installation method: ceiling mounted, suspended and embedded type. Different customized dimensions are also acceptable, which can meet installation requirement of different fields and occasions.

Specification

Model	Power	Input Voltage	CCT	LED	LED Q'ty	LM/W	Beam angle	Ra	PF	Warranty	Size
LL-L5070-01	30W	200-240VAC	2700K-6500K	SMD2835	192pcs	80lm/W	100°	>80	>0.9	5 years	50701000mm
	40W	200-240VAC	2700K-6500K	SMD2835	240pcs	80lm/W	100°	>80	>0.9	5 years	50701200mm
	50W	200-240VAC	2700K-6500K	SMD2835	288pcs	80lm/W	100°	>80	>0.9	5 years	50701500mm
LL-L5070-02	30W	100-277VAC	2700K-6500K	SMD2835	192pcs	80lm/W	100°	>80	>0.9	5 years	50701000mm
	40W	100-277VAC	2700K-6500K	SMD2835	240pcs	80lm/W	100°	>80	>0.9	5 years	50701200mm
	50W	100-277VAC	2700K-6500K	SMD2835	288pcs	80lm/W	100°	>80	>0.9	5 years	50701500mm

Purchase information:

Key specifications: 30 W / 200-240VAC / 100-277VAC · 80 lm/W / 100° · 100° / >80 · 2700K-6500K / SMD2835.

Model	LL-L5070-01 / 40W / 50W / LL-L5070-02
Warranty	5 years / 50701200mm / 50701500mm
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
5 years / 50*70*1200mm / 50*70*1500mm.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

Application
LED Linear Light is widely used in kitchens, offices, hallways, corridors, foyers, bedrooms, closets, utility work areas etc.
