L4245 Jointable LED Light Bar

Short Description:

Power: 22W
Length: 1000mm/1200mm
CCT: 3000K, 4000K,6000K
CRI: > Ra80
Beam Angle:120°
Input Voltage:100-240VAC
Total Harmonic Distortion : <20%
Life Span: >50000Hrs(Ta=30°C@L70)
Operating Temperature : -30~+45°C
Storage Temperature : -40~+70°C
Junction Temperature(Tj) : <70°C(Ta=30°C)

Shipping Port: Shenzhen

Description: L4245 Jointable LED Light Bar

Send email to us

Product Detail

Product Tags

Features

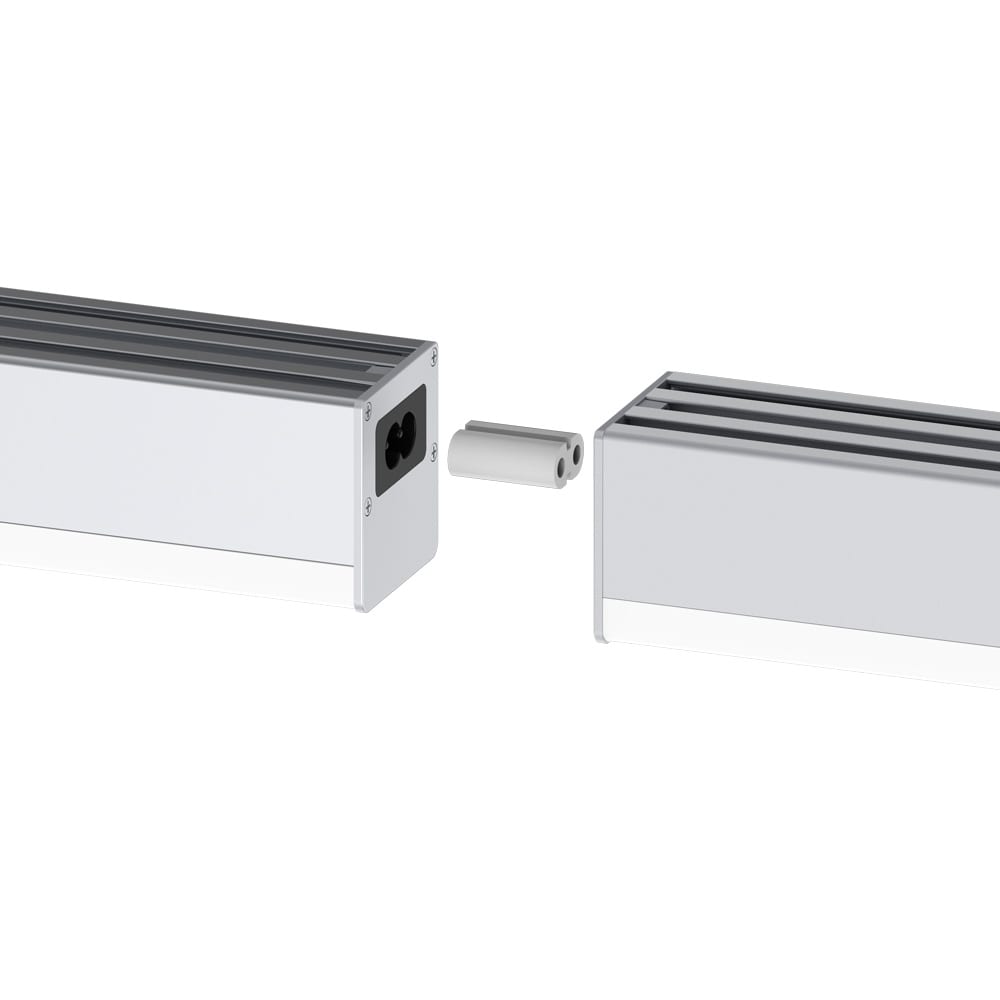

Seamless Jointable LED linear light is exclusively designed for designer and architect with imagination and personal style. It can be longest 10 meters @110V, 15-20 meters @220V. LED linear light adopts premium aluminum profile. Different customized dimensions are also acceptable, which can meet installation requirement of different fields and occasions. Fixed inside power supply, good thermal conductivity, easy to install. The ceiling linear lamp series often mounted or hang on the ceiling, it can light up your whole room or space.

Specification

Model	Power	Input Voltage	CCT	LED	LED Q'ty	LM/W	Beam angle	Ra	PF	Warranty	Size
LL-L4245-01	22W	100-240VAC	2700K-6500K	SMD2835	192pcs	2200±10%	120°	>80	>0.9	3 years	42451000mm
LL-L4245-01	22W	100-240VAC	2700K-6500K	SMD2835	192pcs	2200±10%	120°	>80	>0.9	3 years	42451200mm

Purchase information:

Key specifications: 22 W / 100-240VAC · 2200±10% / 120° · 120° / >80 · 2700K-6500K / SMD2835.

Model	LL-L4245-01 / 22W
Warranty	3 years / 42451200mm
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3 years / 42*45*1200mm.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

Application
Linkable LED Light bar is widely used in kitchens, offices, hallways, corridors, foyers, bedrooms, closets, utility work areas etc.
