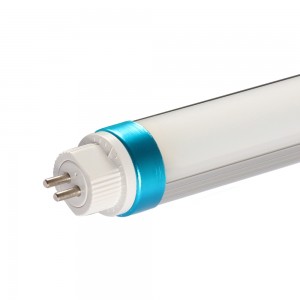

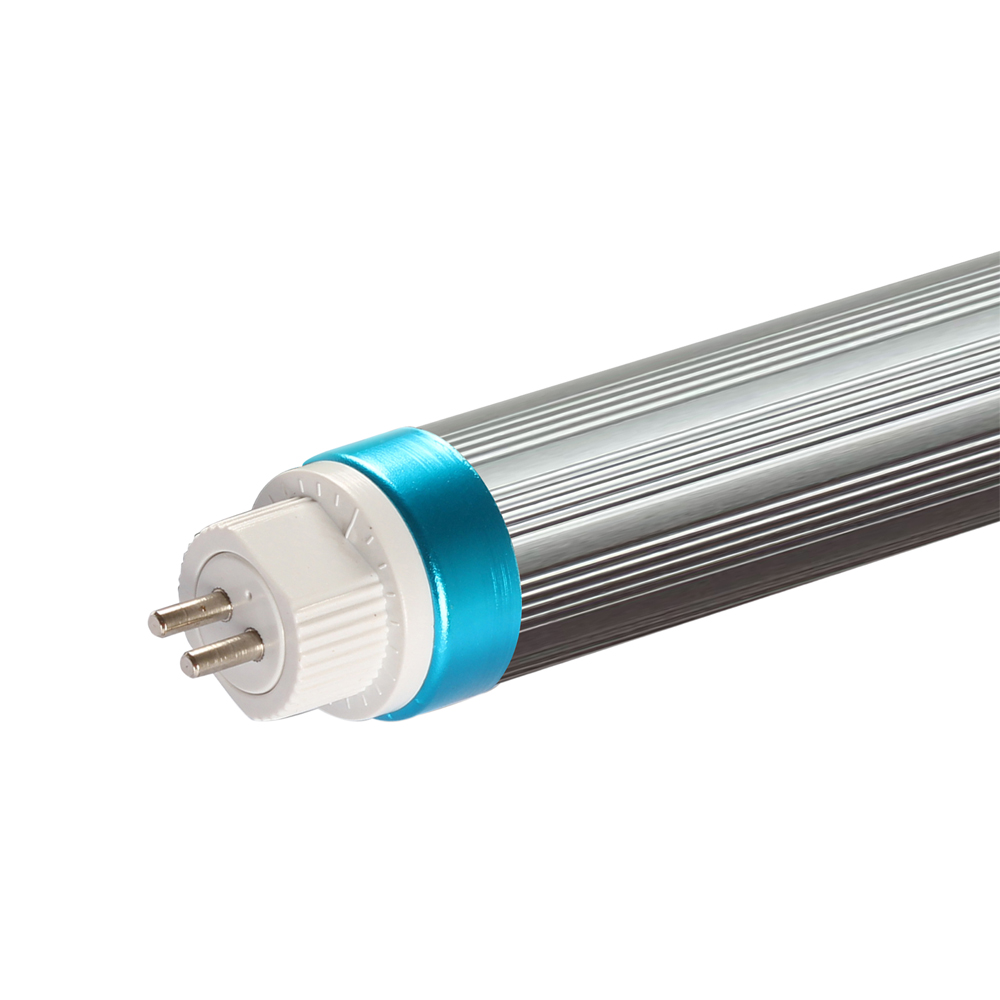

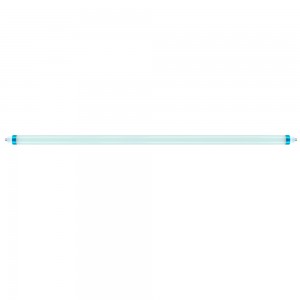

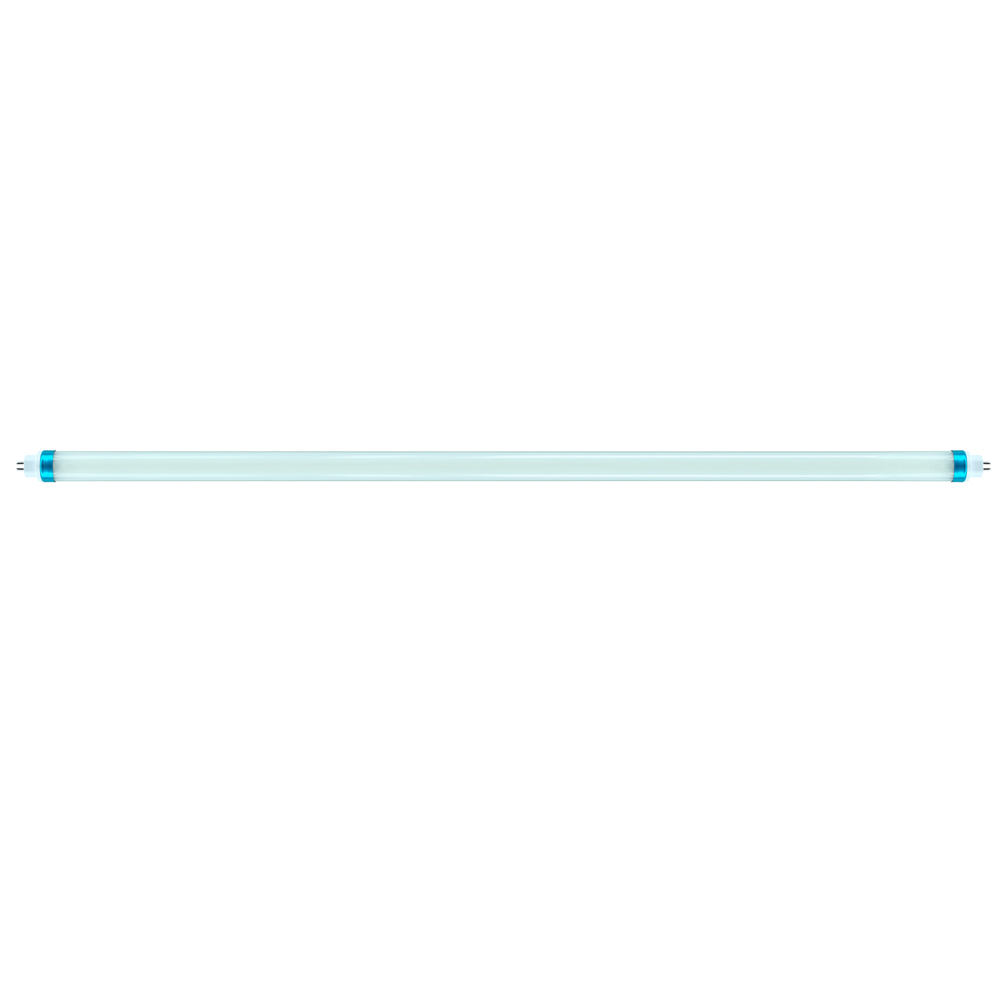

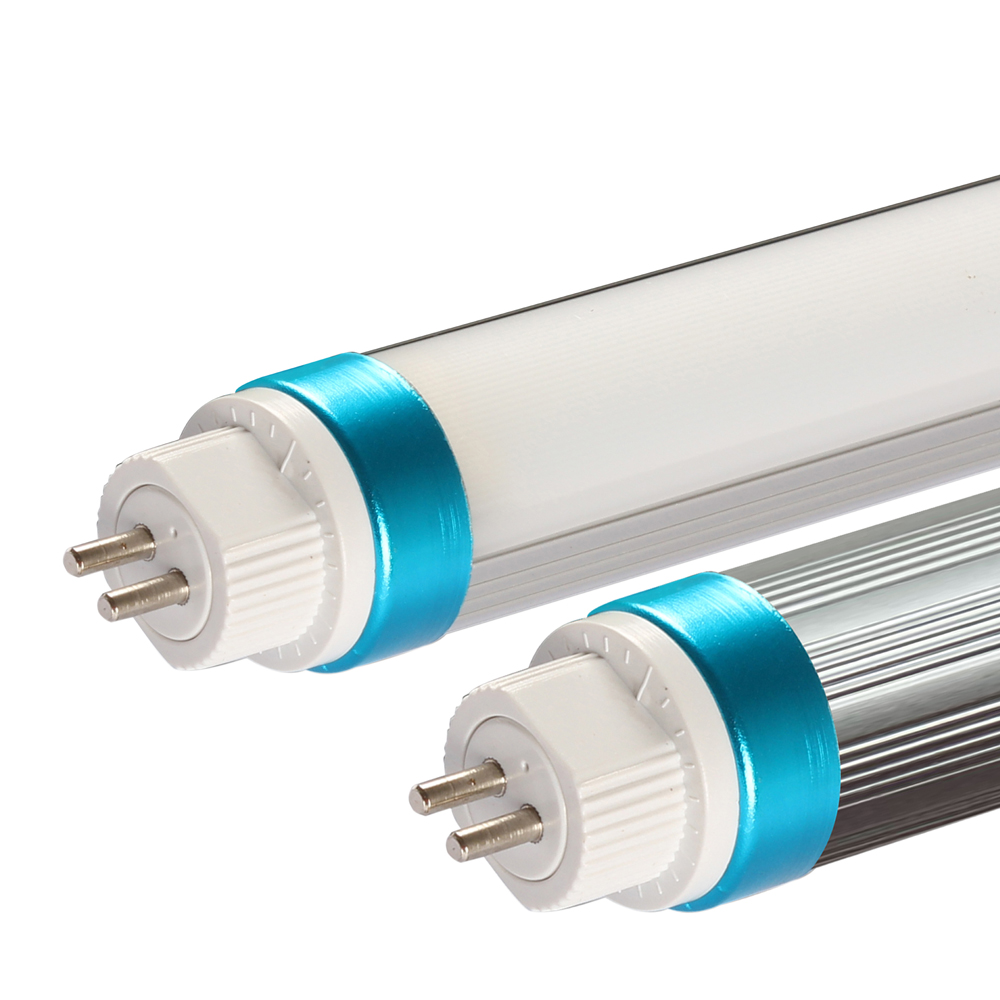

170LM/W T6 T5 LED Tube Light

Short Description:

  • T6 size,T5 socket.

  • Solid LED source, high brightness, fast response, less heat.
  • High quality aluminum+PC milky cover material, which has fine workmanship and excellent heat dissipation effect.
  • High reliable, the lifespan could reach over 5000hours, which is 8-12 times of traditional fluorescent tube, almost maintenance free.
  • Environmentally-friendly, Safe pollution-free, reach ROHS requirement.


  • Shipping Port: Shenzhen
  • Product Detail

    Product Tags

    Features:

    1. Long lifespan, at least more than 4 years fluorescent.

    2. High quality SMD2835 LED chipset.
    3. Solid state, high shock/vibration resistant
    4. Power factor is >0.9.
    5. Temperature of Working Condition: -20℃+45℃, perfect for extreme climates.
    6. Quick and easy installation to minimize retrofit cost.
    7. No mercury and other hazardous materials, fully RoHS compliant.
    8. High cost-effective.
    9. Completely insulated electrical design for maximum safety.

    TL;DR — quick summary:

    TL;DR — 170 lm/W T6 T5 LED Tube Light: 10 W · 1600 lm · IP20 · 3000-6500K · ≥ 50000 H. Warranty: 3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS certified. OEM/ODM available — email [email protected] for factory-direct pricing.

    Specification

    Model LL-T5/T6/600-72P-3C-T01 LL-T5/T6/1200-144P-3C-T01 LL-T5/T6/1500-276P-3C-T01
    Power(±10%) 10W 20W 30W
    Input(Frequency) AC 175-265V(50/60Hz)
    Output Voltage DC 50-150V
    PF >0.9 >0.9 >0.9
    LED Qty (SMD2835)/PCS 72 144 276
    Lumen(±10%)Lm 1600lm 3200lm 4800lm
    CCT(K) 3000-6500K
    CIR(Ra) >80
    Working Temperature -20℃~45℃
    Humility 20%~80%RH
    Storage Temperature -30℃~60℃
    Life span of Light Source ≧50000 H
    Material Aluminum + PC
    IP Grade IP20
    Net Weight 120g 240g 300g

    Purchase information:

    Key specifications: 10 W · 1600 lm · IP20 · 3000-6500K · ≥ 50000 H.

    ModelLL-T5/T6/600-72P-3C-T01
    Warranty3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
    SamplesAvailable for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
    PaymentT/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
    MOQ / lead timeQuoted per model and configuration — email [email protected]

    Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

    Frequently asked questions:

    What is the MOQ for this linear LED fixture model?
    MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

    What is the lead time for this linear LED fixture model?
    Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

    Which certificates do you provide for the linear LED fixture model?
    CE, RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

    Can you customize this linear LED fixture model (OEM / ODM)?
    Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

    What warranty applies to this product?
    3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

    Which lengths and wattages are available in this series?
    The available lengths and wattages are listed in the specification table above (2ft-5ft, 10W-60W for tri-proof and batten models). Custom lengths are available for bulk orders.

    Can this fixture be linked in continuous rows?
    Linkable versions are available for batten and tri-proof models. Tell us your layout and we confirm the connection method and the required accessories.

    Can this fixture be used in cold stores or unheated warehouses?
    Tri-proof models are used in car parks, warehouses and cold stores. Tell us your lowest ambient temperature and we confirm suitability based on the driver specification of this model.

    Which supply voltage versions are available?
    Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.

    About the manufacturer:

    Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.

    What customers say:

    We have worked with Lowcled for several years and the cooperation has always been smooth.
    — Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia

    From our own factory (production, aging test & shipment):

    LOWCLED factory warehouse with finished LED lightsContainer loading at the LOWCLED Shenzhen factoryPacked pallets ready for worldwide shipment

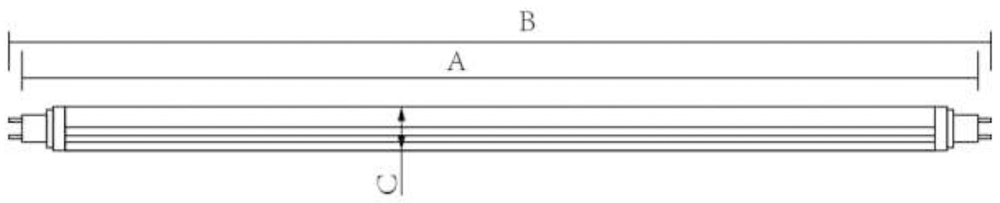

    Size:

    T6 T5 Size



    Model Spec(m) A (mm) B (mm) C (mm)
    LL-T5/T6/600-72P-3C-T01 0.6 548±1 562 23
    LL-T5/T6/1200-144P-3C-T01 1.2 1148±1 1162 23
    LL-T5/T6/1500-276P-3C-T01 1.5 1448±1 1462 23

    Application:

    • Mall, store, hotel, office, supermarket, commercial building, station, warehouse, parking lot, restaurant ,subway station, bank, warehouse, exhibition gallery, library, factory, cabinet, kitchen,etc.
    • Replace conventional fluorescent lamp or sodium lamp.

    LED TUBE LIGHT APPLICATION 2
