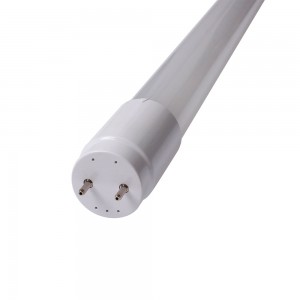

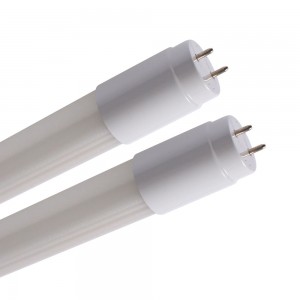

Nano T8 LED tube light
Features:
-
Long lifespan, at least more than 4 years fluorescent.
- High quality SMD2835 LED chipset.
- Solid state, high shock/vibration resistant
- Universal Constant Current Voltage 90-265VAC, 50/60Hz.
- Power factor is >0.9.
- No mercury and other hazardous materials, fully RoHS compliant.
- High cost-effective.
- Completely insulated electrical design for maximum safety.
TL;DR — Nano T8 LED tube light: 9 W · 900 lm · 3000K-6500K · ≥ 50,000 hours. Warranty: 2 years. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS, SASO, ETL, DLC and SAA certified. OEM/ODM available — email [email protected] for factory-direct pricing.TL;DR — quick summary:
| Product Code | LL-T8/600-48P-3C-N | LL-T8/1200-96P-3C-N | LL-T8/1500-120P-3C-N |
| Item | L=600/2ft | L=1200/4ft | L=1500/5ft |
| Rated Power | 9W | 18W | 22W |
| Input Voltage | AC 90-265V(50/60Hz) | ||
| Working Voltage | Constant DC50-80V | ||
| LED Type /Qty | 48pcs SMD2835 | 96pcs SMD2835 | 120pcs SMD2835 |
| Luminous Flux (±10%) | 900lm | 1800lm | 2200lm |
| Power Factor | PF>0.9 | ||
| Color Temperature | 3000K-6500K | ||
| Viewing Angle | 320° | ||
| Socket / Diameter | Rotatable G13/ D26mm | ||
| Housing material | PC | ||
| Protection Class | IP20 | ||
| Temperature | Operation : -10°C~+40°C Storage: -30°C~+60°C | ||
| Life span of Light Source | ≧50,000 hours | ||
| Warranty | 2years | ||
Purchase information:
Key specifications: 9 W · 900 lm · 3000K-6500K · ≥ 50,000 hours.
| Warranty | 2 years |
| Samples | Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS |
| Payment | T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000 |
| MOQ / lead time | Quoted per model and configuration — email [email protected] |
Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS, SASO, ETL, DLC, SAA). Purchase terms: see the purchase FAQ.
Frequently asked questions:
What is the MOQ for this linear LED fixture model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.
What is the lead time for this linear LED fixture model?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.
Which certificates do you provide for the linear LED fixture model?
CE, RoHS, SASO, ETL, DLC and SAA as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.
Can you customize this linear LED fixture model (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.
What warranty applies to this product?
2 years.
Which lengths and wattages are available in this series?
The available lengths and wattages are listed in the specification table above (2ft-5ft, 10W-60W for tri-proof and batten models). Custom lengths are available for bulk orders.
Can this fixture be linked in continuous rows?
Linkable versions are available for batten and tri-proof models. Tell us your layout and we confirm the connection method and the required accessories.
Can this fixture be used in cold stores or unheated warehouses?
Tri-proof models are used in car parks, warehouses and cold stores. Tell us your lowest ambient temperature and we confirm suitability based on the driver specification of this model.
Which supply voltage versions are available?
Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.
About the manufacturer:
Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS, SASO, ETL, DLC, SAA certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.
What customers say:
— Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia
From our own factory (production, aging test & shipment):
Size:
| Model | Spec(m) | A(mm) | B(mm) | C(mm) | Base Type |
| LL-T8/600-48P-3C-N | 0.6 | 588±1 | 603 | 26 | G13 |
| LL-T8/1200-96P-3C-N | 1.2 | 1198±1 | 1213 | 26 | G13 |
| LL-T8/1500-120P-3C-N | 1.5 | 1498±1 | 1513 | 26 | G13 |
Application:
Mall, store, hotel, office, supermarket, commercial building, station, warehouse, parking lot, restaurant ,subway station, bank, warehouse, exhibition gallery, library, factory, cabinet, kitchen,etc.
Replace conventional fluorescent lamp or sodium lamp.
