LED Batten Light | Lowcled

Short Description:

130lm/w luminous efficacy.
High quality aluminum material with high conductivity
Soft and no flickering through special optical design, which is more comfortable in using.
High reliable, the lifespan could reach over 50000hours, which is 8-12 times of traditional fluorescent tube, almost maintenance free.
Environmentally-friendly, Safe pollution-free, reach ROHS requirement.

Shipping Port: Shenzhen

Send email to us

Product Detail

Product Tags

Features:

High quality SMD2835 LED chipset.
Solid state, high shock/vibration resistant.
Universal input voltage AC175-265V.
Power factor is >0.9.
Quick and easy installation to minimize retrofit cost.
No mercury and other hazardous materials, fully RoHS compliant.
High cost-effective.
Completely insulated electrical design for maximum safety.

Specification

Model	LL-T/600-120P-3C-B01	LL-T/1200-240P-3C-B01
Power（±10%）	18W	36W
Input(Frequency)	AC 175-265V（50/60Hz）
Output Voltage	DC70-150V
PF	>0.9
LED Qty (SMD2835)/PCS	120	240
Lumen（±10%）Lm	2340lm	4680lm
CCT(K)	2800-6500K
CIR(Ra)	>80
Beam angle	120°
Socket / Diameter	2Pin/3Pin
Working Temperature	-20℃～45℃
Humility	20%~80%RH
Storage Temperature	-30℃～60℃
Life span of Light Source	≧50000 H
Material	Al+PC
Temperature Rise	<35℃
IP Grade	IP20
Net Weight	273g	522g

Purchase information:

Key specifications: 18 W · 2340 lm · IP20 · 120° · 2800-6500K · ≥ 50000 H.

Model	LL-T/600-120P-3C-B01
Warranty	3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

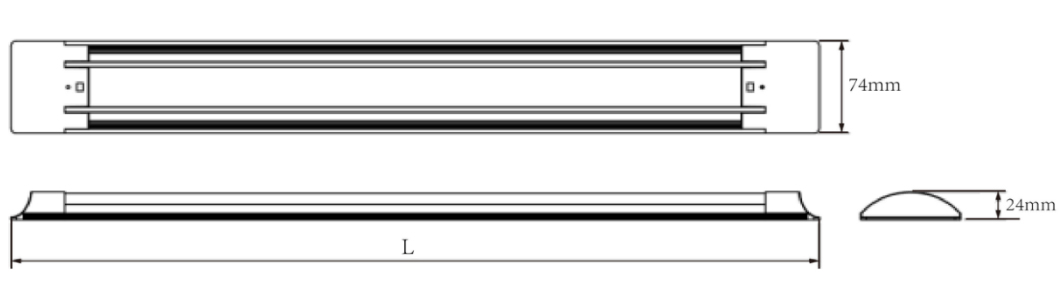

Size:

Model	L(mm)	W(mm)	H (mm)
LL-T/600-120P-3C-B01	600	74	24
LL-T/1200-240P-3C-B01	1200	74	24

Application:

Mall, store, hotel, office, supermarket, commercial building, station, warehouse, parking lot, restaurant ,subway station, bank, warehouse, exhibition gallery, library, factory, cabinet, kitchen,etc.
Replace conventional fluorescent lamp or sodium lamp.
