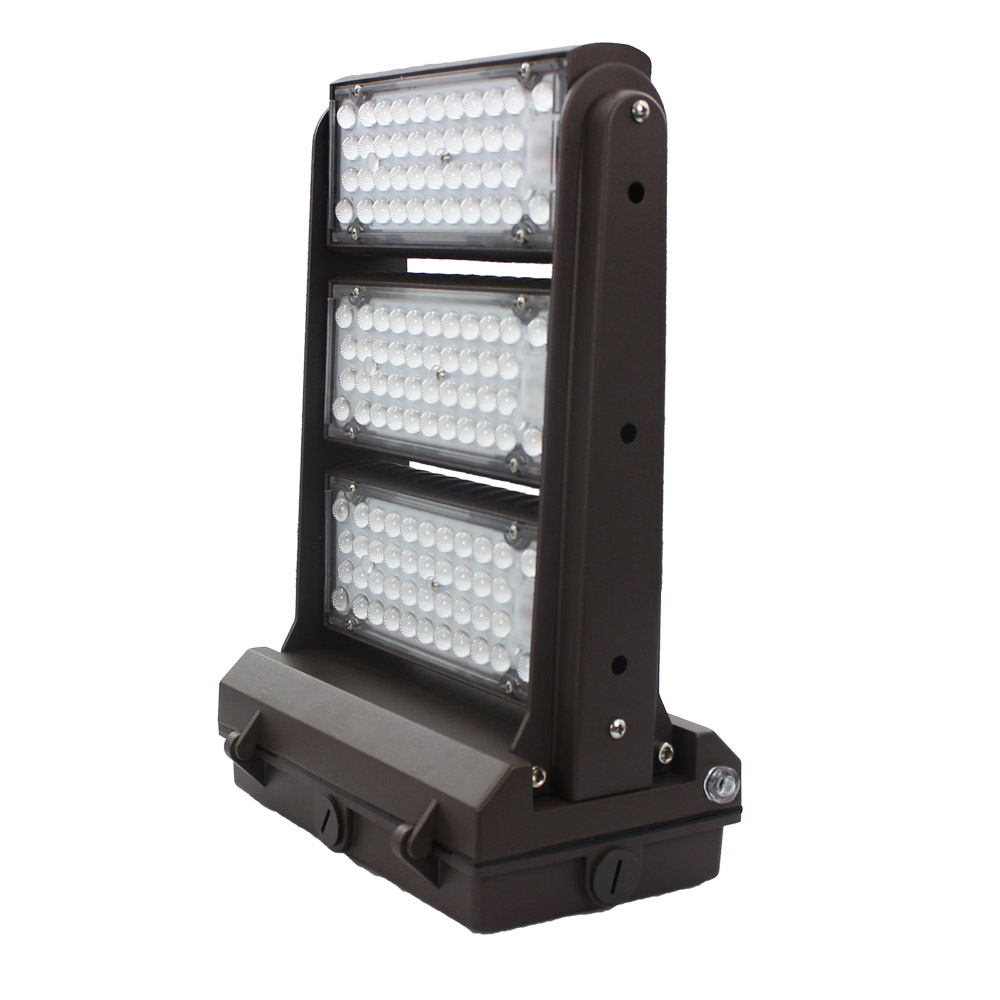

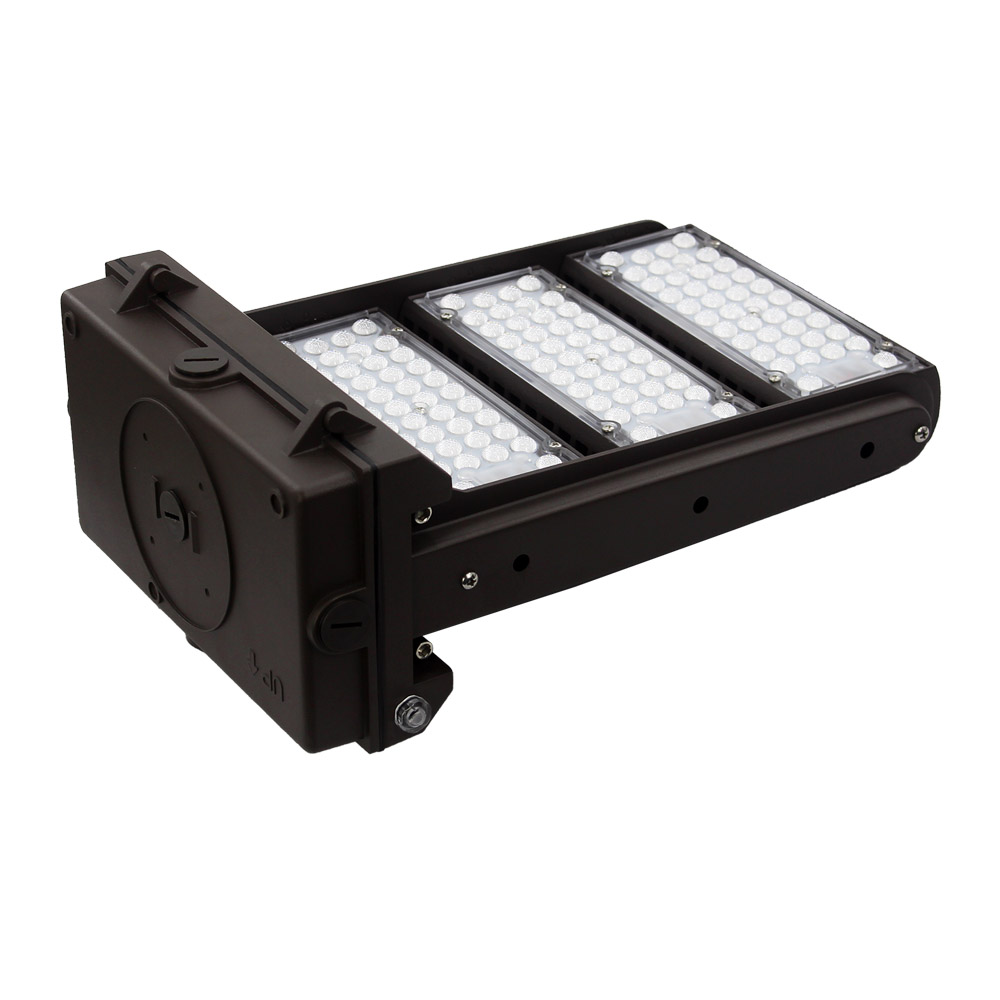

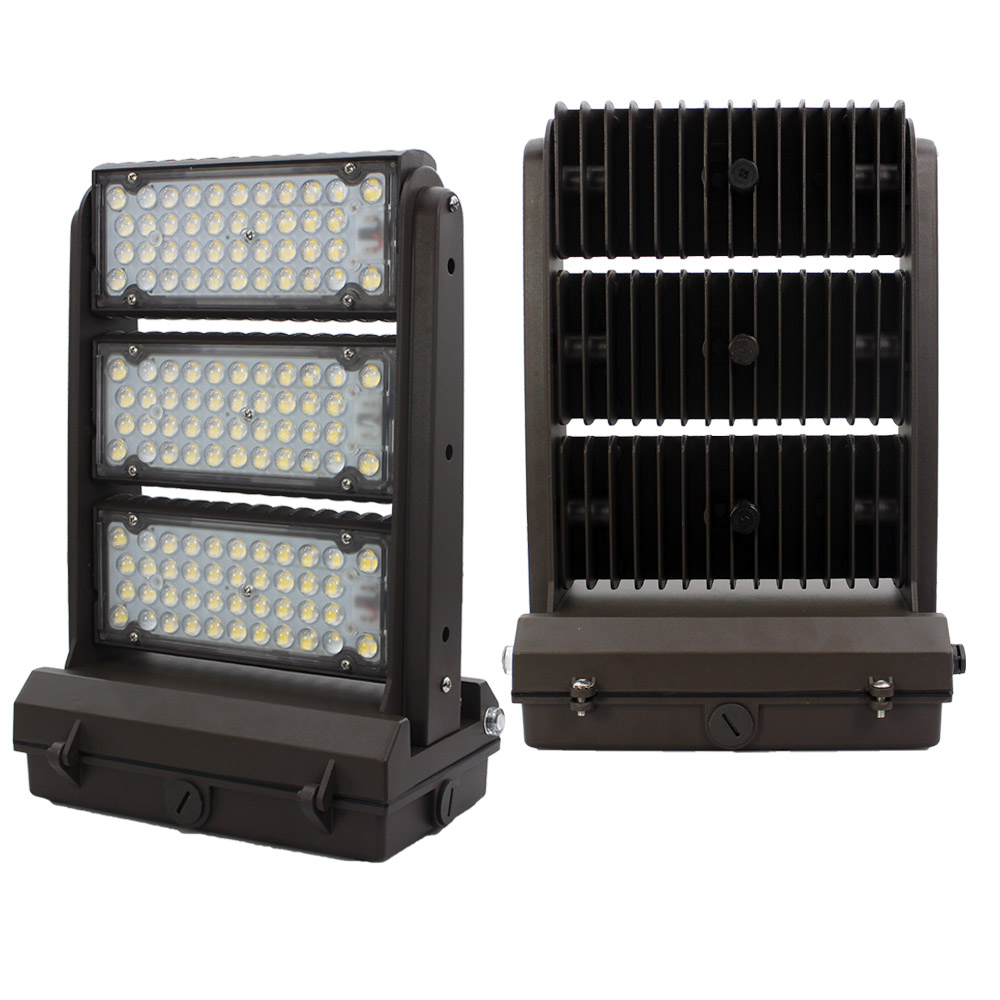

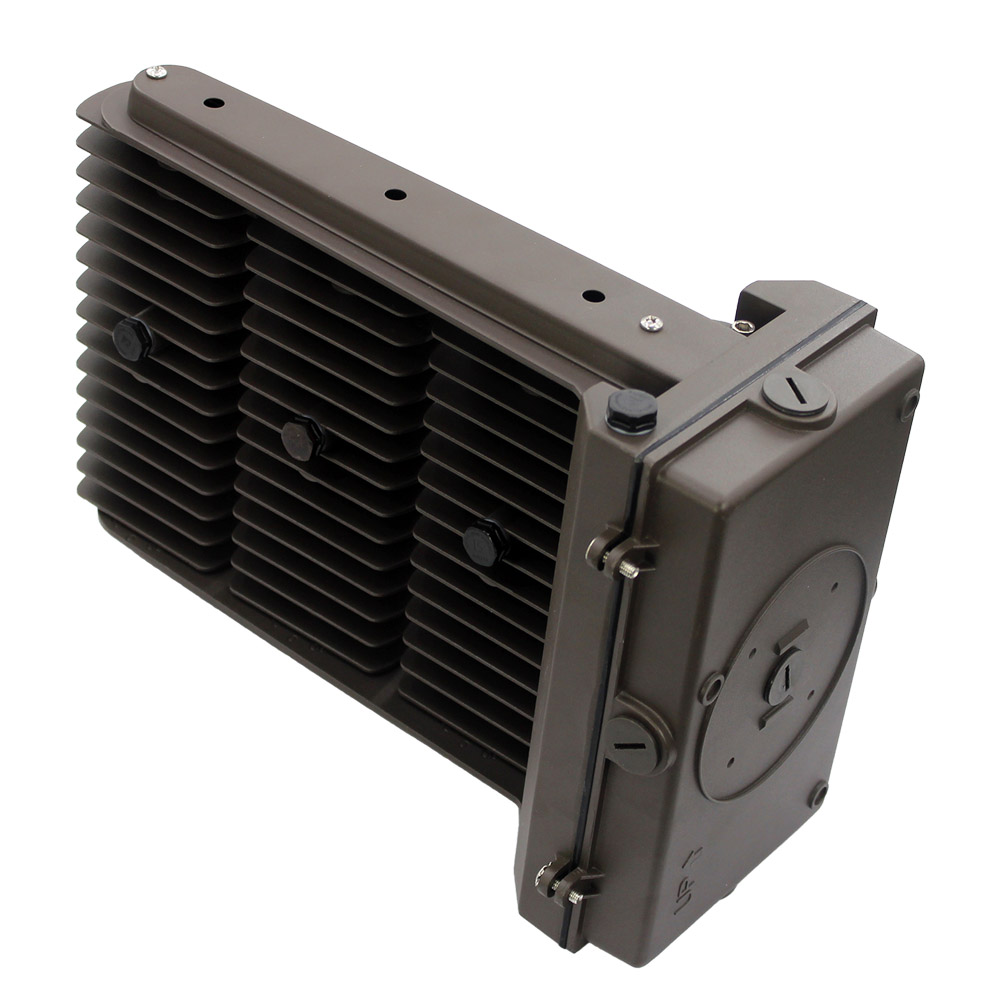

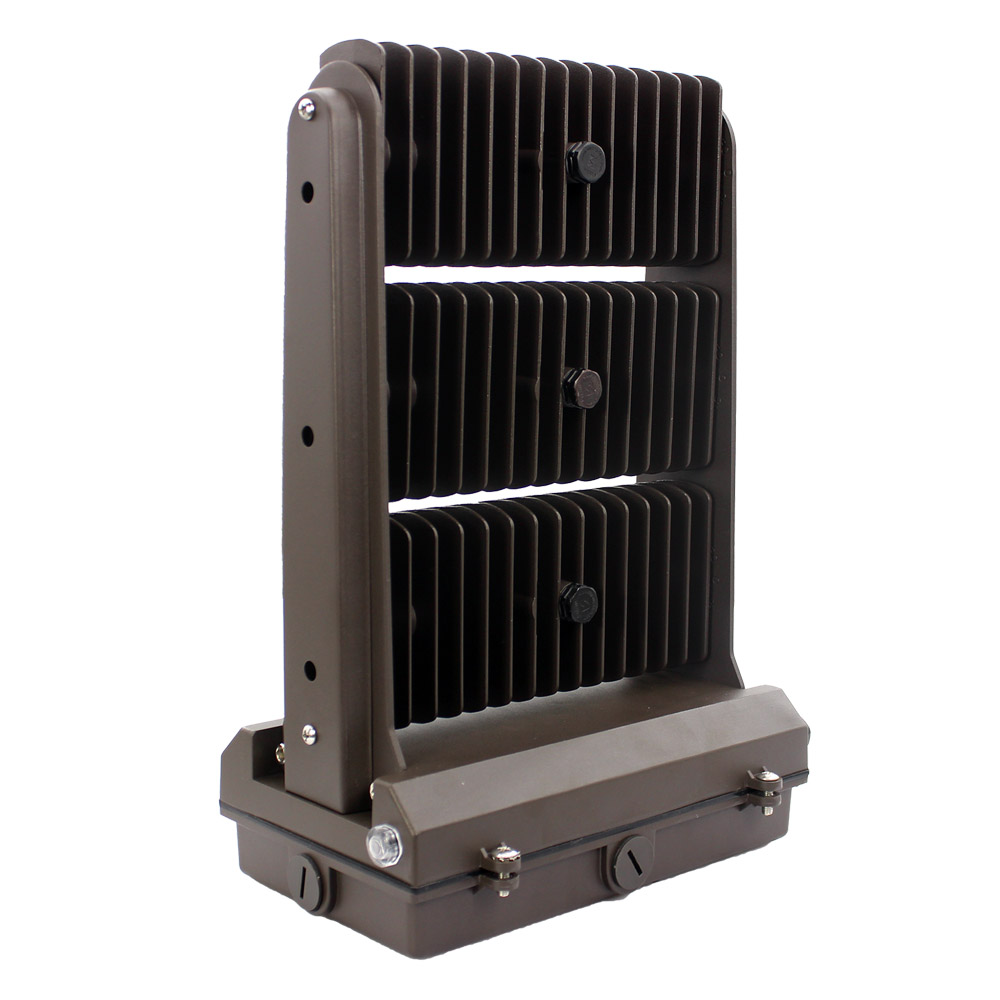

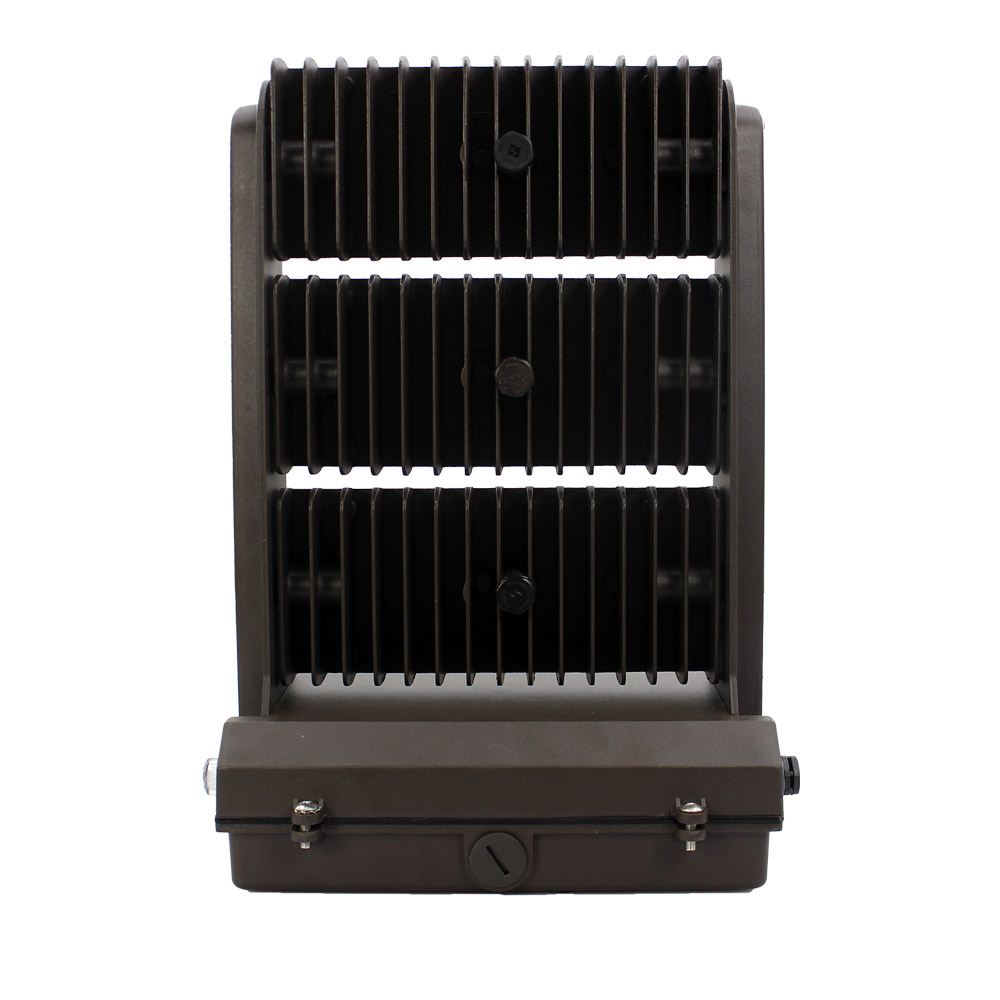

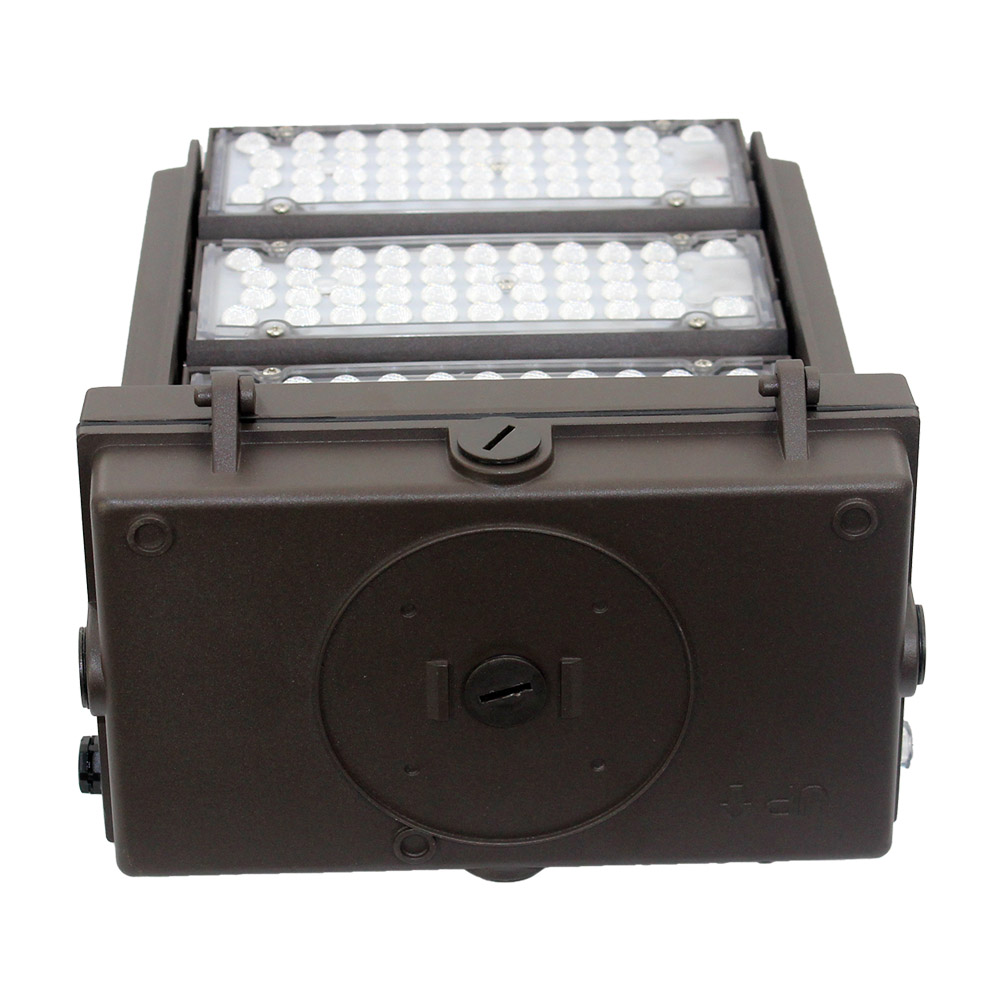

Modular 180W 200W 240W LED Wall Pack Light

Short Description:

  • Power: 180W/200W/240W
  • Up to 135 – 180
  • Easy installation
  • Mounting via J-box or Surface Conduit
  • Two-Piece Die-Cast Aluminum Housing with Thermally Conductive LED Panel and Electrical Chamber
  • Tunable CCT for 3000K,4000K,5000K,Color Temperature Options
  • Pre-Installed Photocell Button, UL listed PIR Sensor and Emergency Battery
  • Available for Wet Locations
  • 5 years warranty










  • Model: LL-HWPL180/LL-HWPL200/LL-HWPL240
  • Description: LED Wall Pack Lighting
  • Shipping port: Shenzhen
  • Product Detail

    Product Tags

    Our outdoor Commercial LED Wall Pack Lights are designed to replace 100W to 500W Metal Halide and HPS Commercial Wall Pack Lighting. LED outdoor wall packs are designed for commercial and industrial areas to light up building exteriors. Dusk to dawn LED wall packs with photocell and/or motion sensor are used for security lighting for office areas, businesses and warehouses to automatically light up when motion is detected, and turns on when the sun sets. We offer full flood and full cutoff wall pack options. We can even supply High Voltage solutions up to 480V. Our LED Wall Packs and Wall Pack lighting is easy to install providing bright and long lasting outdoor and security lighting business need.


    Model LL-HWPL180 LL-HWPL200 LL-HWPL240
    Wattage 180W 200W 240W
    Luminous Flux  24300lm-30600lm  27000lm-34000lm  32400lm-40800lm
    Lumens per Watt 135 - 180
    Input Voltage 100-277V / 277-480V / 100-347V,50 / 60 Hz
    Color emperature 3000K / 4000K / 5000K / 5700K / 6500K
    Operation Temperature -40C° to + 50°C (-40°F to 122°F)
    Beam Angle 60º
    CRI Ra70 (Ra80 or Ra90 optional)
    PF ≥0.95
    Net Weight 3.7KG / 8.2lbs
    QTY/CTN 1
    GW/CTN 4.3kg / 9.5lbs
    Size of box(mm / inch) 377*288*175 / 14.8*11.3*6.9
    SIZE of CTN(mm / inch) 377*288*175 / 14.8*11.3*6.9



    180W 240W

    Unit: mm/in


    The LED Wall Pack light is widely used on walls of Super Market, Hotel, Tavern, Night Club, Disco Hall, Karaoke Room, Coffee House, Bank, Meeting Room, Exhibition Hall, Exhibition Wardrobe, Show Window, Living House etc.
