Recessed Linear LED Downlight DL60 led wall washer light, Led Linear Light, factory Price Stage Lighting LED Effect Light and LED spot light

Short Description:

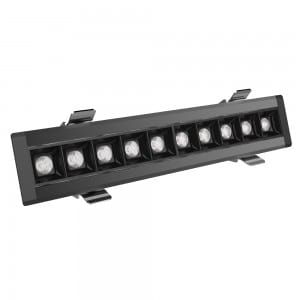

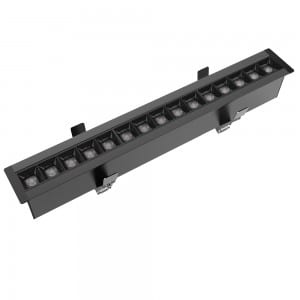

  • Recessed linear LED downlight.

  • UGR<19.
  • High efficiency & energy saving.
  • No UV & IR . It won’t distribute ray radiation.
  • Eco-friendly, No Hg & Xe, or other harmful element.
  • Recyclable, also it won’t generate EMI.
  • 5 years warranty


  • Shipping Port: Shenzhen
  • Description: Recessed linear LED downlight
  • Model: LL-DL60-05 / LL-DL60-10 / LL-DL60-15
  • Product Detail

    Product Tags

    downlight

    Features:

    1. Original Cree chipset.
    2. It takes high brightness led lamp.
    3. Use constant current driver. No flicker, no glare, very soft and even light.
    4. High light efficiency, low power consumption, save much energy.
    5. Lift time could reach 50,000 hrs.
    6. Easily installation.

    Specification

    Model LL-DL60-05 LL-DL60-10 LL-DL60-15
    Power(±10%) 10W 20W 30W
    Product Dimension W55.5*H60*L162mm W55.5*H60*L295mm W55.5*H60*L428mm
    Input(Frequency) AC 220-240V(50/60Hz)
    Lumen 650lm 1300lm 1950lm
    Luminous Efficacy 65lm/w 65lm/w 65lm/w
    PF >0.9
    LED Type CREE XTE CREE XTE CREE XTE
    LED Q‘ty 5 PCS 10 PCS 15 PCS
    CCT(K) 3000K / 4000K / 6000K
    CIR(Ra) ≥80
    Beam angle 10° / 24° / 36° / 48°
    Working Temperature -30℃~45℃
    Storage Temperature -40℃~70℃
    LED Driver OSRAM X-power / Lifud
    Life span of Light Source ≧50000 H(Ta=30°C@L70)
    IP Grade IP40
    Body Materials Aluminum Alloy + PC
    Certificate CE, Rohs

    Size: recessed linear downlight size

    Unit: mm

    Application:

    Recessed Linear LED spot light is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.

    LINEAR LIGHT APPLICATION 5
