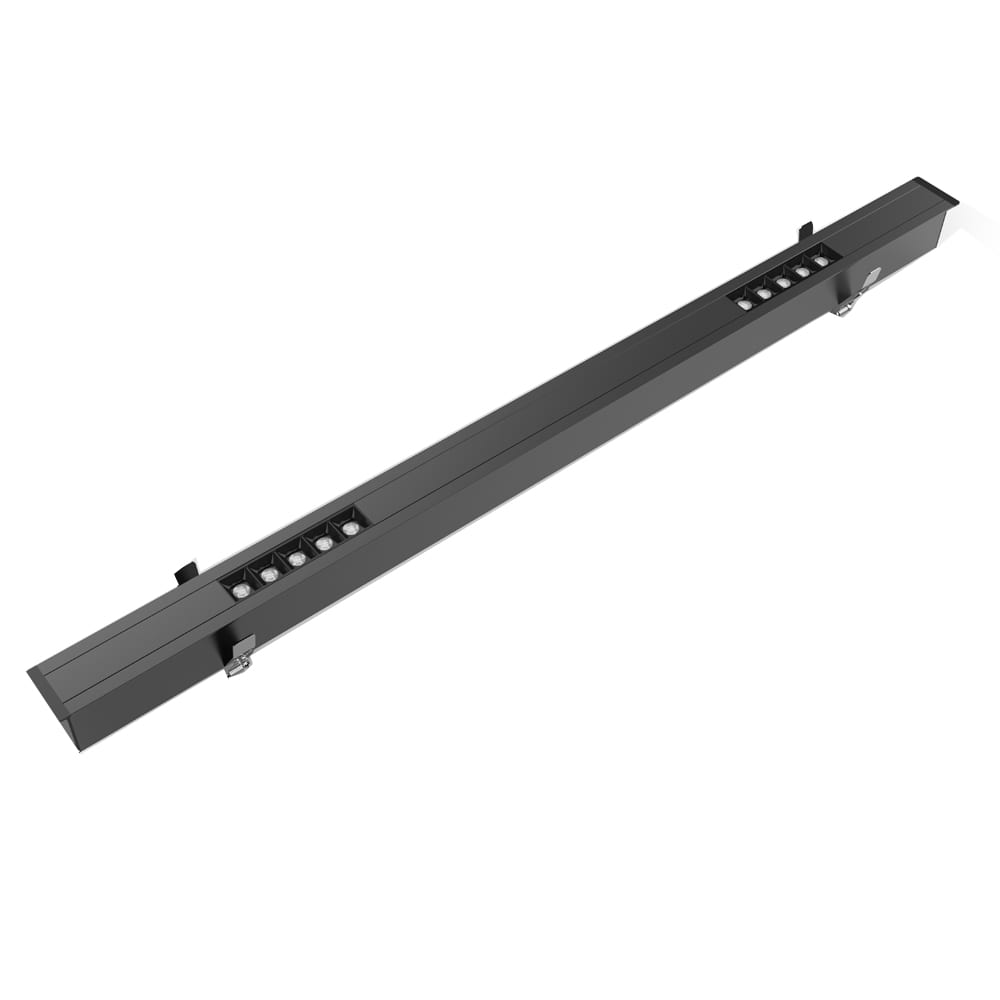

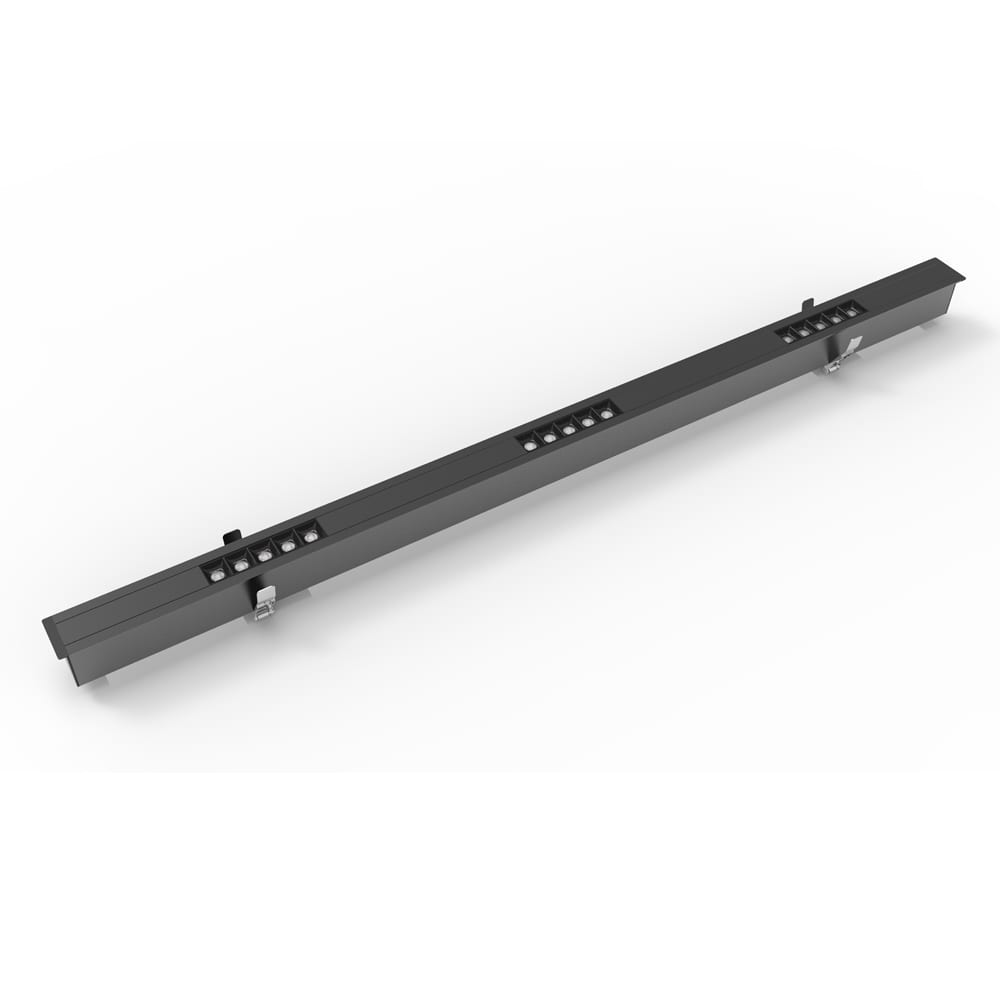

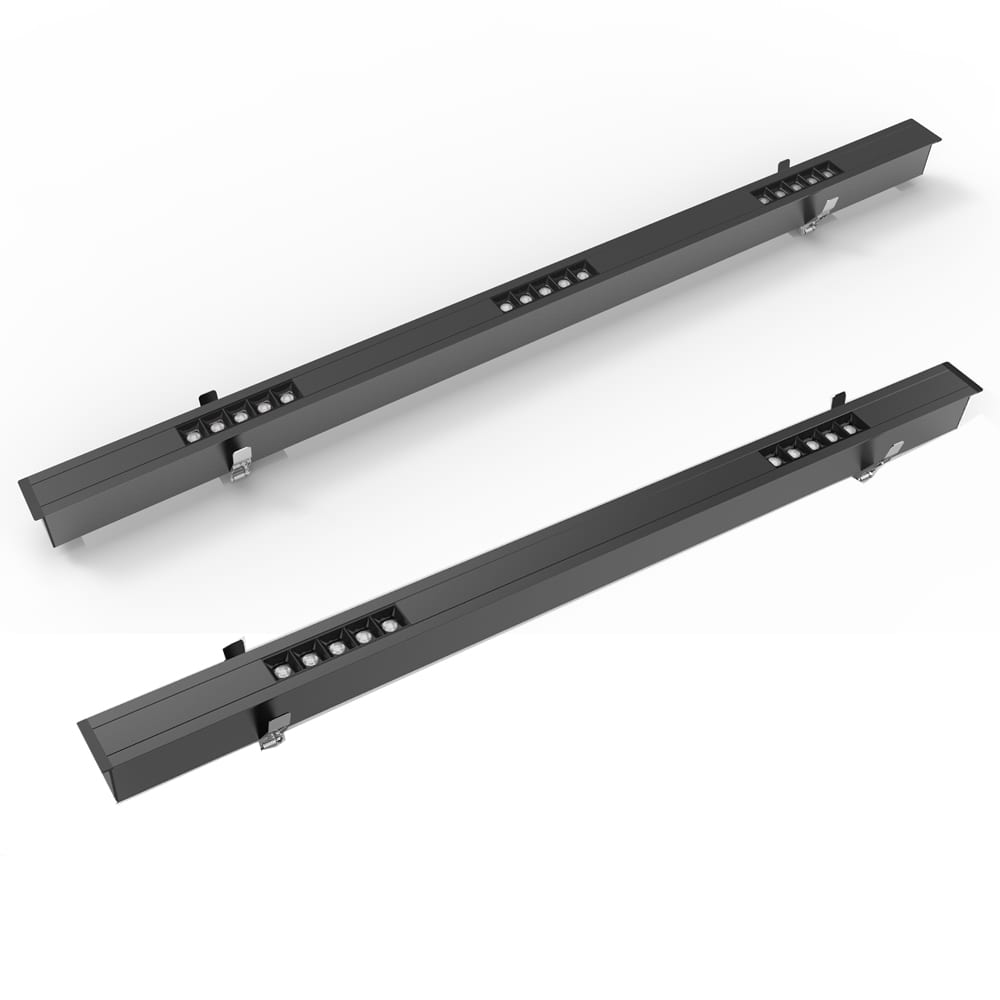

Recessed Linear LED Spot Light DL60 Multiple Downlight LED CREE Linear Grille Spot

Short Description:

  • Recessed linear LED downlight.

  • UGR<19.
  • High efficiency & energy saving.
  • No UV & IR . It won’t distribute ray radiation.
  • Eco-friendly, No Hg & Xe, or other harmful element.
  • Recyclable, also it won’t generate EMI.
  • 5 years warranty


  • Shipping Port: Shenzhen
  • Description: Recessed linear LED spot light
  • Model: LL-DL60-10-2C / LL-DL60-12-3C / LL-DL60-15-4C
  • Product Detail

    Product Tags

    Features:

    1. Original Cree chipset.
    2. It takes high brightness led lamp.
    3. Use constant current driver. No flicker, no glare, very soft and even light.
    4. High light efficiency, low power consumption, save much energy.
    5. Lift time could reach 50,000 hrs.
    6. Easily installation.

    TL;DR — quick summary:

    TL;DR — Recessed Linear LED Spot Light DL60 Multiple Downlight LED CREE Linear Grille Spot: 20 W · 1300 lm · IP40 · 10° / 24° / 36° / 48° · 3000K / 4000K / 6000K · ≥ 50000 H(Ta=30°C@L70). Warranty: 3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting. Shenzhen Lowcled Lighting Co., Ltd. is an LED lighting factory in Shenzhen, China, established in 2004 and exporting to 50+ countries; CE, RoHS certified. OEM/ODM available — email [email protected] for factory-direct pricing.

    Specification

    Model LL-DL60-10-2C LL-DL60-12-3C LL-DL60-15-4C
    Power(±10%) 20W 30W 40W
    Product Dimension W55.5*H60*L1025mm W55.5*H60*L1225mm W55.5*H60*L1525mm
    Input(Frequency) AC 220-240V(50/60Hz)
    Lumen 1300lm 1950lm 2600lm
    Luminous Efficacy 65lm/w 65lm/w 65lm/w
    PF >0.9
    LED Type CREE XTE CREE XTE CREE XTE
    LED Q‘ty 10 PCS 15 PCS 20 PCS
    CCT(K) 3000K / 4000K / 6000K
    CIR(Ra) ≥80
    Beam angle 10° / 24° / 36° / 48°
    Working Temperature -30℃~45℃
    Storage Temperature -40℃~70℃
    LED Driver OSRAM X-power / Lifud
    Life span of Light Source ≧50000 H(Ta=30°C@L70)
    IP Grade IP40
    Body Materials Aluminum Alloy + PC
    Certificate CE, Rohs

    Purchase information:

    Key specifications: 20 W · 1300 lm · IP40 · 10° / 24° / 36° / 48° · 3000K / 4000K / 6000K · ≥ 50000 H(Ta=30°C@L70).

    ModelLL-DL60-10-2C
    Warranty3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
    SamplesAvailable for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
    PaymentT/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
    MOQ / lead timeQuoted per model and configuration — email [email protected]

    Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

    Frequently asked questions:

    What is the MOQ for this panel, track or downlight model?
    MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

    What is the lead time for this panel, track or downlight model?
    Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

    Which certificates do you provide for the panel, track or downlight model?
    CE, RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

    Can you customize this panel, track or downlight model (OEM / ODM)?
    Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

    What warranty applies to this product?
    3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

    Is this fixture flicker-free for office and retail use?
    Most indoor models use flicker-free drivers, and UGR<19 options are available for panel lights. Tell us your glare or flicker requirement and we confirm the matching model and test report.

    Which CRI options are available?
    CRI 80+ is standard and CRI90 options are available on selected models; the CRI of this model is listed in the specification table above. For retail or gallery projects requiring high colour rendering, tell us and we confirm the matching model.

    Can you supply custom sizes, CCT or output?
    Yes. Custom size, wattage, CCT (2700K-6500K), CRI and housing colour are available for OEM orders. Send your specification to [email protected] and we reply within 12 hours.

    Which supply voltage versions are available?
    Voltage is confirmed per model and per project. Tell us the supply voltage you are working to (120-277V, 277-480V, 347V or 220-240V) and we confirm which version applies, and whether a different driver is required for that voltage.

    About the manufacturer:

    Shenzhen Lowcled Lighting Co., Ltd. — Established 2004 · 10,000 m² factory, 200 staff · LED lights exported to 50+ countries · CE, RoHS certified · Warranty: 3-5 years indoor, 5-7 years outdoor · OEM & ODM, replies within 12 hours. See the company profile and the certificate list.

    What customers say:

    We have worked with Lowcled for several years and the cooperation has always been smooth.
    — Verified buyer · Saudi Arabia · Long-term partner · Saudi Arabia

    From our own factory (production, aging test & shipment):

    LOWCLED factory warehouse with finished LED lightsContainer loading at the LOWCLED Shenzhen factoryPacked pallets ready for worldwide shipment

    Size: recessed linear downlight size

    Unit: mm

    Application:

    Recessed Linear LED spot light is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.

    LINEAR LIGHT APPLICATION 5
