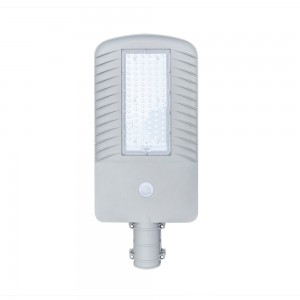

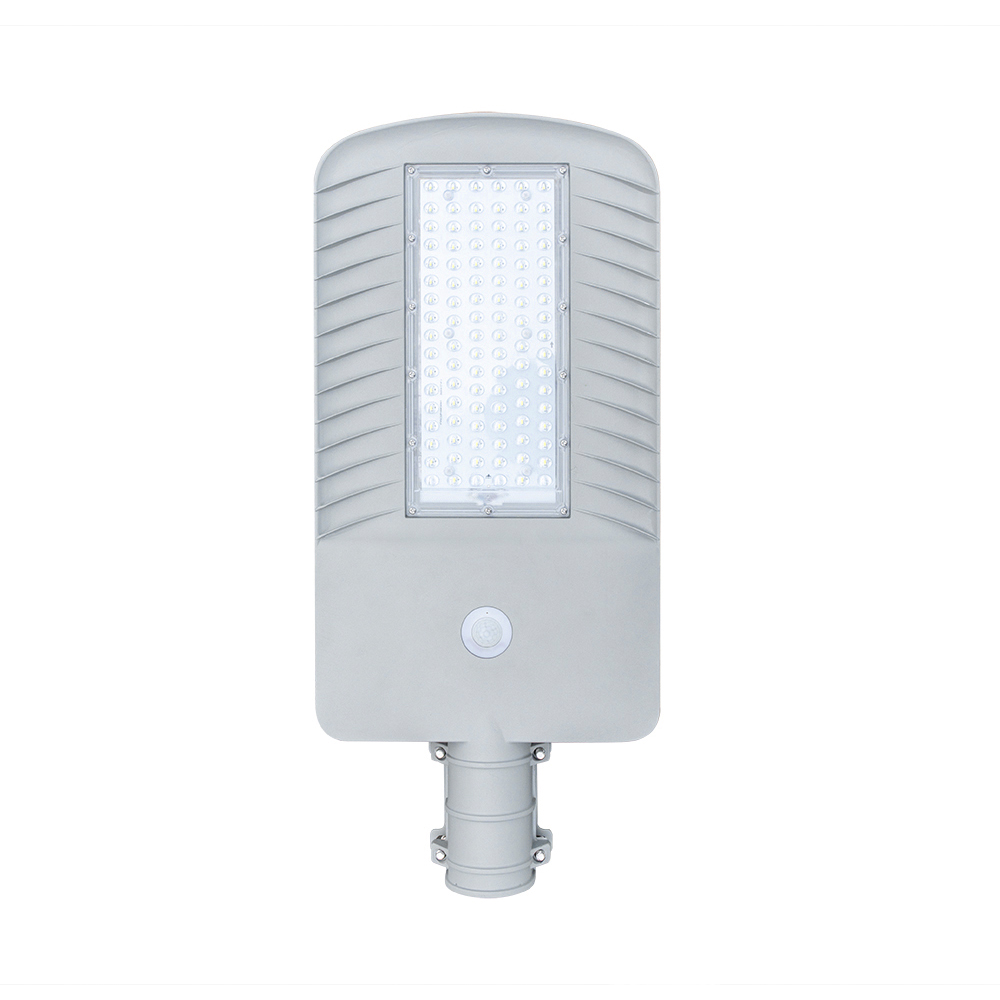

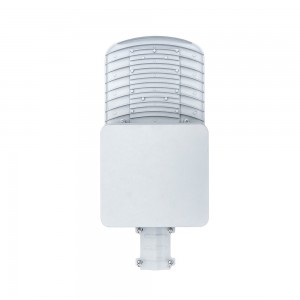

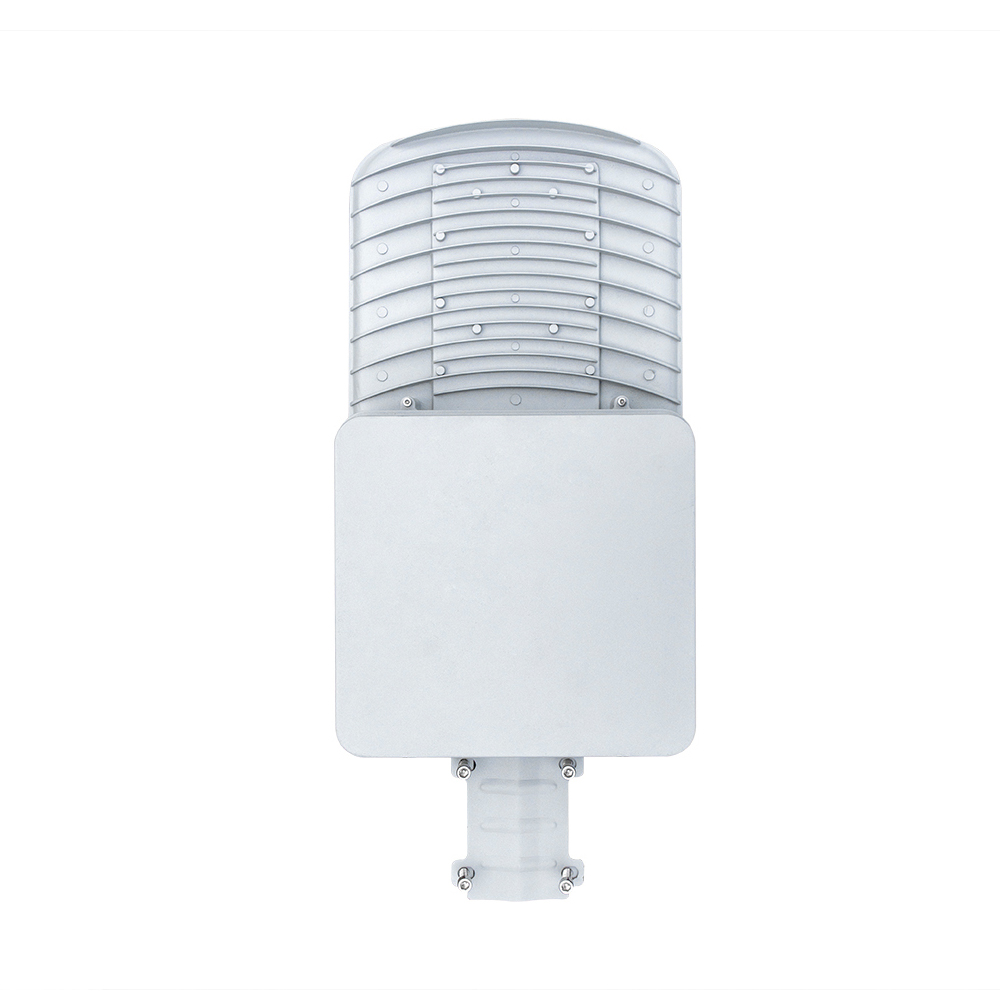

40W 2 in 1 Solar LED Street Light

Short Description:

  • High efficacy 130lm/w.

  • Brief Description: 40W Solar LED Sensor Light
  • Type: Street lights, Garden lights
  • Mounting Height: 4-6 meters
  • Net Weight: 6.2KG
  • LED Lumen: 5200-6000LM
  • Applications: gardens, streets, roads, community, parks, parking etc..
  • LED Lifespan: >50000H
  • Warranty: 2years


  • Shipping Port: Shenzhen
  • Description: Semi integrated solar LED Street Light
  • Model: LL-SMSL4-40W
  • Product Detail

    Product Tags

    Features:

    1. Based on the classic semi-integrated solar street light, this new product is a creative lighting fixture with features of elegant exterior design, die-casting aluminum housing and customized solar panel and functions of time control, light control, human infrared sensing and Bluetooth APP control.
    2. The direction adjustable solar panel maximizes the solar cell charging efficiency.
    3. It can be matched with AC adaptor and used as a LED street light supplied by commercial electricity with its special controller.
    4. With PHILIPS3030, higher brightness and less energy consumption.

    Function characteristic
    1) Infrared human body sensing: The infrared human body sensor detects whether there are pedestrians or vehicles passing under the lights, adjusts the brightness of street lights automatically. And reduces the brightness when no pedestrians pass by.

    Sensor

    2) Mobile phone Bluetooth APP control: Check the current state of street lights on the mobile phone in real time and reset various parameters of the street light.

    APP3) Time control: Set different brightness of different period of time.

    time control

    Main components

    ComponentsComponents 3

    Specification

    Model NO. LL-SMSL4-40W
    LED Chipset PHILIPS3030
    Chipset Q'ty 60PCS
    Light Efficiency 130LM/W±10LM
    Lumen 5200-6000LM
    Color Temperature 2800K-6500K
    CRI >70
    LED Lifespan 50000H
    Electrical characteristic Rated Power 40W
    Solar Panel Power 18V/35W
    Lithium Battery 11.1V /10.4AH
    Charge Time 7 Hours with summer's sunshine
    Discharging Time 3-10 rainy days, 12hours per night,Or you can set a fixed lighting time.
    Working Temparature -30℃~+60℃
    Switch Threshold 15LUX
    Max sensing Distance ≦12M
    Mechanical Specification Product Size 500x205x80MM
    Solar Panel Size 460x515x30MM
    Net Weight 6.2KG
    Mounting Height 4-6 M
    Pole Installation Distance 12-15m for one-side road lighting; 20-30m for both-side road lighting.
    Packing Information Q'ty/carton 1PCS/CTN
    Carton Size(Solar panel) 520x570x220MM
    Gross Weight 7.8KG

    Application:

    Semi-integrated solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.
    application
