10W Zoomable LED Track Light

Short Description:

  • Power: 10Watt
  • Beam angle: 15°~55° zoomable
  • Luminaire efficacy: 70-100 lm/Watt @ CRI80
  • Luminus COB LED, strong color consistancy
  • CRI>97, 90 available for 2700K, 3000K, 4000K
  • LM80 approved
  • 5years warranty

  • Shipping Port: Shenzhen
  • Model: LL-ZTRK03-10W
  • Description: Zoomable LED Track Light
  • Product Detail

    Product Tags


    1. Aluminum alloy radiator, better for heat dissipation.
    2. Cylinder body and rectangular driver box.
    3. Lifud, Boke, Tridonic, Philips or HEP flicker-free driver.
    4. Very even light distribution, high uniformity and no glare.
    5. Instant switch-on regardless of temperature or humidity.
    6. 4 wire 3 phase or 3 wire 1 phase, 2 wire 1 phase track adapter are available.
    7. High power factor and flicker free.
    8. CRI80/90/97 are for your selection.


    Product Model LL-ZTRK03-10W
    Power 10W
    Input Voltage 200-240VAC
    Chipset Luminus
    Driver Lifud flicker free driver
    Track adapter PowerGear  4-wire 3-phase
    Frequency 50/60Hz
    Luminous Efficacy 70-100lm/W @ CRI80
    Rated Luminous Flux 1000lm
    Beam Angle 15°-55°
    Total Harmonic Distortion  < 15%
    Color Temperature (CCT) 2700K / 3000K / 4000K / 5000K
    CRI 80/90/97
     IP Rating IP20
    Operating Temperature -20~+45℃
    Fixture Material 6063 brushed aluminum alloy
    PF >0.9
    Housing color Black /White
    Lifespan 50,000H
    Warranty 5years
    Product Size(D*L*H) ø65*150*139mm
    Inner box 163*65*157mm
    Net Weight/PCS 0.7KG
    Gross Weight 19.2KG/CTN
    Packing Size 520*282*340mm, 24PCS/CTN

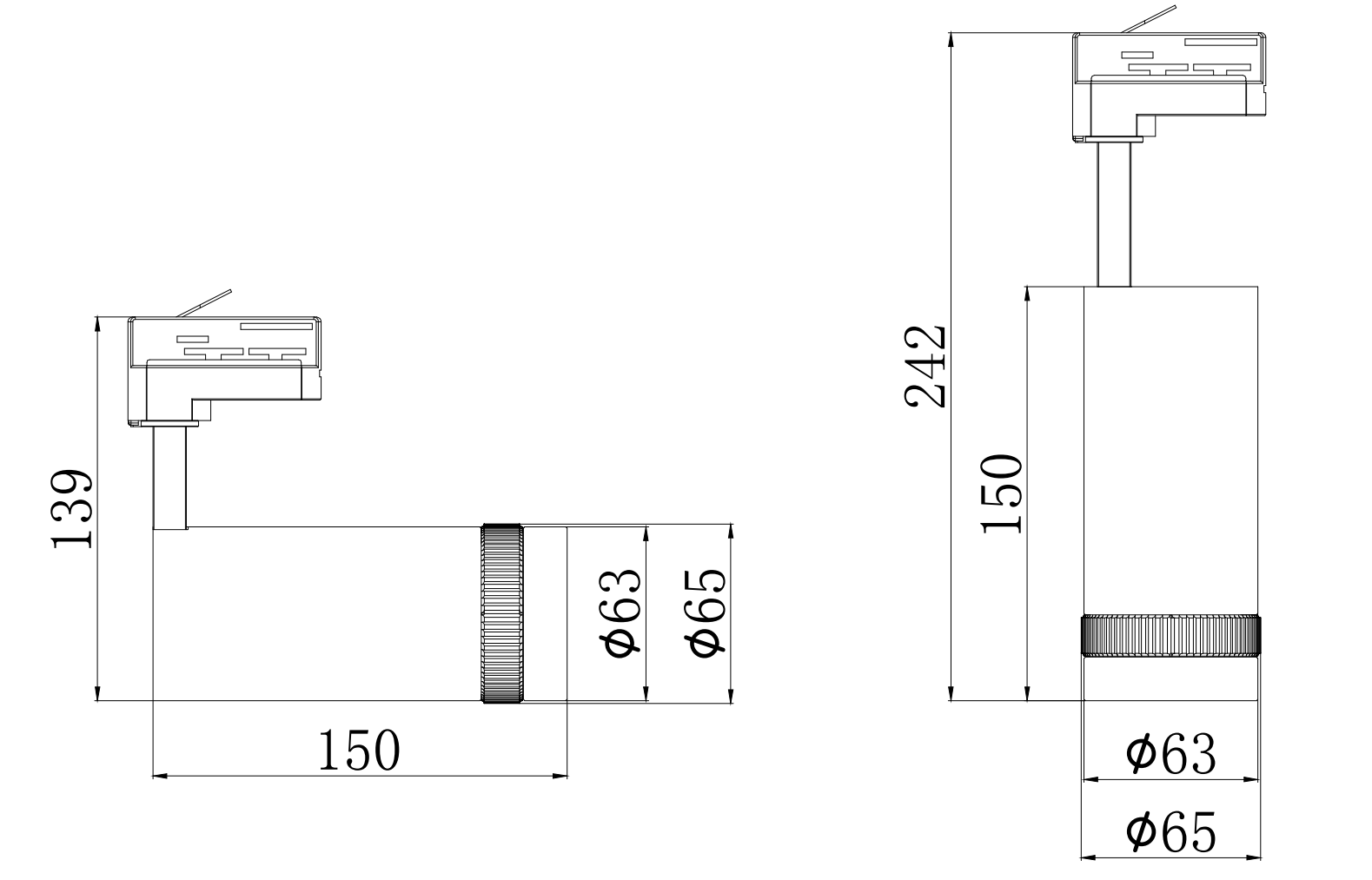

    10-15W zoomableUnit: mm

    Spectrum Distribution:

    TRK03 Spectrum Distribution 1TRK03 Spectrum Distribution 2

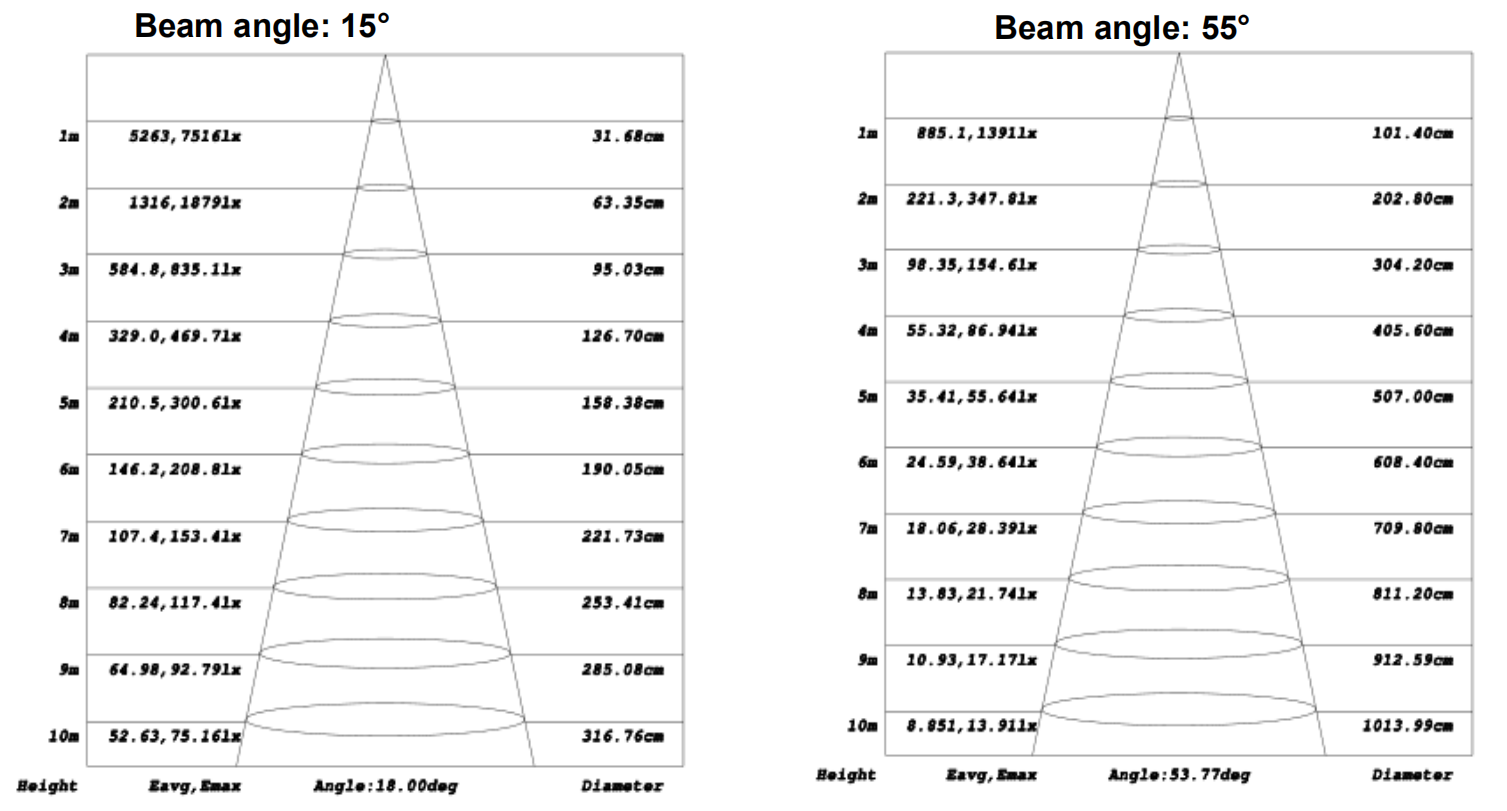

    Lumen distribution diagram & Distance curve

    10-15W light distribution


    Special counter, clothing shop, guest house, hotel, museums, art galleries, convention center and other special shop.

    track light application 1
