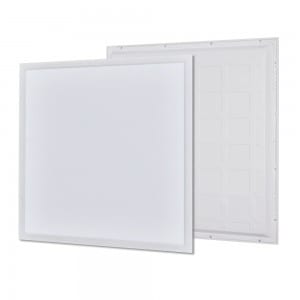

Backlit LED Panel Light

Short Description:

  • Power: 40W.
  • Lumen efficacy: 100LM/W.
  • Voltage: 200-240VAC, 50/60Hz.
  • Backlit 600*600 40W LED panel light.

  • High efficiency & energy saving. Under the condition of the same illumination. It saves more than 67% energy compared with the traditional lamp.
  • No UV & IR . It won’t distribute ray radiation.
  • Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won’t generate EMI.
  • High-performance external constant current driver, flat and smooth frame, very easy to clean.
  • Warranty: 5 years.


  • Shipping Port: Shenzhen
  • Description: 600*600 40W Backlit LED Panel Light
  • Product Detail

    Product Tags

    Features:

    1. All sides are lined with LED's to grant optimal illumination.

    2. Wide angle of deflection with even light distribution.
    3. No start-up time, no flickering, no humming.
    4. Independent LED circuit prevents complete blackout in case an LED fails.
    5. Environmentally friendly, mercury and lead free.
    6. Causes no electromagnetic interference.
    7. Over 50'000 hours life expectancy.

    Specification

    Model LL-ZPL-595X595-40W-001
    Power(±10%) 40W
    Input(Frequency) AC 220-240V(50/60Hz)
    Lumen 4000lm
    Input Current 0.2A
    Output Voltage DC30-40V
    Output Current 9600mA
    PF >0.9
    LED Type SMD2835
    CCT(K) 3000K / 4000K / 6000K
    CIR(Ra) ≥80
    Beam angle 120°
    Working Temperature -20℃~40℃
    Storage Temperature -30℃~60℃
    Life span of Light Source ≧50000 H
    IP Grade IP40
    Body Materials PP+Aluminum
    Product Dimension 595*595*30mm
    Carton Size 690*265*640mm(5pcs)
    Gross Weight 14.5 kg (5pcs)

    Size:

    backlit led panel light size

    Unit: mm

    Application:

    • Direct replacement for luminaires with 6x8 W fluorescent lamps
    • Corridors
    • Offices
    • Conference rooms
    • Reception areas
    • Foyers
    • Elevators
    • Suitable for recessed ceiling systems with grid size of 595x595 or 600x600 mm

    Backlit LED PANEL LIGHT APPLICATION
