Small recessed square 9W LED ceiling lamp 9watt pendent light

Short Description:

  • High efficiency & energy saving. Under the condition of the same illumination, it saves more than 67% energy compared with the traditional lamp.
  • No UV & IR . It won’t distribute ray radiation.
  • Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won’t generate EMI.
  • High-performance external constant current driver, flat and smooth frame, very easy to clean.


  • Shipping Port: Shenzhen

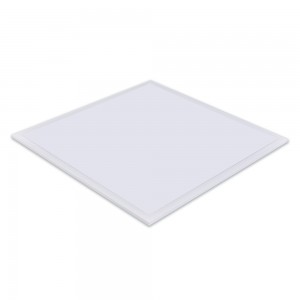

  • Description: Recessed square 9W LED Panel Light
  • Product Detail

    Product Tags

    Features:

    1. Led panel uses aerometal shell, very simple and fashionable.

    2. Different sprayed colors available for your choice.
    3. It takes high brightness led lamp, side-emitting design,ultra thin height.
    4. Use constant current driver. No flicker, no glare, very soft and even light.
    5. High light efficiency, low power consumption, save much energy.
    6. Lift time could reach 50,000 hrs.
    7. Easily embedded installation.

    Specification:

    Model LL-PL-S150
    Power(±10%) 9W
    Product Dimension 150*150*12mm
    Cut size 135*135mm
    Input(Frequency) AC 100-240V(50/60Hz)     (AC110v/220v For dimmable)
    Lumen 630LM
    Luminous Efficiency >75LM/W
    Input Current 0.12A
    Output Voltage DC25-40V
    Output Current 280mA
    PF >0.9
    LED Type SMD2835
    CCT(K) 3000K / 4000K / 6000K
    CIR(Ra) ≥80
    Beam angle 110°
    Working Temperature -20℃~45℃
    Function Options Non-dimmable and Dimmable available
    Life span of Light Source ≧50000 H
    IP Grade IP20
    Body Materials Aluminum Alloy
    Mounting Recessed
    Carton Size 390*350*390mm(40pcs)
    Gross Weight 15 kg (40pcs)


    Application:

    LED panel light is used for place of Hotel, meeting room, factory, office, bar, coffee house, residential, show room, Institution Buildings, School, hospital, Places where there require high rendering index and energy-saving lighting fixtures.

    Backlit LED PANEL LIGHT APPLICATION
