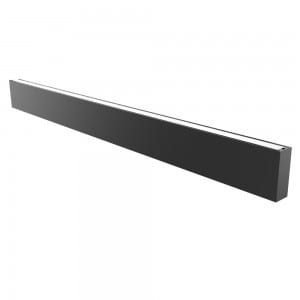

DL90 LED Linear Surface Mounted Downlight 1200mm Trimless

Short Description:

Up and down lighting, LED linear light.
UGR<19.
High efficiency & energy saving.
No UV & IR . It won’t distribute ray radiation.
Eco-friendly, No Hg & Xe, or other harmful element.
Recyclable, also it won’t generate EMI.
5 years warranty

Shipping Port: Shenzhen

Description: Up and down lighting

Model: LL-DL90-10-F / LL-DL90-12-F / LL-DL90-15-F

Send email to us

Product Detail

Product Tags

Features:

Original Osram chipset.
It takes high brightness led lamp.
Use constant current driver. No flicker, no glare, very soft and even light.
High light efficiency, low power consumption, save much energy.
Lift time could reach 50,000 hrs.
Easily installation.

Specification

Model	LL-DL90-10-F	LL-DL90-12-F	LL-DL90-15-F
Power（±10%）	15/30W	15/40W	15/50W
Product Dimension	W35H90.6L1000mm	W35H90.6L1200mm	W35H90.6L1500mm
Input(Frequency)	AC 220-240V（50/60Hz）
Lumen	975lm/2700lm	975lm/3600lm	975lm/4500lm
Luminous Efficacy	UP: 65lm/w Down: 90lm/w	UP: 65lm/w Down: 90lm/w	UP: 65lm/w Down: 90lm/w
PF	>0.9
LED Type & Q‘ty(up)	70pcs OSRAM SMD 2835 15W	84pcs OSRAM SMD 2835 15W	98pcs OSRAM SMD 2835 15W
LED Type & Q‘ty(down)	140pcs OSRAM SMD2835 30W	196pcs SMD2835 40W	224pcs OSRAM SMD2835 50W
CCT(K)	3000K / 4000K / 6000K
CIR(Ra)	≥80
Beam angle	100°
Working Temperature	-30℃～45℃
Storage Temperature	-40℃～70℃
LED Driver	OSRAM X-power / Lifud
Life span of Light Source	≧50000 H(Ta=30°C@L70)
IP Grade	IP40
Body Materials	Aluminum Alloy + PMMA
Certificate	CE, Rohs

Purchase information:

Key specifications: 15/30 W · 975 lm/2700 lm · IP40 · 100° · 3000K / 4000K / 6000K · ≥ 50000 H(Ta=30°C@L70).

Model	LL-DL90-10-F
Warranty	3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

Size:

Unit: mm

Application:

LED Linear Light is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
