1M 30W 40W LED Linear Spot Light DL76 1000mm led linear lighting fixture for office and

Short Description:

LED linear light.
UGR<19.
High efficiency & energy saving.
No UV & IR . It won’t distribute ray radiation.
Eco-friendly, No Hg & Xe, or other harmful element.
Recyclable, also it won’t generate EMI.
5 years warranty

Shipping Port: Shenzhen

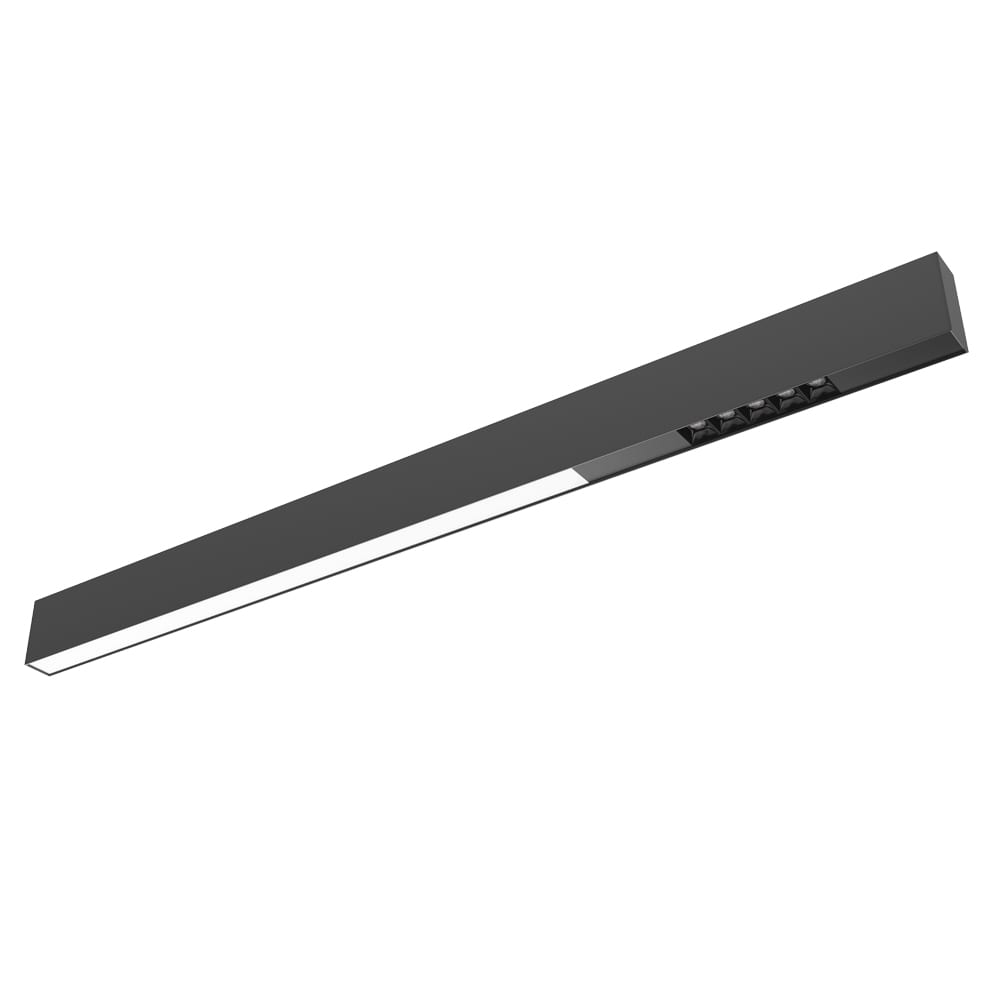

Description: LED Linear Spot Light

Model: LL-DL76-10-1F / LL-DL76-12-1F / LL-DL76-15-1F

Send email to us

Product Detail

Product Tags

Features:

Original CREE+Osram chipset.
It takes high brightness led lamp.
Use constant current driver. No flicker, no glare, very soft and even light.
High light efficiency, low power consumption, save much energy.
Lift time could reach 50,000 hrs.
Easily embedded installation.

Specification

Model	LL-DL76-10-1F	LL-DL76-12-1F	LL-DL76-15-1F
Power（±10%）	10/20W	10/30W	10/40W
Input(Frequency)	AC 220-240V（50/60Hz）
Product Dimension	W35H75.6L1000mm	W35H75.6L1200mm	W35H75.6L1500mm
Lumen	650/1300lm	650/1950lm	650/2600lm
Luminous Efficacy	65lm/w	65lm/w	65lm/w
PF	>0.9
LED Type&Q‘ty	5pcs CREE XTE 10W + 98pcs SMD2835 20W	5pcs CREE XTE 10W + 140pcs SMD2835 30W	5pcs CREE XTE 10W + 196pcs Osram SMD2835 40W
CCT(K)	3000K / 4000K / 6000K
CIR(Ra)	≥80
Beam angle	10° 24° 36° 48° +100°
Working Temperature	-30℃～45℃
Storage Temperature	-40℃～70℃
LED Driver	OSRAM X-power / Lifud
Life span of Light Source	≧50000 H(Ta=30°C@L70)
IP Grade	IP40
Body Materials	Aluminum Alloy + PMMA
Certificate	CE, Rohs

Purchase information:

Key specifications: 10/20 W · 650/1300 lm · IP40 · 10° 24° 36° 48° +100° · 3000K / 4000K / 6000K · ≥ 50000 H(Ta=30°C@L70).

Model	LL-DL76-10-1F
Warranty	3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

Size:

Unit: mm

Application:

LED Linear Spot Light is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
