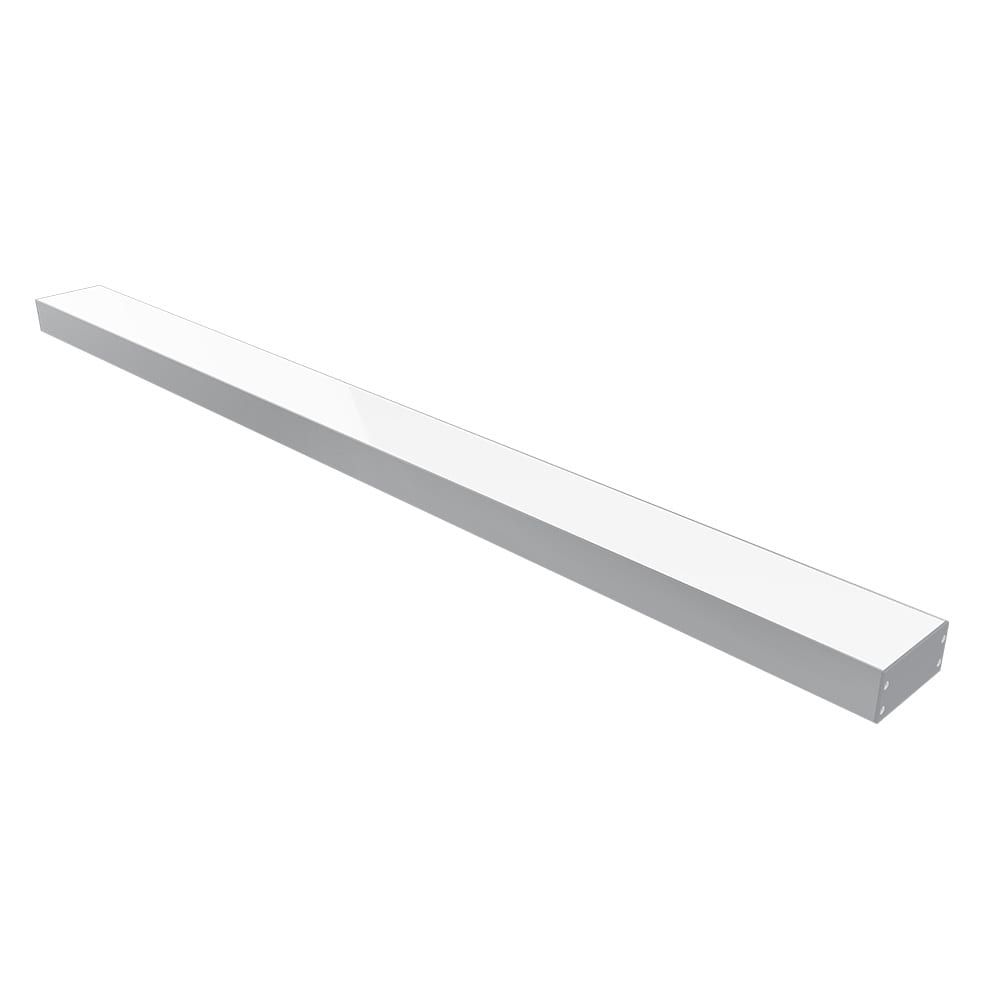

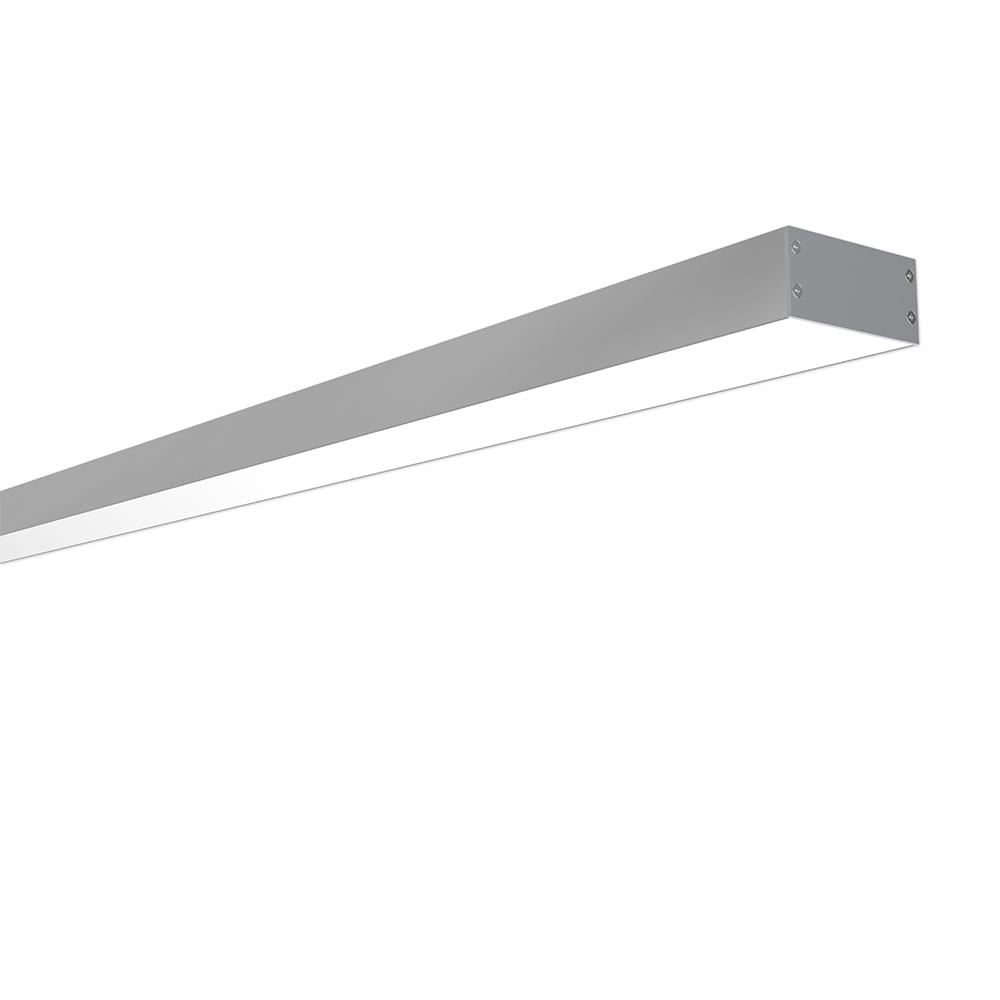

L7535 LED Linear Light

Short Description:

Power: 40W/50W/60W
Length: 1000mm/1200mm/1500mm
CCT: 3000K, 4000K,6000K
CRI > Ra80
Beam Angle:110°
Input Voltage:100-277VAC
Total Harmonic Distortion : <20%
Life Span: >50000Hrs(Ta=30°C@L70)
Operating Temperature : -30~+45°C
Storage Temperature : -40~+70°C
Junction Temperature(Tj) : <70°C(Ta=30°C)
3 types installation method: ceiling mounted type, suspended type and embedded type

Shipping Port: Shenzhen

Description: L7535 LED Linear Light

Send email to us

Product Detail

Product Tags

Features

LED linear light is exclusively designed for designer and architect with imagination and personal style. LED linear light adopts premium aluminum profile, different dimension and size. Different customized dimensions are also acceptable, which can meet installation requirement of different fields and occasions. Optional mounting solutions available include recessed, suspended and surface mount to match different lighting demands.

Specification

Model	Power	Input Voltage	CCT	LED	LED Q'ty	LM/W	Beam angle	Ra	PF	Warranty	Size
LL-L7535-02	40W	200-240VAC	2700K-6500K	SMD2835	288pcs	80lm/W	110°	>80	>0.9	3 years	75351000mm
	50W	200-240VAC	2700K-6500K	SMD2835	360pcs	80lm/W	110°	>80	>0.9	3 years	75351200mm
	60W	200-240VAC	2700K-6500K	SMD2835	432pcs	80lm/W	110°	>80	>0.9	3 years	75351500mm
LL-L7535-03	40W	100-277VAC	2700K-6500K	SMD2835	288pcs	80lm/W	110°	>80	>0.9	5 years	75351000mm
	50W	100-277VAC	2700K-6500K	SMD2835	360pcs	80lm/W	110°	>80	>0.9	5 years	75351200mm
	60W	100-277VAC	2700K-6500K	SMD2835	432pcs	80lm/W	110°	>80	>0.9	5 years	75351500mm

Purchase information:

Key specifications: 40 W / 200-240VAC / 100-277VAC · 80 lm/W / 110° · 110° / >80 · 2700K-6500K / SMD2835.

Model	LL-L7535-02 / 50W / 60W / LL-L7535-03
Warranty	3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting
Samples	Available for testing before bulk orders; shipped door to door by DHL, UPS, FedEx or EMS
Payment	T/T, 40% deposit and balance before shipment; Western Union for sample orders under US$1,000
MOQ / lead time	Quoted per model and configuration — email [email protected]

Specifications above come from this model's datasheet. Certificates: see the certificate list (CE, RoHS). Purchase terms: see the purchase FAQ.

Frequently asked questions:

What is the MOQ for this model?
MOQ is quoted per model and configuration. Send your target quantity to [email protected] and we confirm the exact MOQ together with the quotation, usually within one working day.

What is the lead time?
Sample orders are usually dispatched within a few working days. Bulk lead time depends on quantity and configuration and is confirmed in the quotation.

Which certificates do you provide?
CE and RoHS as standard. LM-79 photometric reports are available for most high-wattage models, and LM-80 data for the LEDs used.

What warranty applies to this product?
3-5 years for indoor lighting (panel, downlight, track, tube); 5-7 years for outdoor lighting.

Can you customize this product (OEM / ODM)?
Yes. Custom wattage, CCT, beam angle, housing colour, logo and packaging are available. Send your specification to [email protected] and we reply within 12 hours.

Application
LED Linear Light is widely used in kitchens, offices, hallways, corridors, foyers, bedrooms, closets, utility work areas etc.
