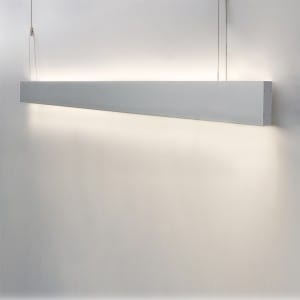

L3583 Up and down LED Linear Light

Short Description:

  • Up and down illumination

  • Power: 30W/40W/60W
  • Length: 1000mm/1200mm/2000mm/2400mm
  • CCT: 3000K, 4000K,6000K
  • CRI> Ra80
  • Beam Angle:120°
  • Wall mounting bracket available
  • Input Voltage:100-265VAC
  • Total Harmonic Distortion : <20%
  • Life Span: >50000Hrs(Ta=30°C@L70)
  • Operating Temperature : -30~+45°C
  • Storage Temperature : -40~+70°C
  • Junction Temperature(Tj) : <70°C(Ta=30°C)
  • Even illumination – no spots
  • Custom made lengths
  • Rod suspended or wire suspended
  • Optional screwless end caps


  • Shipping Port: Shenzhen
  • Description: L3583 Up and down LED Linear Light
  • Product Detail

    Product Tags

    Features

    Simple and elegant exterior design, dimming function.

    Super bright LED as light source, long service life.

    Light body use aluminum with good thermal conductivity, providing a guarantee for the lamp to work long hours.

    The fixed LED linear lamp series often mounted on the wall or cabinets.

    Our LED linear light passed the CE, Rohs, GS test.

    Normally length for the linear lamp is 1000mm, 1200mm, 2000mm or 2400mm. Customized size is acceptable.

    This up and down linear LED light is ideal for applications such as kitchens, offices, hallways, corridors, foyers, bedrooms, closets, utility work areas and more.

    With a sleek design, and a 50,000 hours maintenance-free LED life, LOWCLED L series linear light offers the perfect balance of style and reliability.

    Specification

    Model Power Input Voltage CCT LED LED Q'ty Lumen Beam angle Ra PF Warranty Size
    LL-L3583-01 30W 200-240VAC 2700K-6500K SMD2835 192pcs 1700LM±10% 120° >80 >0.9 3years 35*83*1000mm
    30W 200-240VAC 2700K-6500K SMD2835 240pcs 2200LM±10% 120° >80 >0.9 3years 35*83*1200mm
    60W 200-240VAC 2700K-6500K SMD2835 384pcs 3250LM±10% 120° >80 >0.9 3years 35*83*2000mm
    60W 200-240VAC 2700K-6500K SMD2835 480pcs 4250LM±10% 120° >80 >0.9 3years 35*83*2400mm
    LL-L3583-02 30W 100-240VAC 2700K-6500K SMD2835 288pcs 2650LM±10% 120° >80 >0.9 3years 35*83*1000mm
    40W 100-240VAC 2700K-6500K SMD2835 324pcs 3250LM±10% 120° >80 >0.9 3years 35*83*1200mm
    54W 100-240VAC 2700K-6500K SMD2835 384pcs 4250LM±10% 120° >80 >0.9 3years 35*83*2000mm
    60W 100-240VAC 2700K-6500K SMD2835 384pcs 5050LM±10% 120° >80 >0.9 3years 35*83*2400mm

    Application
    Up and down LED Linear Light is widely used i
    n kitchens, offices, hallways, corridors, foyers, bedrooms, closets, utility work areas etc.
    led linear lights application
