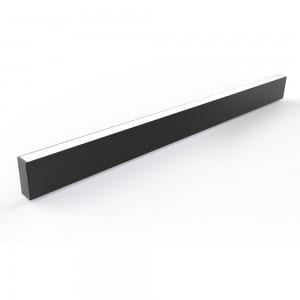

L8080 LED Linear Lighting

Short Description:

  • Power: 40W/45W/50W

  • Luminous Flux: 4000LM/4500LM/5000LM
  • Length: 1000mm/1200mm/1500mm
  • CCT: 3000K, 4000K, 6000K
  • CRI > Ra80
  • Beam Angle:200°
  • Input Voltage:100-277VAC
  • Total Harmonic Distortion : <20%
  • Life Span: >50000Hrs(Ta=30°C@L70)
  • Operating Temperature : -30~+45°C
  • Storage Temperature : -40~+70°C
  • Junction Temperature(Tj) : <70°C(Ta=30°C)


  • Shipping Port: Shenzhen
  • Description: L8080 LED Linear Light
  • Product Detail

    Product Tags

    Features

    LOWCLED LED linear light L series is exclusively design for designer and architect with imagination and personal style. More exquisite than regular T8 LED tubes. Easy installation and maintenance. Customized dimension are available. Up to 96 lumens per watt and up to 1500 lumens per foot.

    PC cover: Adopt top quality material imported from Germany and Japan, no hazardous substance, special optical design to make light more nature and no glare.

    ALUMINUM: Light body adopt aviation grade aluminum, light and  durable, environment-friendly, fastness, surface covered with membranae , avoid scratch, oxidation resistance, no deformation.

    SMD2835 LED: The led light source have passed LM80 test, long lasting lifespan, consistence color and brightness. patent light  recipe, can better restore the color of the object.

    Specification

    Model Power Input Voltage CCT LED LED Q'ty LM/W Beam angle Ra PF Warranty Size
    LL-L6060-01 30W 100-240VAC 2700K-6500K SMD2835 252pcs 100LM/W 200° >80 >0.9 5years ø60*1000mm
    40W 100-240VAC 2700K-6500K SMD2835 360pcs 100LM/W 200° >80 >0.9 5years ø60*1200mm
    50W 100-240VAC 2700K-6500K SMD2835 432pcs 100LM/W 200° >80 >0.9 5years ø60*1500mm
    LL-L6060-02 30W 220-240VAC 2700K-6500K SMD2835 252pcs 100LM/W 200° >80 >0.9 3years ø60*1000mm
    40W 220-240VAC 2700K-6500K SMD2835 360pcs 100LM/W 200° >80 >0.9 3years ø60*1200mm
    50W 220-240VAC 2700K-6500K SMD2835 432pcs 100LM/W 200° >80 >0.9 3years ø60*1500mm

    Application
    LED Linear Light is widely used i
    commercial and domestic lighting, such as office, hotel, mall, etc.
    led linear light application
